Measurement Method

Connect the oscilloscope special patterns pick-up to the generator "B" terminal.

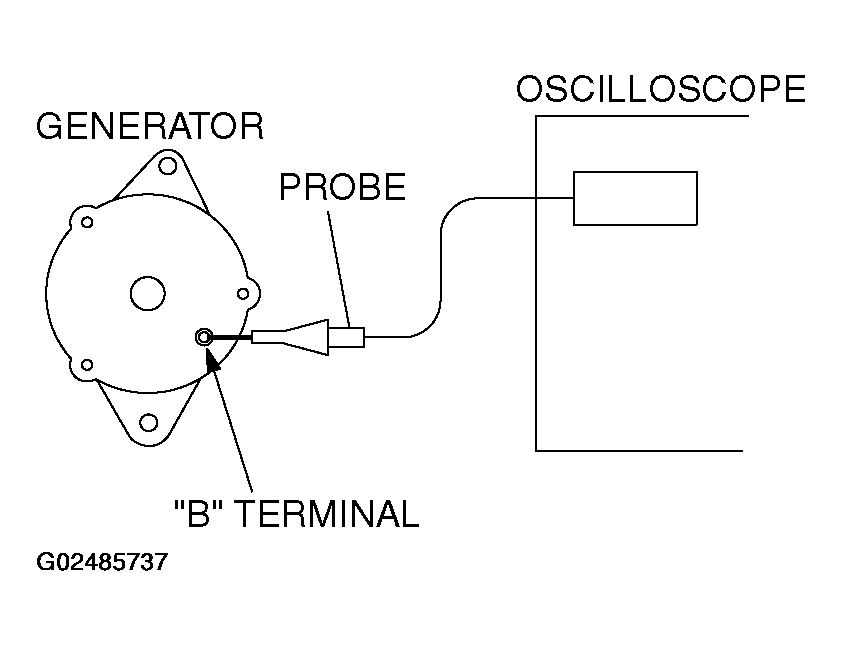

Fig 1: Connecting Oscilloscope Special Patterns Pick-Up To Generator "B" Terminal
G02485737Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
