Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Control Units (1 Of 11)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Control Units (2 Of 11)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Control Units (3 Of 11)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Control Units (4 Of 11)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 5: Control Units (5 Of 11)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 6: Control Units (6 Of 11)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 7: Control Units (7 Of 11)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 8: Control Units (8 Of 11)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 9: Control Units (9 Of 11)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 10: Control Units (10 Of 11)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 11: Control Units (11 Of 11)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

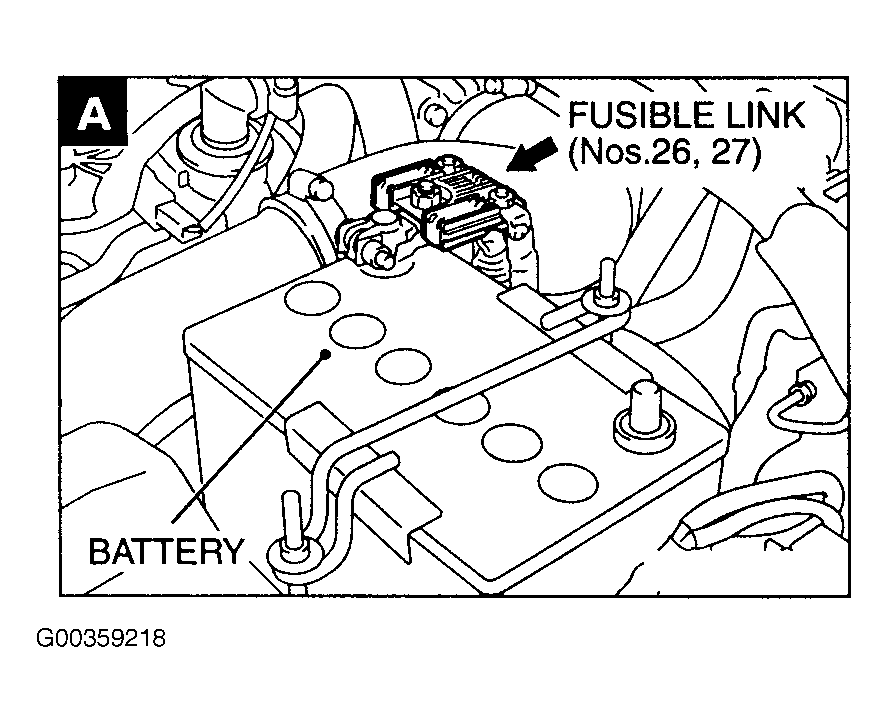

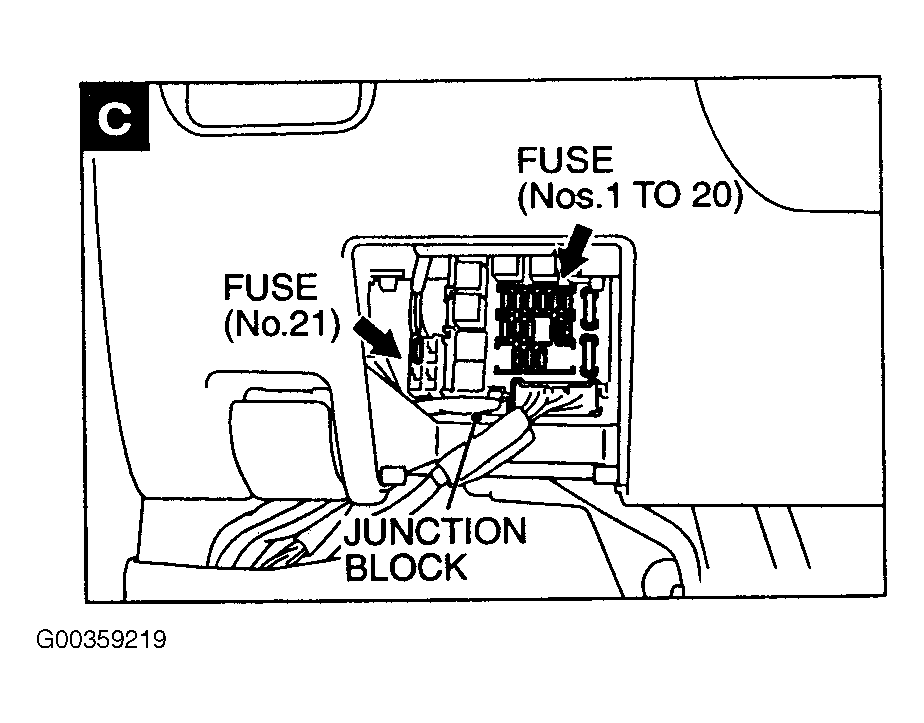

Fig 12: Fusible Links (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 13: Fusible Links (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 14: Fusible Links (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 15: Fusible Links (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 16: Ground Views (1 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 17: Ground Views (2 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 18: Ground Views (3 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 19: Ground Views (4 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 20: Ground Views (5 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 21: Ground Views (6 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 22: Ground Views (7 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 23: Ground Views (8 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 24: Ground Views (9 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 25: Ground Views (10 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 26: Ground Views (11 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 27: Ground Views (12 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 28: Ground Views (13 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 29: Ground Views (14 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 30: Ground Views (15 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 31: Ground Views (16 Of 16)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 32: Rear Of Engine Compartment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 33: Inspection Terminal (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 34: Inspection Terminal (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 35: Engine Overview (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 36: Engine Overview (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 37: Engine Overview (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 38: Engine Overview (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

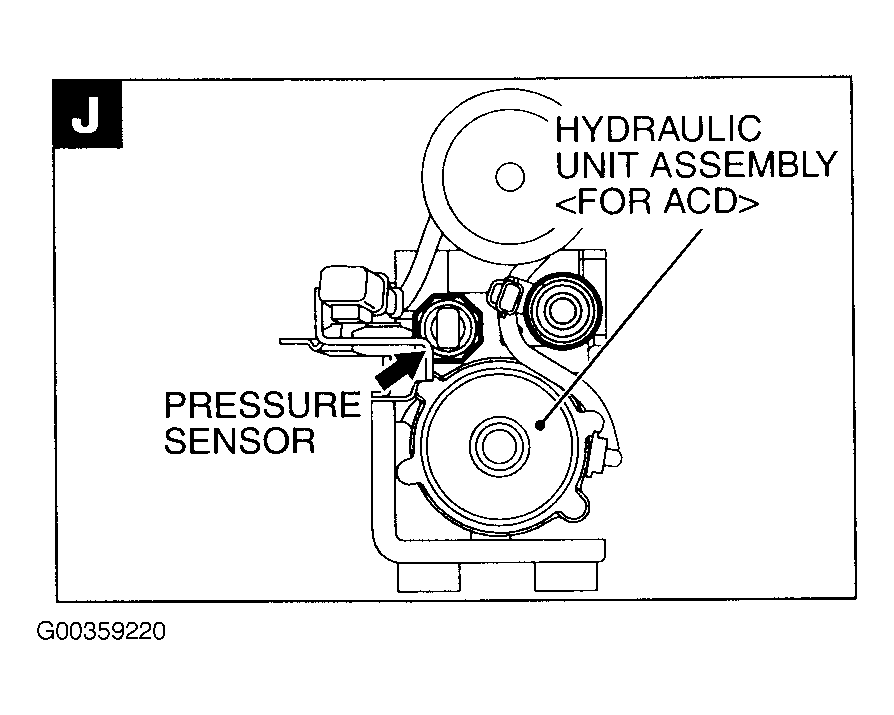

Fig 39: Sensors (1 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 40: Sensors (2 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 41: Sensors (3 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 42: Sensors (4 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 43: Sensors (5 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 44: Sensors (6 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 45: Sensors (7 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 46: Sensors (8 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 47: Sensors (9 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 48: Sensors (10 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 49: Sensors (11 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 50: Sensors (12 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 51: Sensors (13 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 52: Sensors (14 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 53: Sensors (15 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 54: Sensors (16 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 55: Sensors (17 Of 17)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

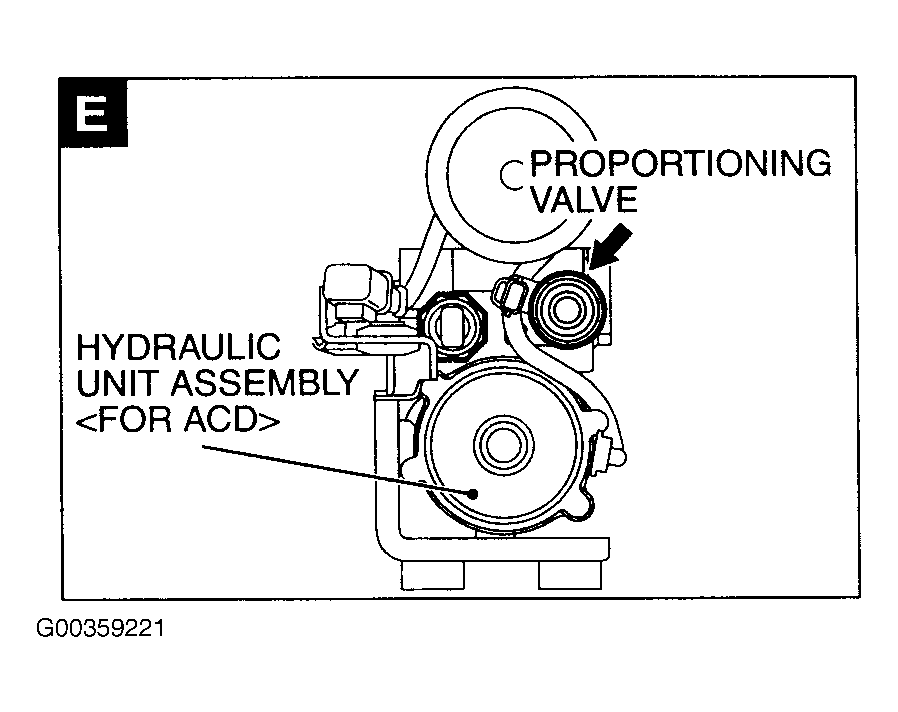

Fig 56: Solenoids & Solenoid Valves (1 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 57: Solenoids & Solenoid Valves (2 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 58: Solenoids & Solenoid Valves (3 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 59: Solenoids & Solenoid Valves (4 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 60: Solenoids & Solenoid Valves (5 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 61: Solenoids & Solenoid Valves (6 Of 6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

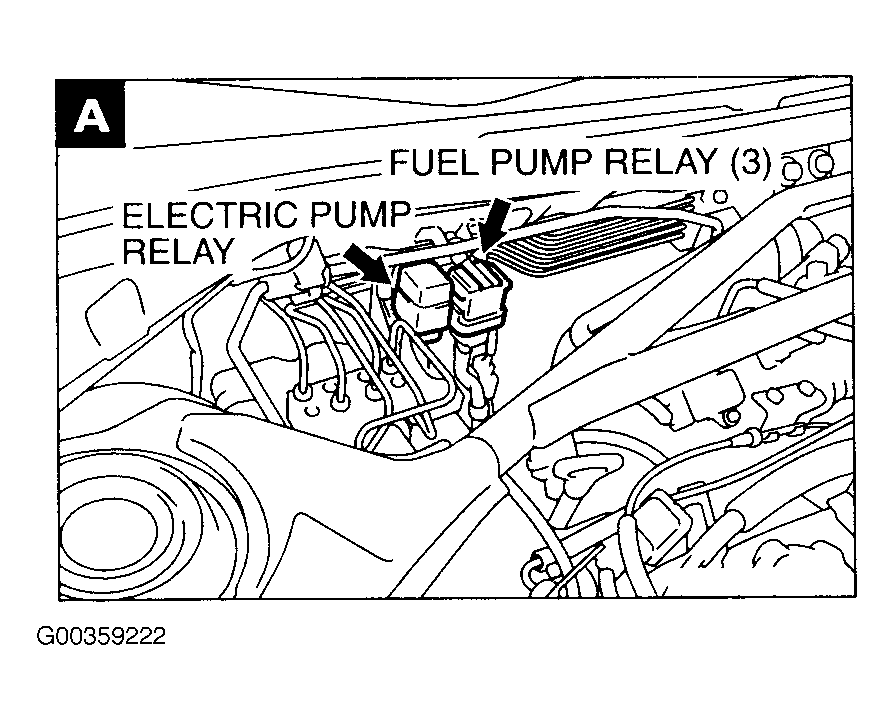

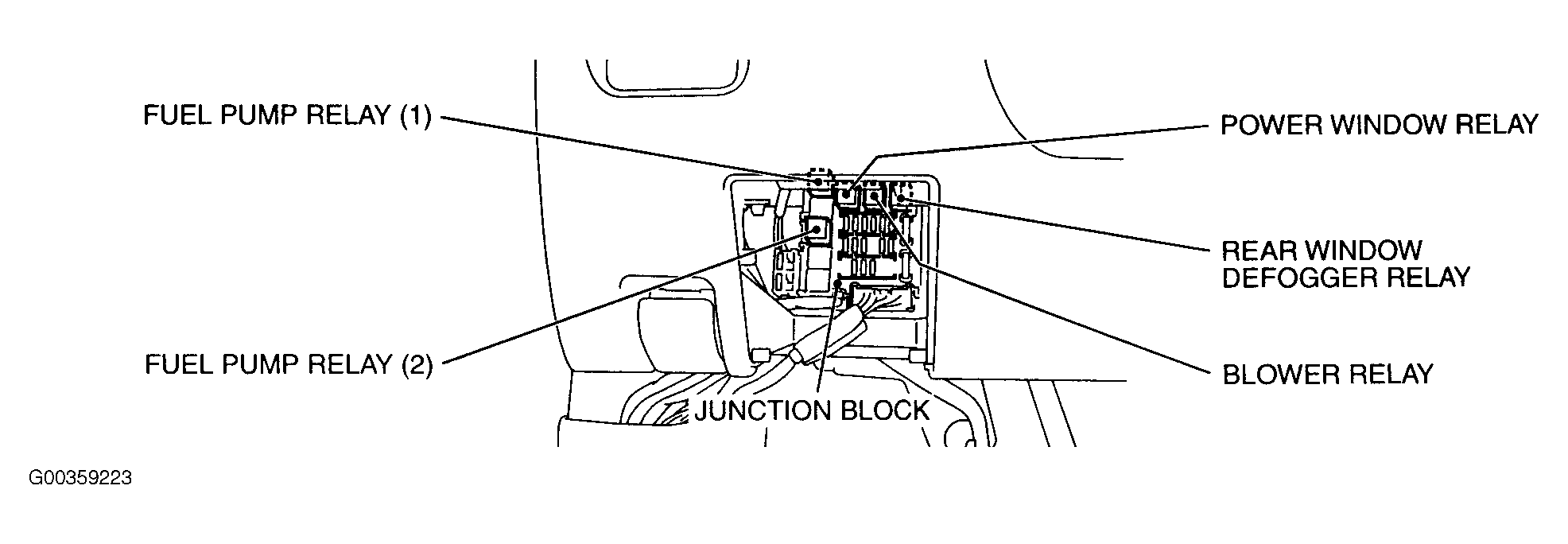

Fig 62: Relays (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 63: Relays (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 64: Relays (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 65: Luggage Compartment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 66: Floor & Roof
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

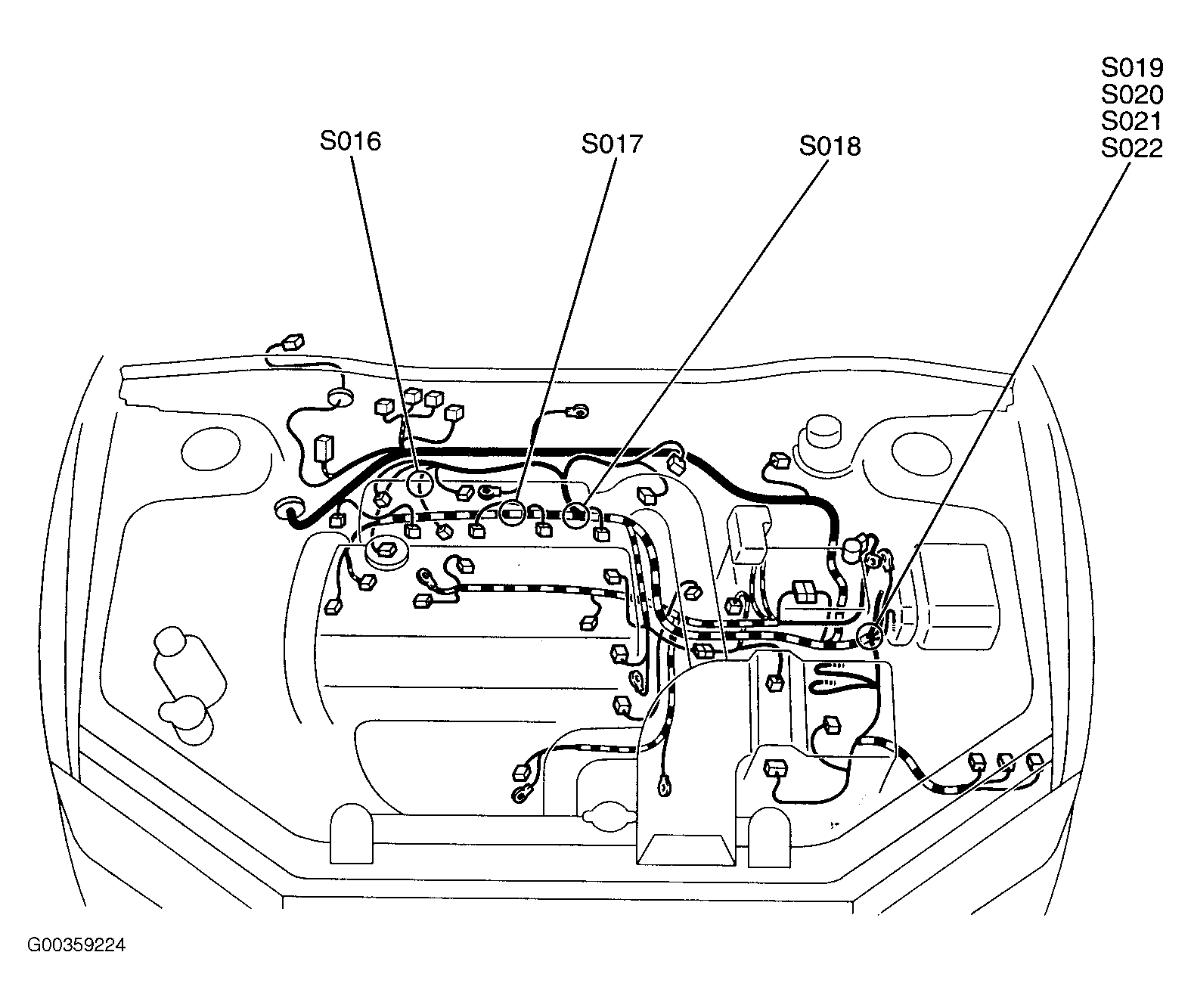

Fig 67: Engine Compartment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 68: Engine & Transaxle
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 69: Front Door (Driver's Side)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

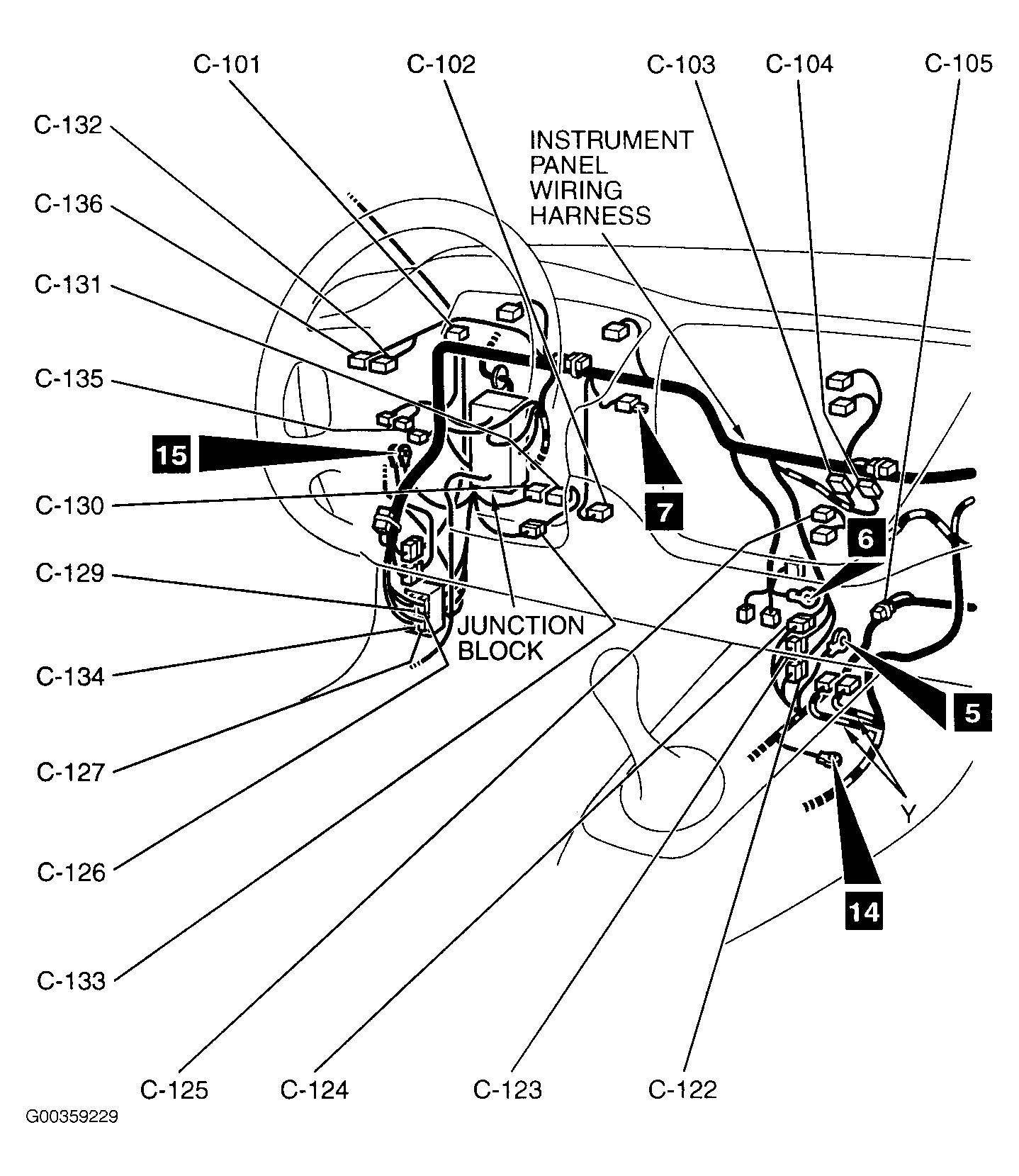

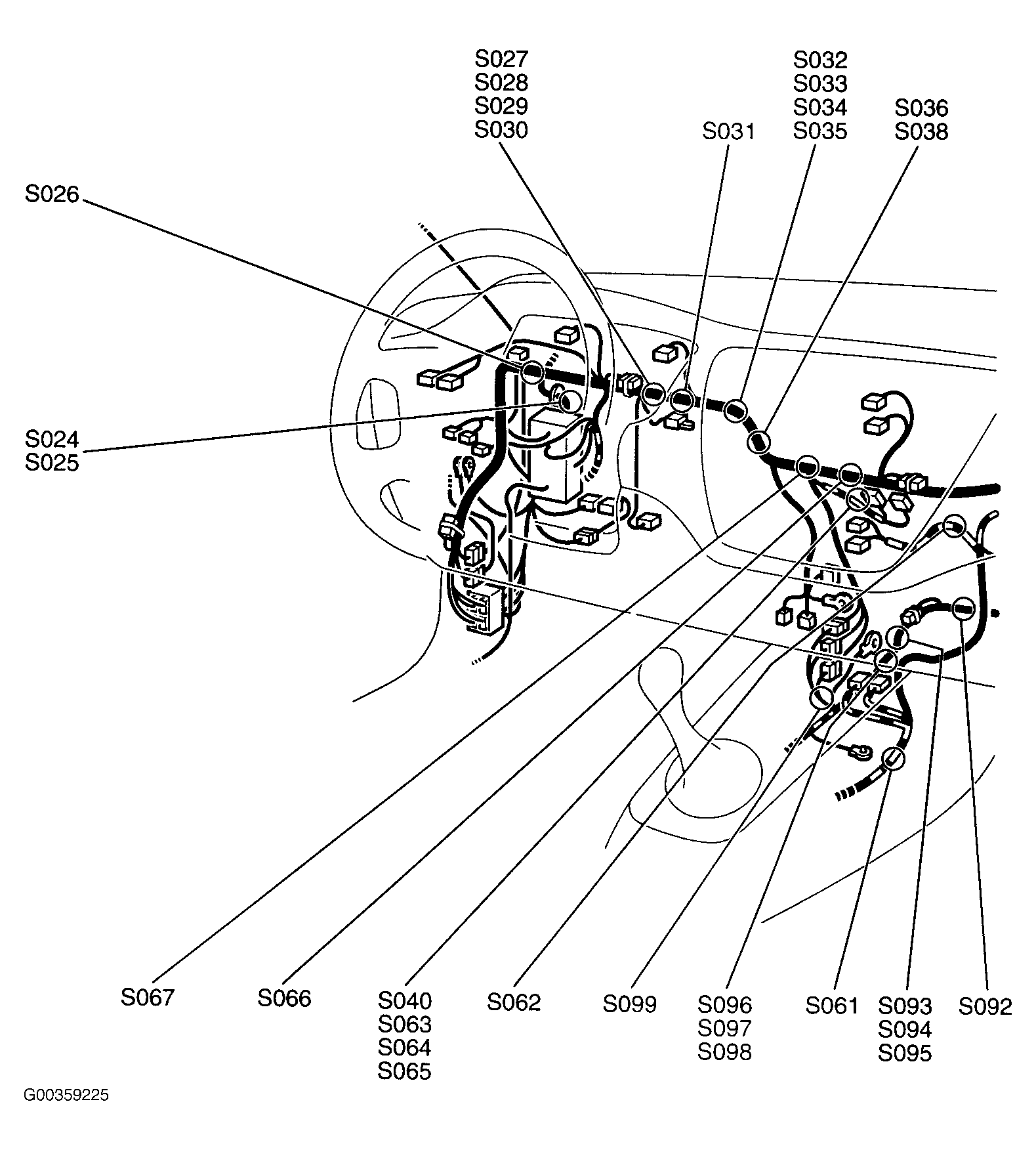

Fig 70: Dash (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

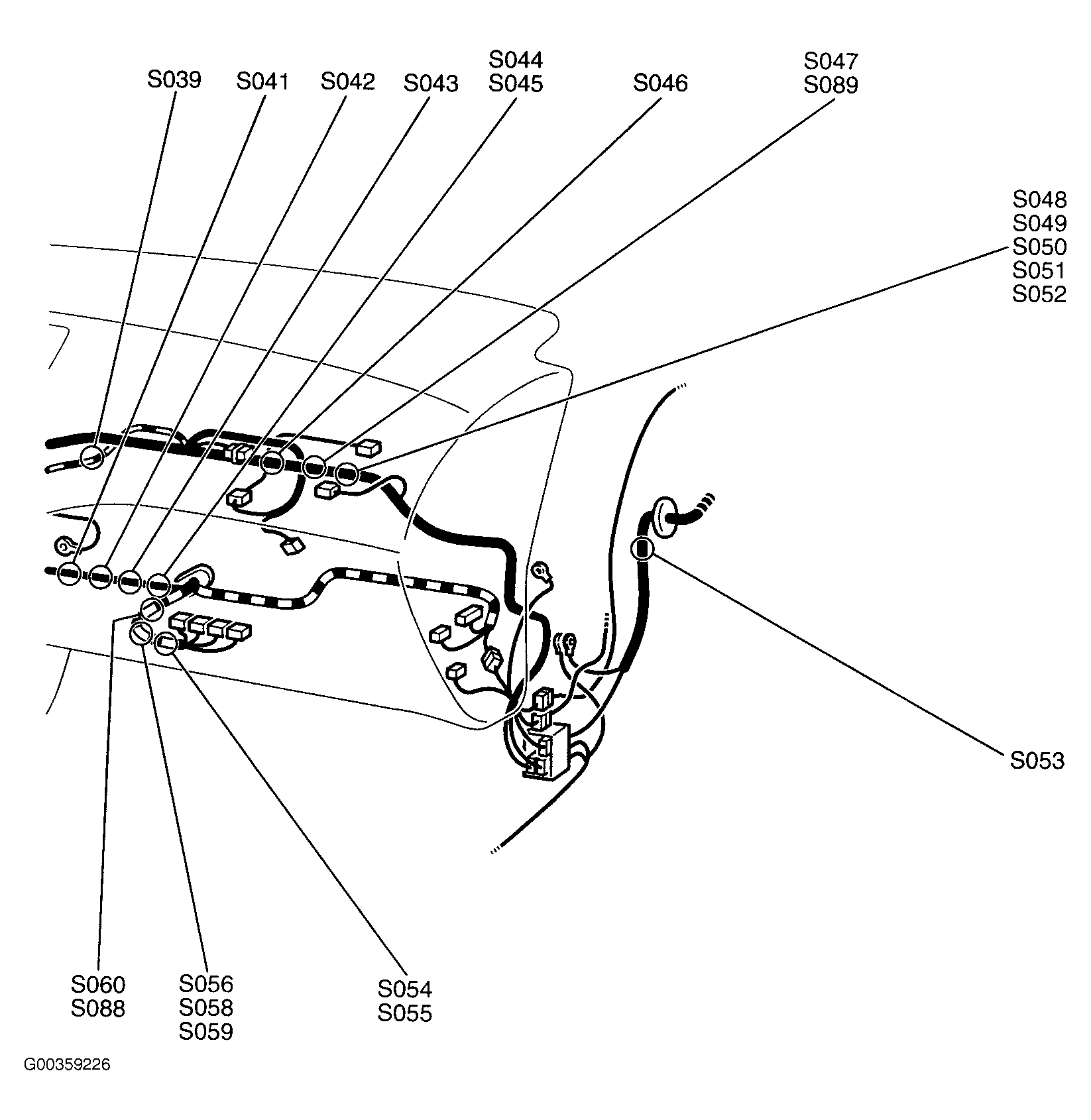

Fig 71: Dash (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 72: Luggage Compartment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 73: Floor & Roof
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

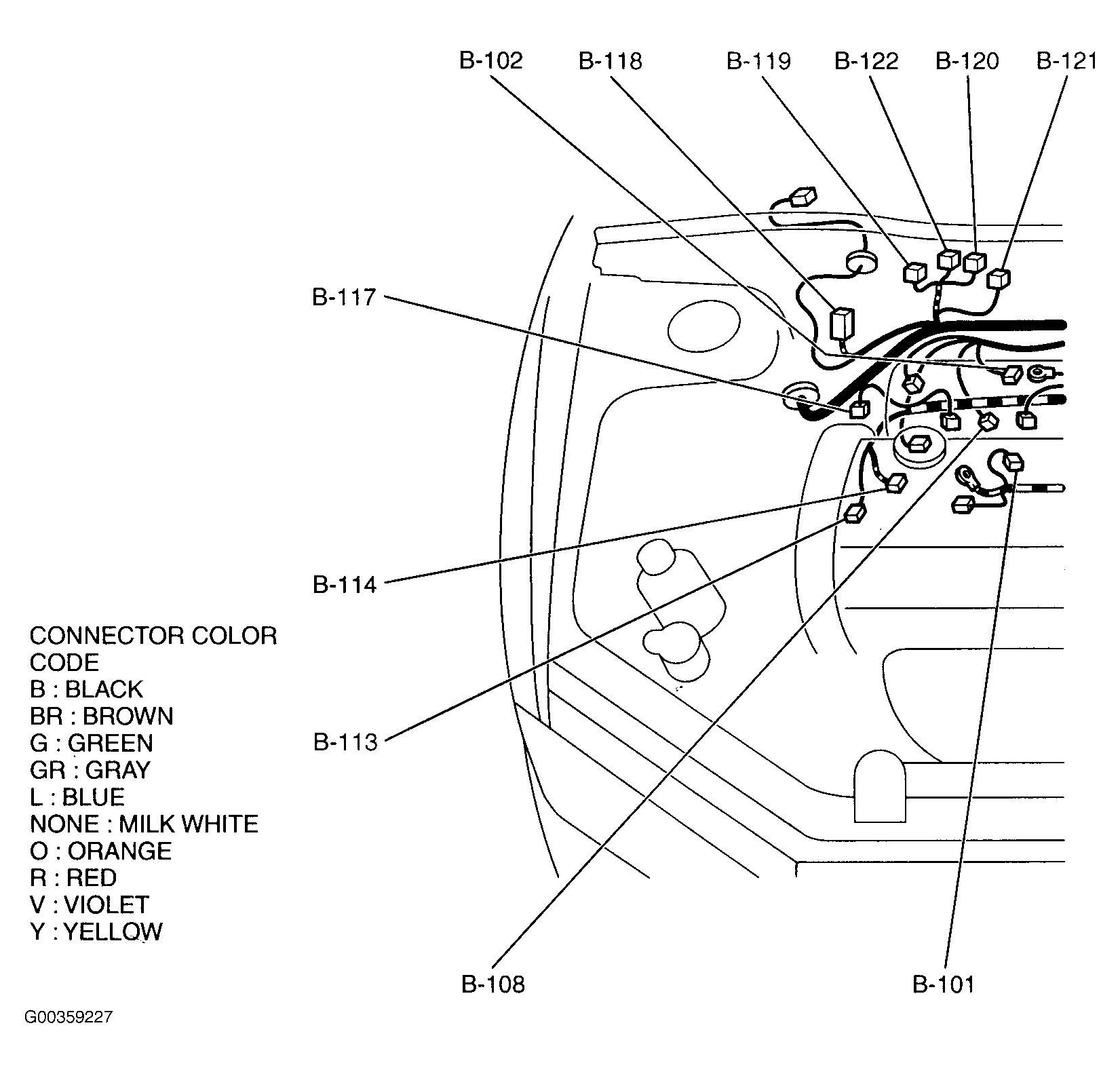

Fig 74: Engine Compartment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 75: Engine & Transaxle (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 76: Engine & Transaxle (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 77: Engine & Transaxle
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 78: Door
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 79: Left Side Of Dash
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 80: Dash
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 81: Dash (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 82: Dash (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
