Starter Relay Check

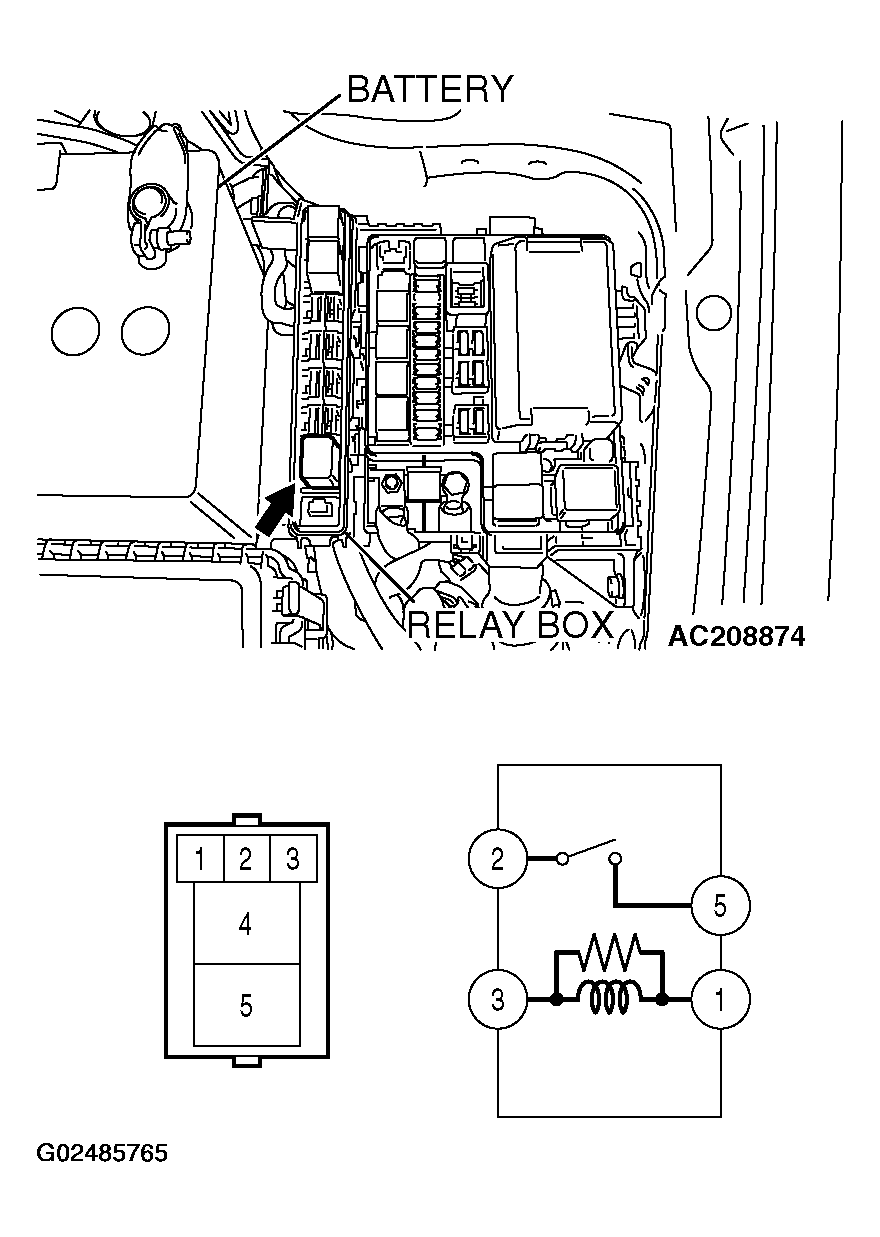

Fig 1: Identifying Starter Relay
G02485764Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

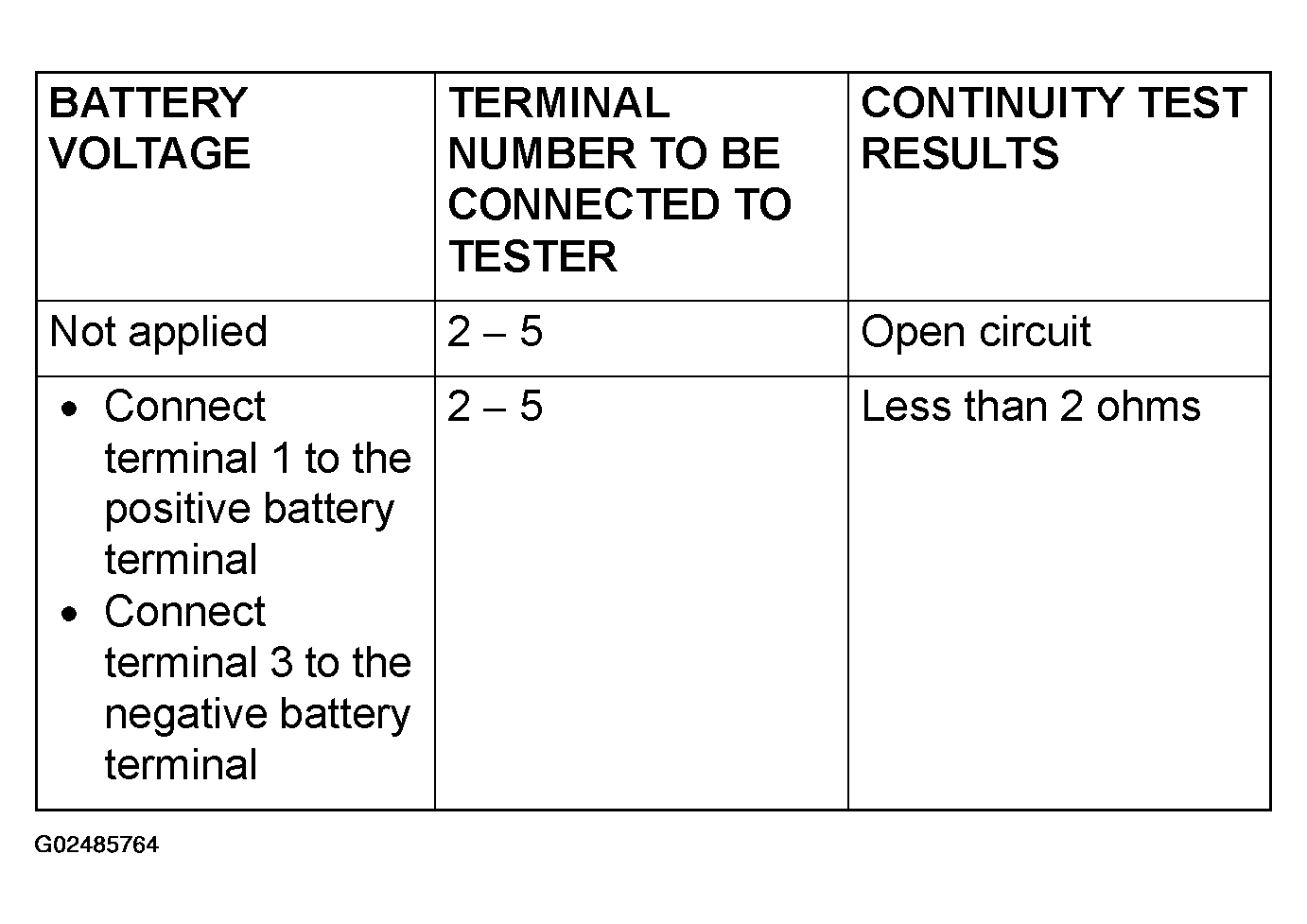

Fig 2: Battery Voltage Terminal Number Continuity
G02485765Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
