Removal And Installation: Notes

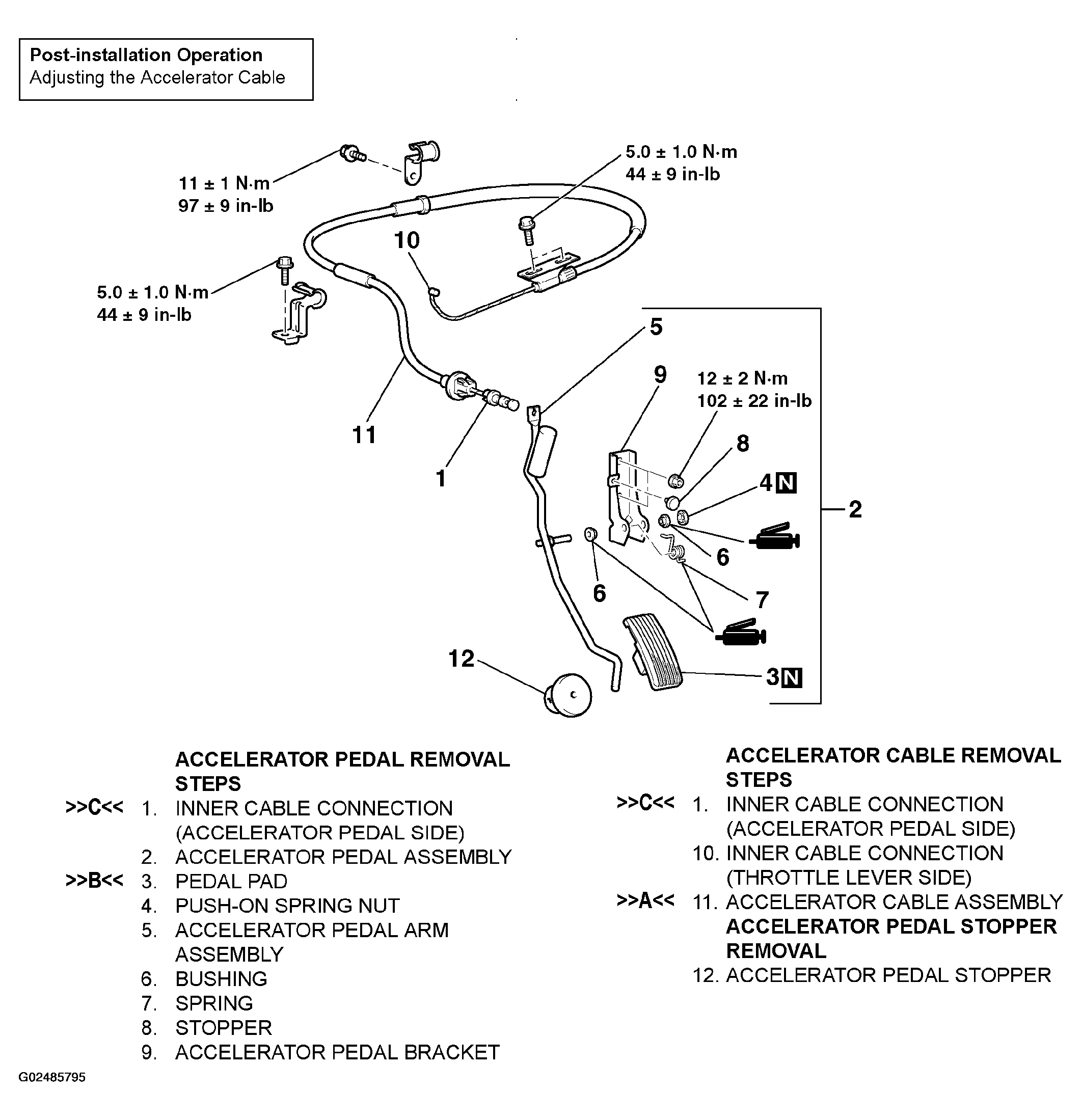

Fig 1: Removing/Installing Accelerator Cable And Pedal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
