Removal And Installation

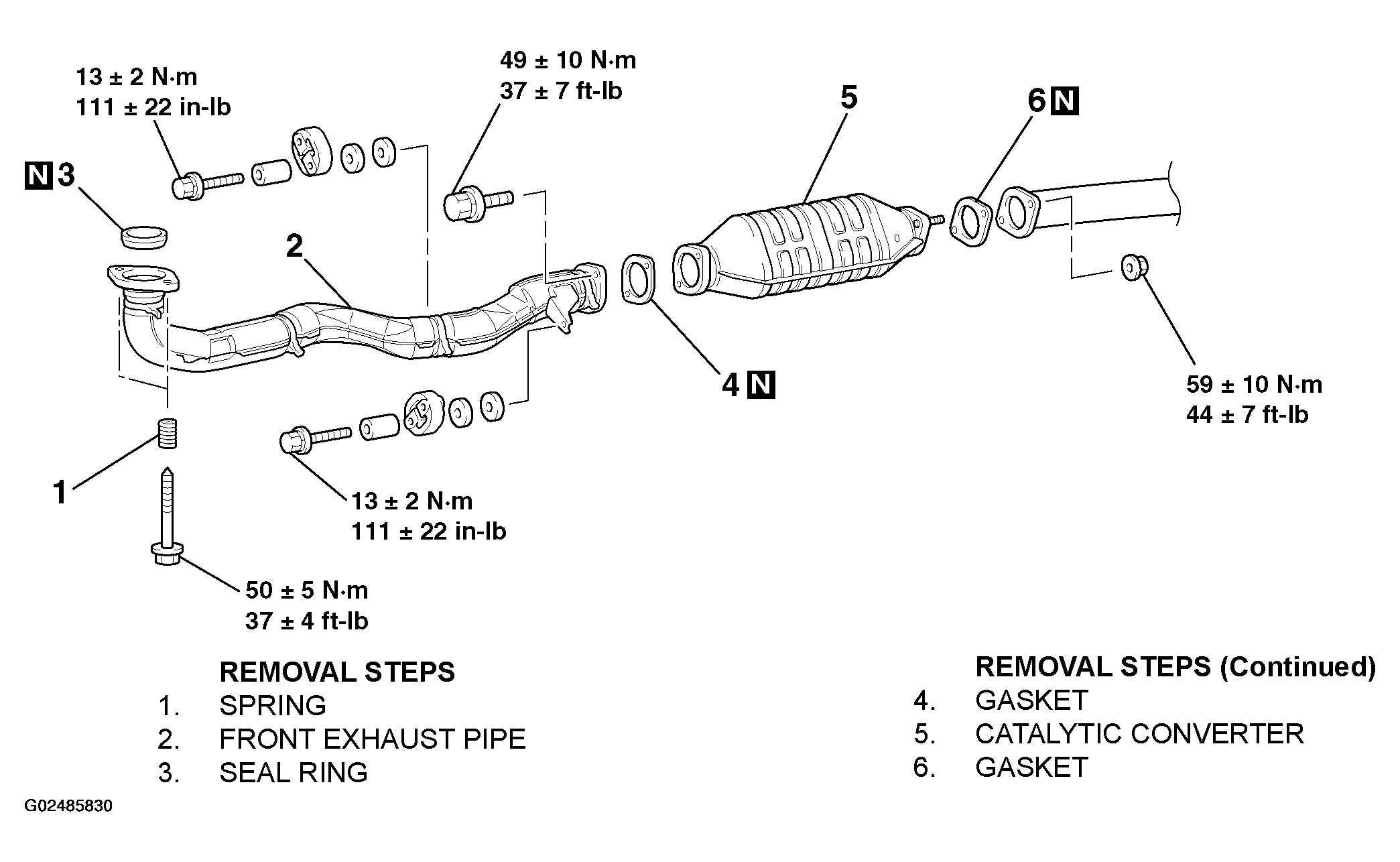

Fig 1: Removing/Installing Catalytic Converter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
