Emission Control -- Evolution: Diagnosis

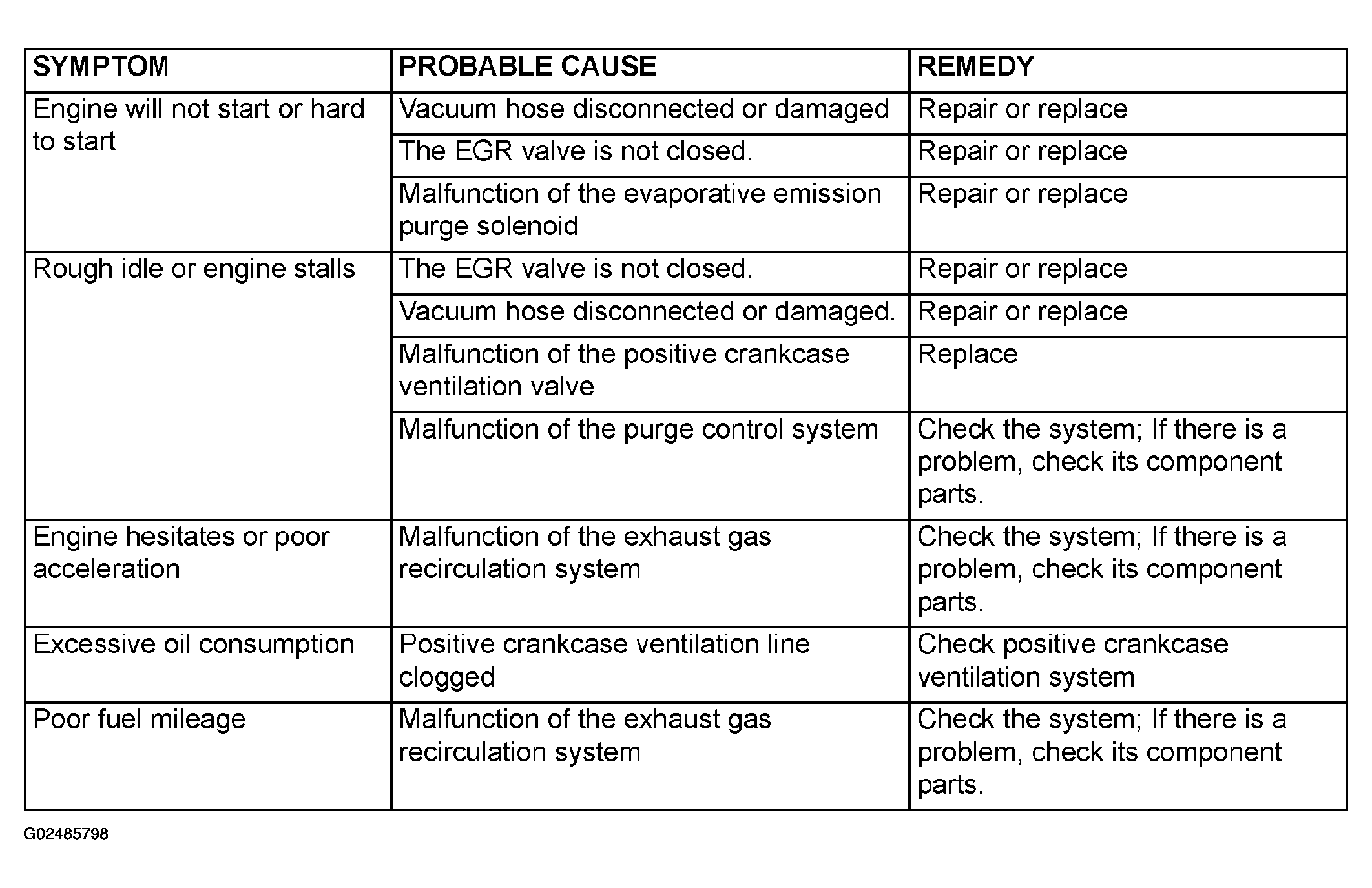

Fig 1: Symptom Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
