Removal Service Point

  1. Disengage claw A and lower the cover in the arrow 1 direction.
  2. Push claw B in the arrow 2 direction to unlock, and pull out the mirror in the arrow 3 direction.

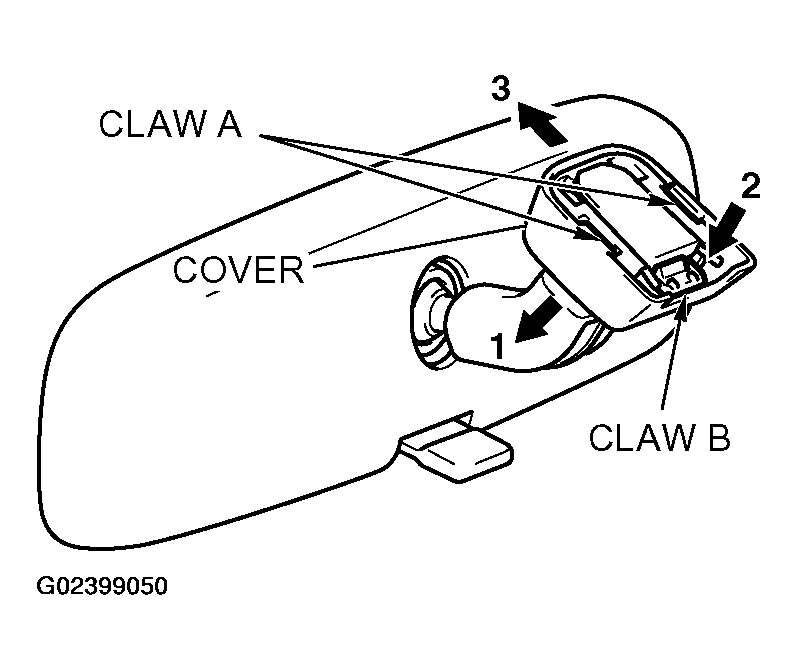

    Fig 1: Disengaging Claw A And Lower Cover
    G02399050Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
