Clip And Claw Position

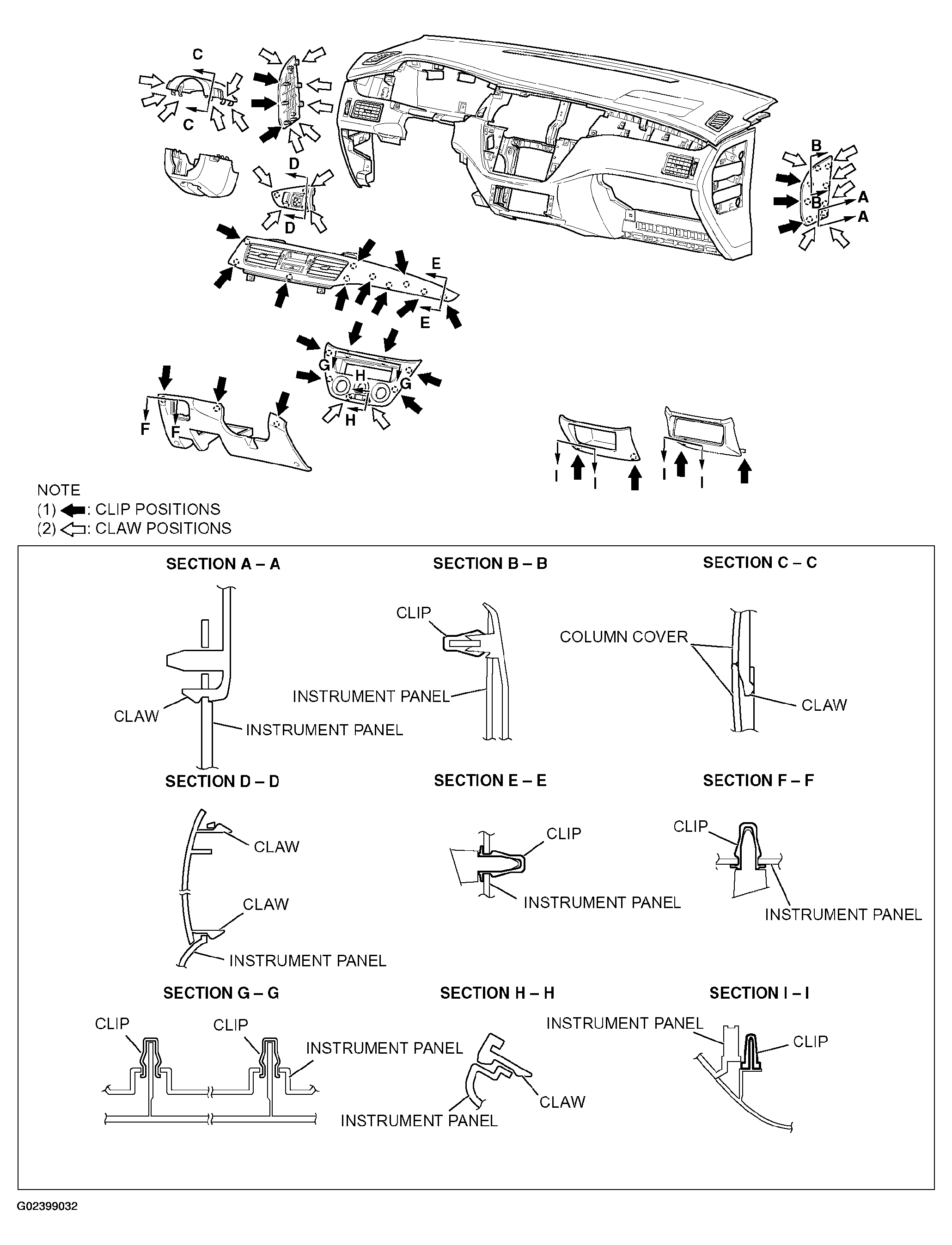

Fig 1: Identifying Clip And Claw Position
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
