Disassembly And Assembly: Notes

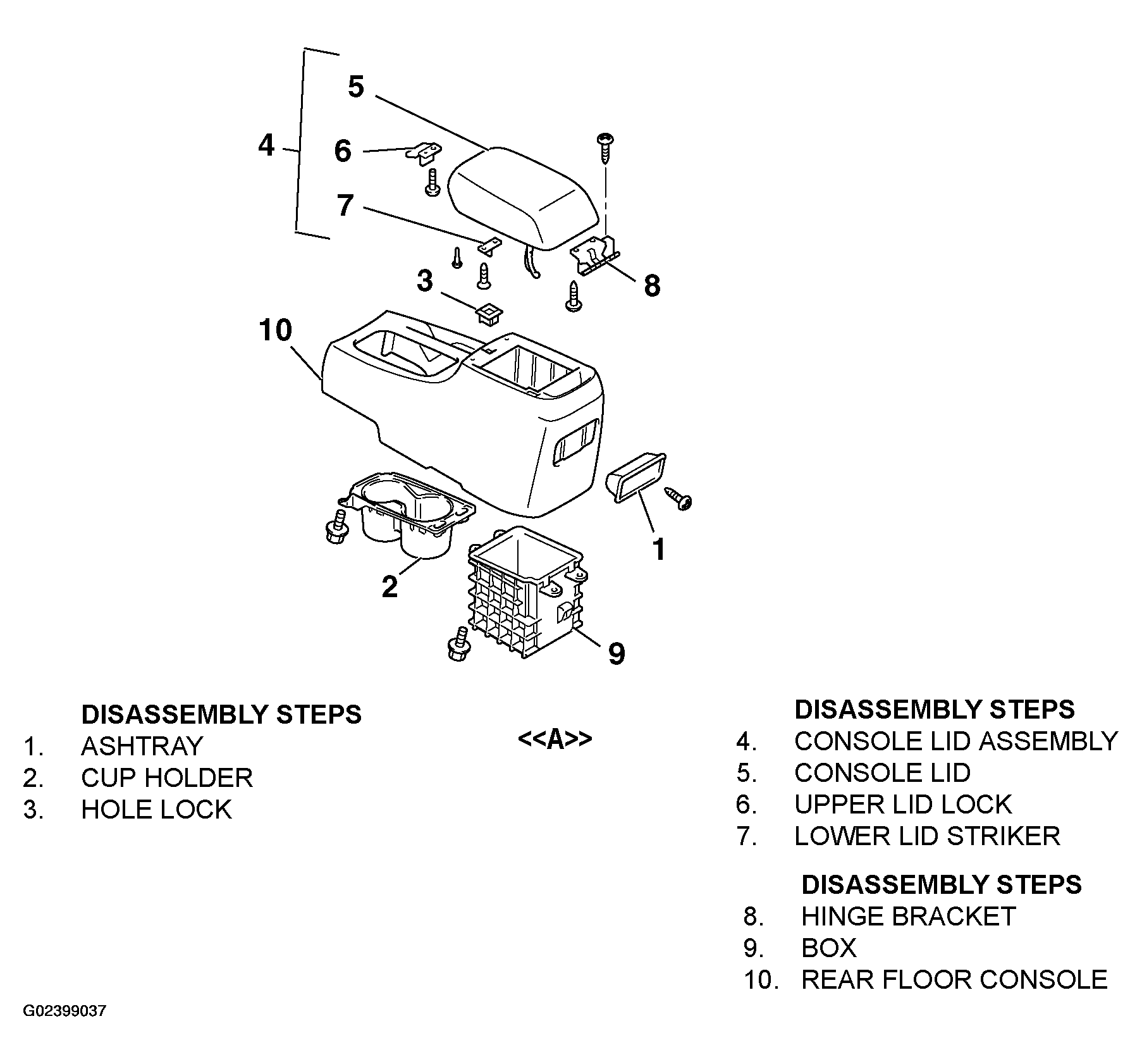

Fig 1: Identifying Rear Floor Console Assembly Components
G02399037Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
