Removal And Installation: Notes

CAUTION: The accelerator pedal position sensor is preadjusted precisely at factory. Whenever the accelerator pedal position sensor is removed and installed, it should be adjusted.

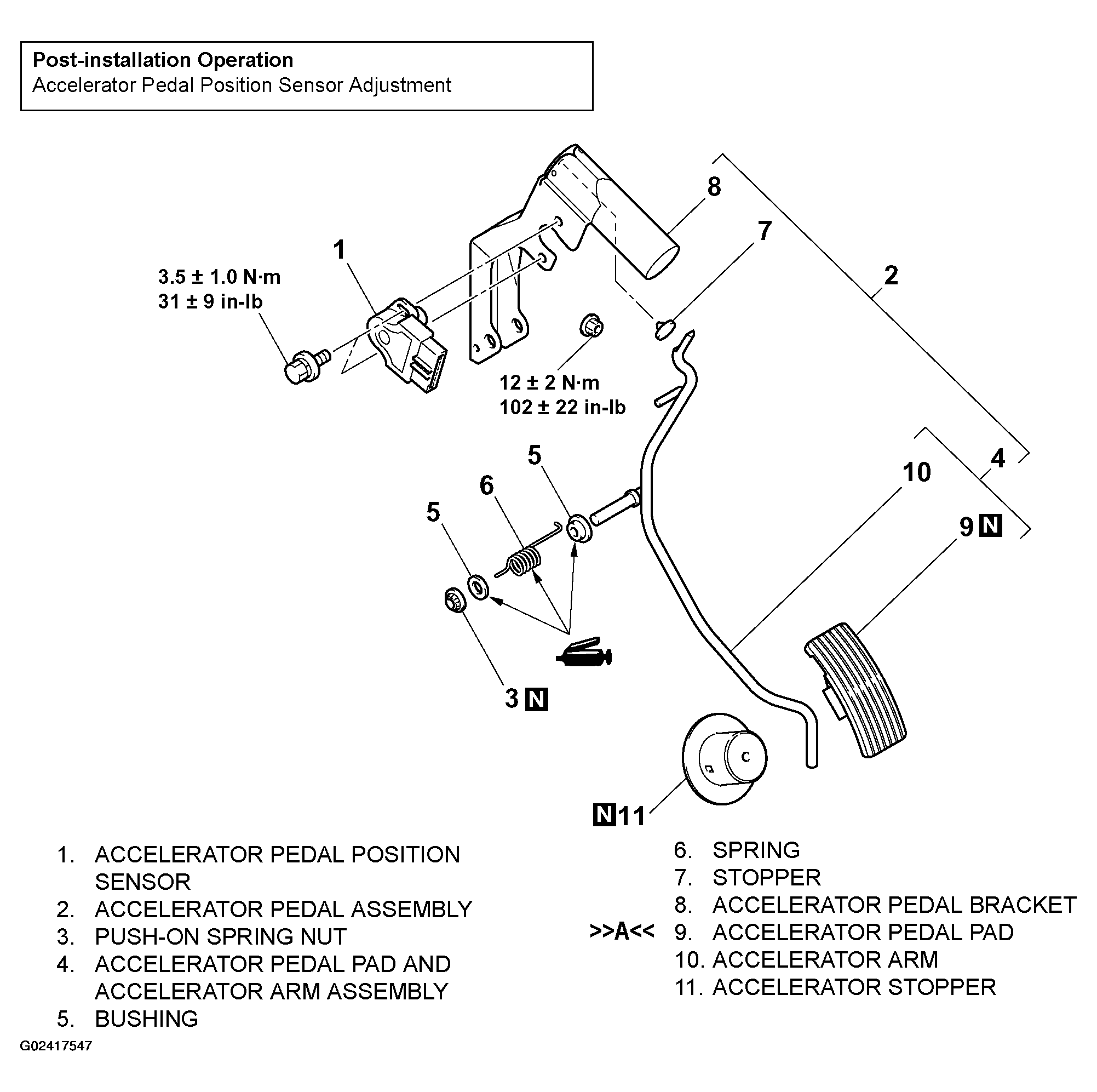

Fig 1: Identifying Accelerator Cable And Pedal Components
G02417547Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
