Removal And Installation: Notes

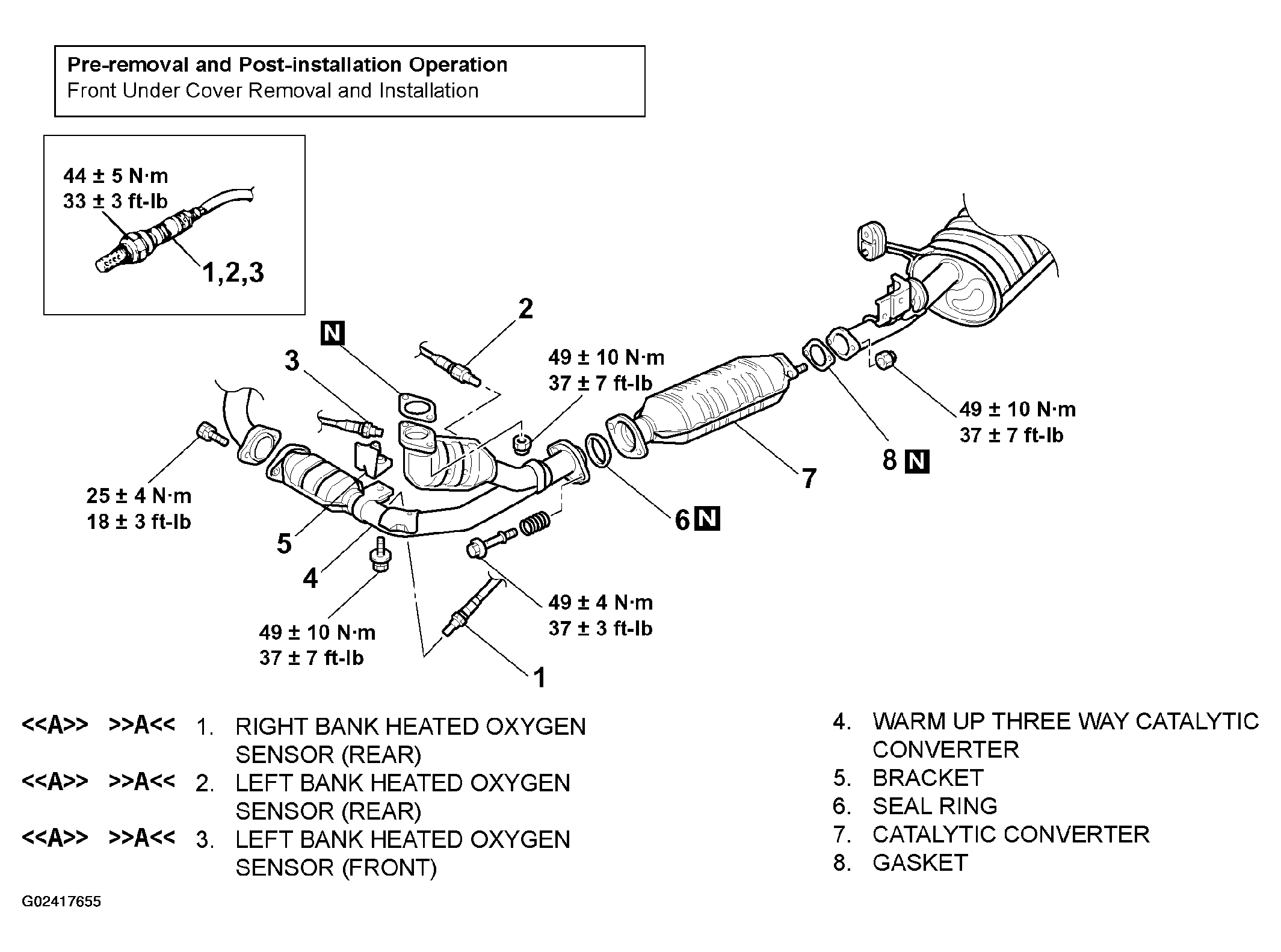

Fig 1: Removing/Installing Catalytic Converter Components
G02417655Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
