Removal And Installation

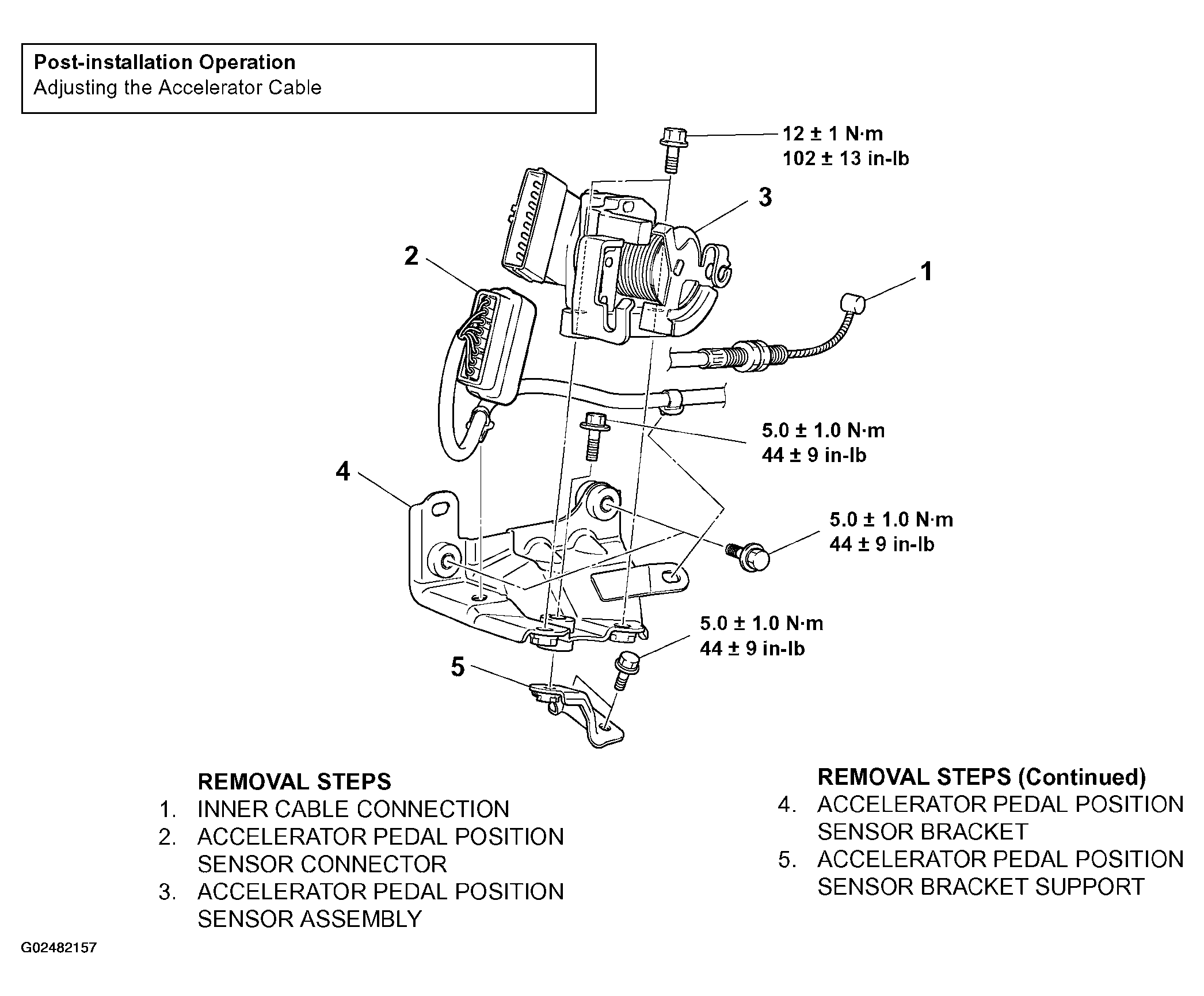

Fig 1: Removing And Installing Accelerator Pedal Position Sensor
G02482157Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
