Measurement Method

Connect the oscilloscope special patterns pick-up to the generator "B" terminal.

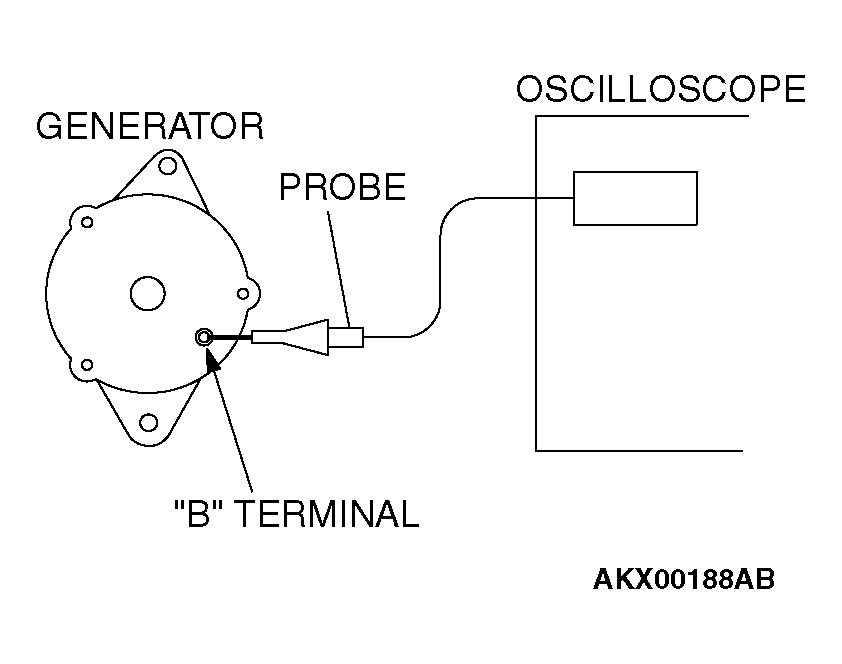

Fig 1: Checking Wave Pattern Using An Oscilloscope
G04296073Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
