Ignition System - Lancer Evolution
>>
Camshaft Position Sensor
>>
Removal And Installation
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Removal And Installation

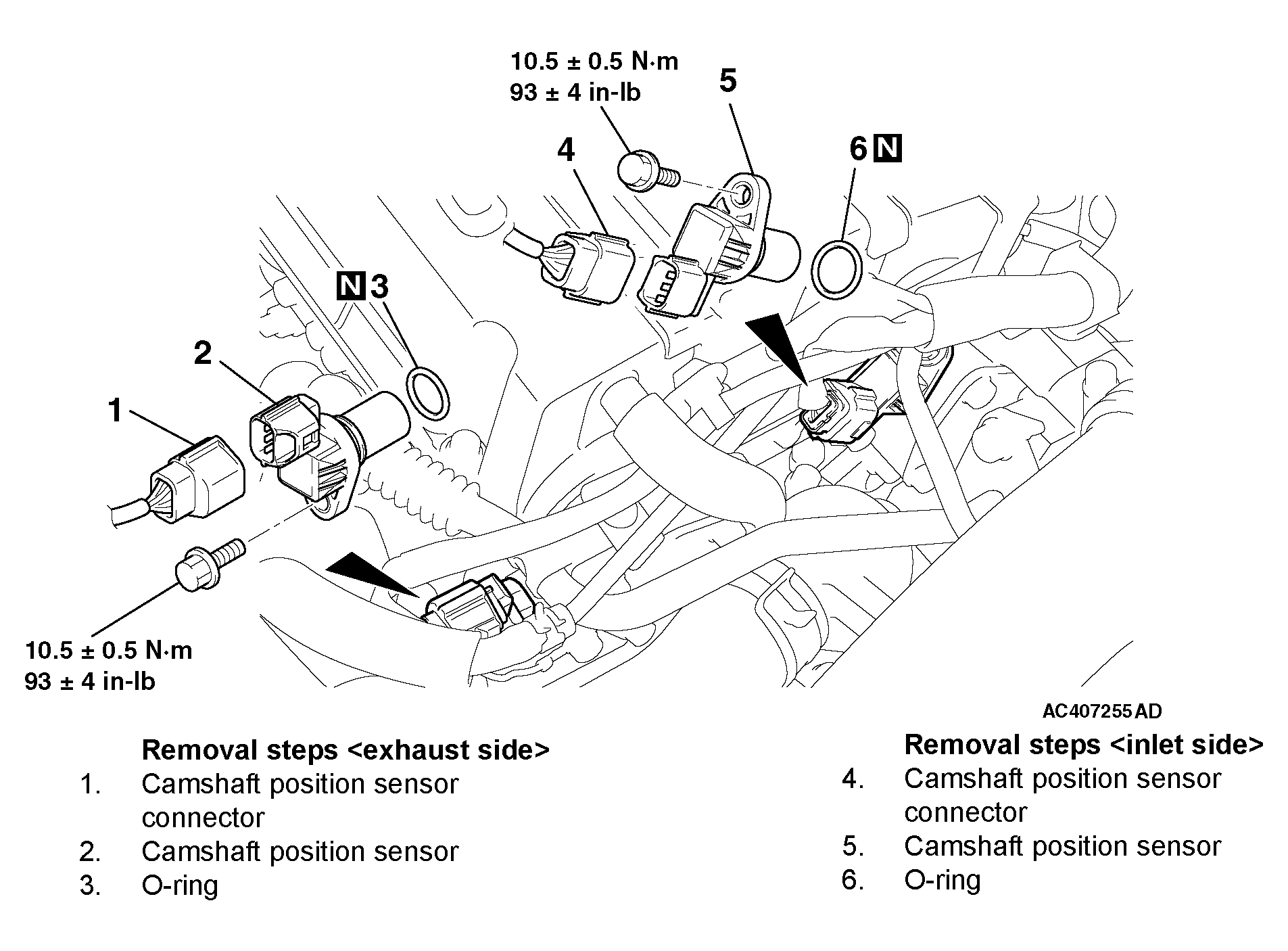

Fig 1: Removing/Installing Camshaft Position Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
