Removal And Installation: Notes

CAUTION: During maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched.

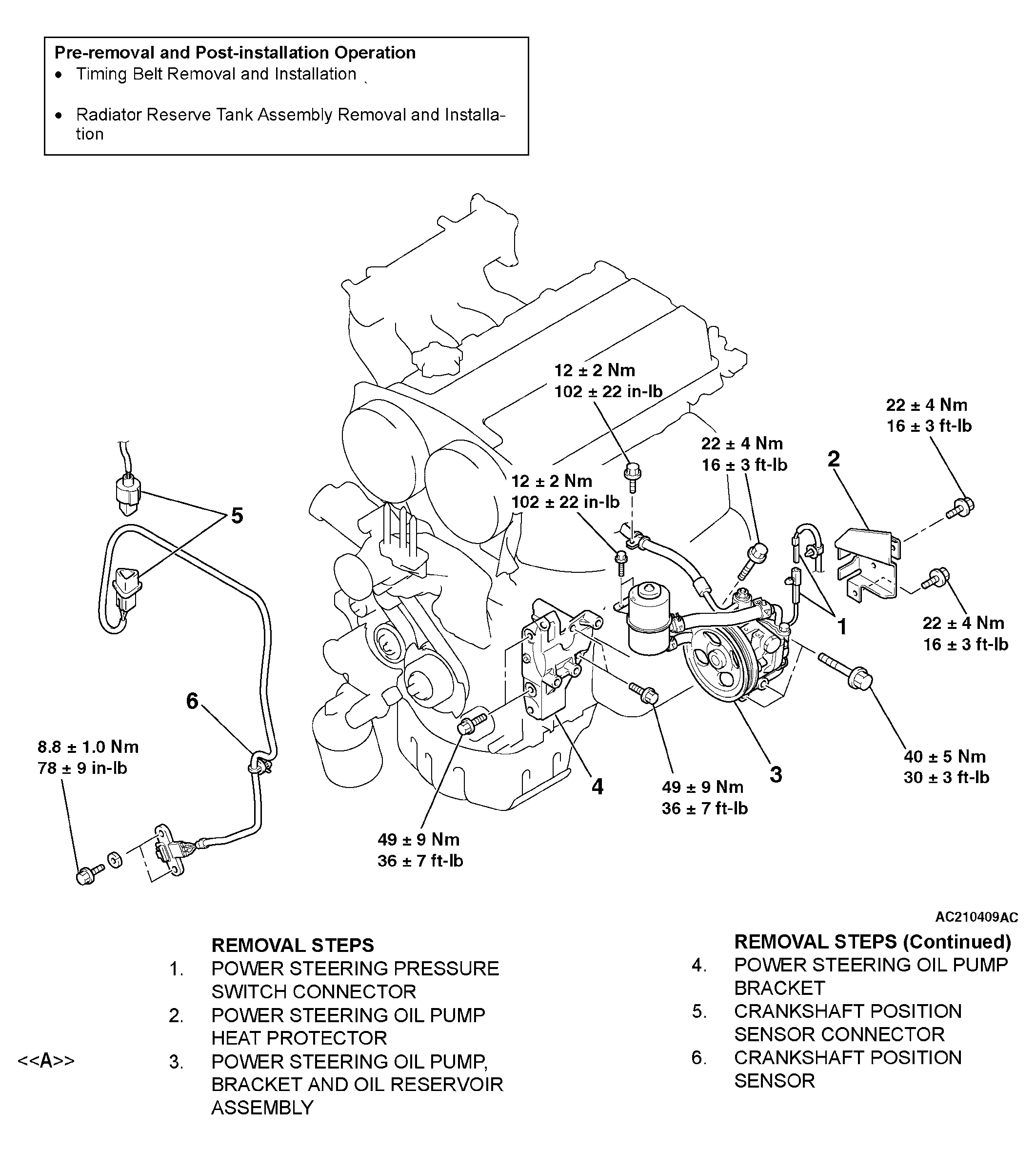

Fig 1: Removing/Installing Crankshaft Position Sensor
G04296141Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
