Secondary Coil Resistance Check

Measure the resistance between the high-voltage terminals of the ignition coil.

Standard value: 8.5 - 11.5 kΩ

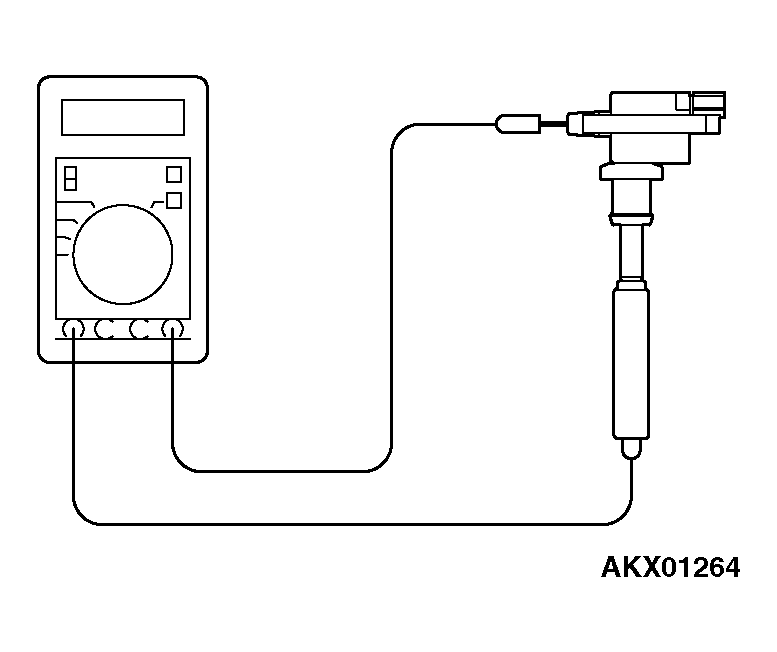

Fig 1: Measuring Resistance Between High-Voltage Terminals Of Ignition Coil

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
