Spark Plug Cable Resistance Check

Measure the resistance of the all spark plug leads.

1. Check the cap and coating for cracks.
2. Measure the resistance.

   Limit: 19 kΩ

3. If resistance is greater than 19 kΩ, replace the cable.

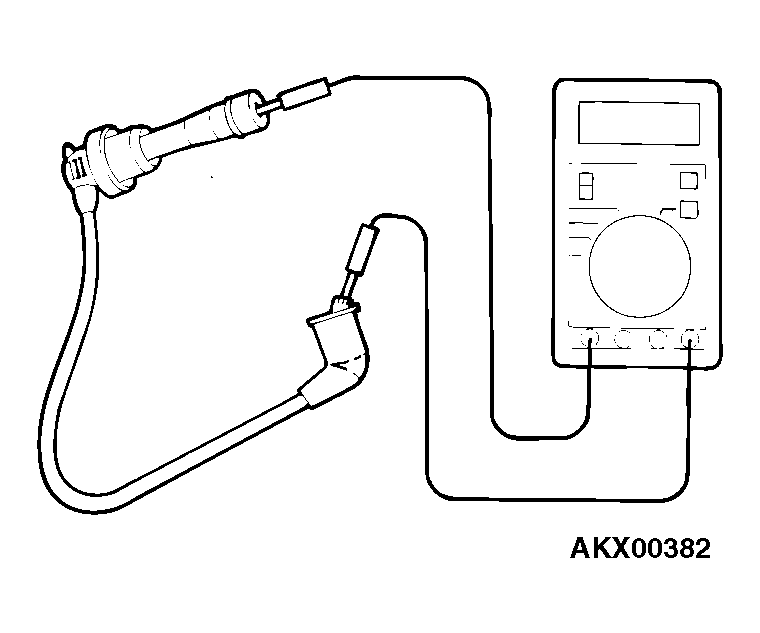

   Fig 1: Measuring Resistance Of All Spark Plug Leads

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
