General Specifications
GENERAL DATA AND SPECIFICATIONS
| ITEM | RS | GSR | |||
|---|---|---|---|---|---|
| CT9ASNDFZL2M | CT9ASNGFZL2M | CT9ASJGFZL2M | |||

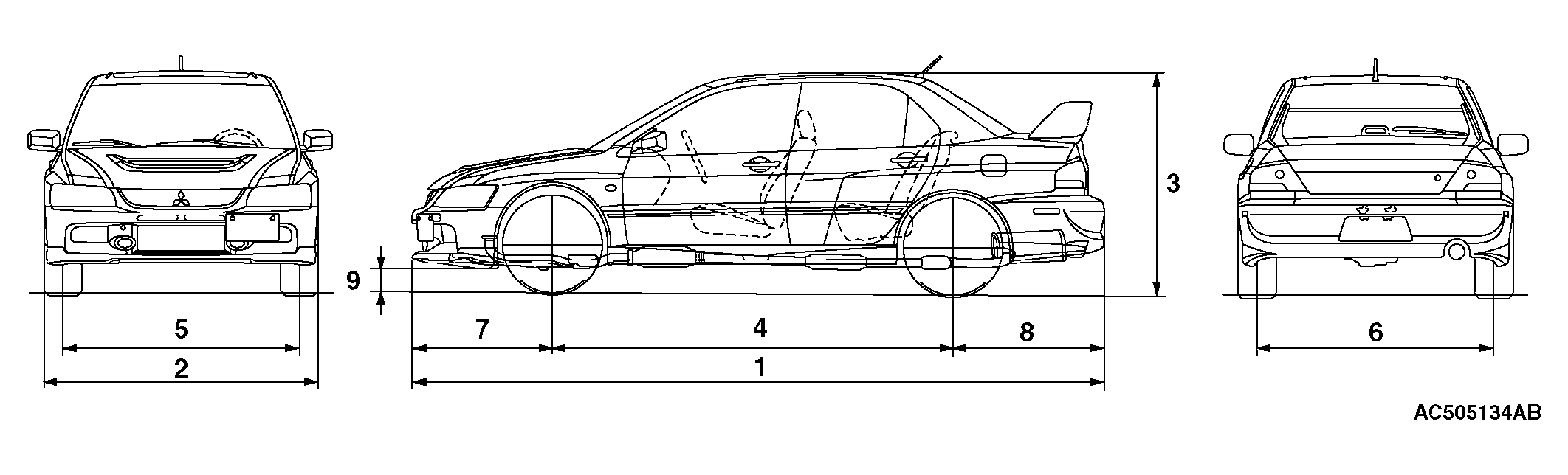

| Vehicle dimension mm (in) | Overall length | 1 | 4,535 (178.5) | ||
| Overall width | 2 | 1,770 (69.7) | |||
| Overall height (unladen) | 3 | 1,450 (57.1) | |||
| Wheelbase | 4 | 2,625 (103.3) | |||
| Tread-front | 5 | 1,515 (59.6) | |||
| Tread-rear | 6 | 1,515 (59.6) | |||
| Front overhang | 7 | 930 (36.6) | |||
| Rear overhang | 8 | 980 (38.6) | |||
| Minimum running ground clearance | 9 | 140 (5.5) | |||
| Vehicle weight kg (lb) | Curb weight | 1,440 (3,174) | 1,485 (3,274) | 1,490 (3,284) | |
| Gross vehicle weight rating | 1,915 (4,222) | ||||
| Gross axle weight rating-front | 1,030 (2,270) | ||||
| Gross axle weight rating-rear | 905 (1,995) | ||||
| Seating capacity | 5 | ||||
| Engine | Model type | 4G63-DOHC-Intercooler, Turbocharger | |||
| Piston displacement cm3 (cu.in) | 1,997 (121.9) | ||||
| Maximum output kW/rpm (HP/r/min) | 206/6,500 (276/6,500) | ||||
| Maximum torque N. m/rpm (lbs-ft/r/min) | 387/3,500 (285/3,500) | ||||
| Transaxle | Model type | W5M51 | W6MAA | ||
| Transaxle type | 5-speed forward, 1-speed reverse constant mesh | 6-speed forward, 1-speed reverse constant mesh | |||
| Fuel system | Fuel supply system | Electronic controlled multiport fuel injection | |||
