Check Oil Level

Inspect each component for evidence of leakage. Check the oil level by removing the filler plug.

1. Remove the filler plug.
2. Check that the oil level is up to the lower edge of the filler plug hole.
3. Check that the oil is not noticeably dirty.

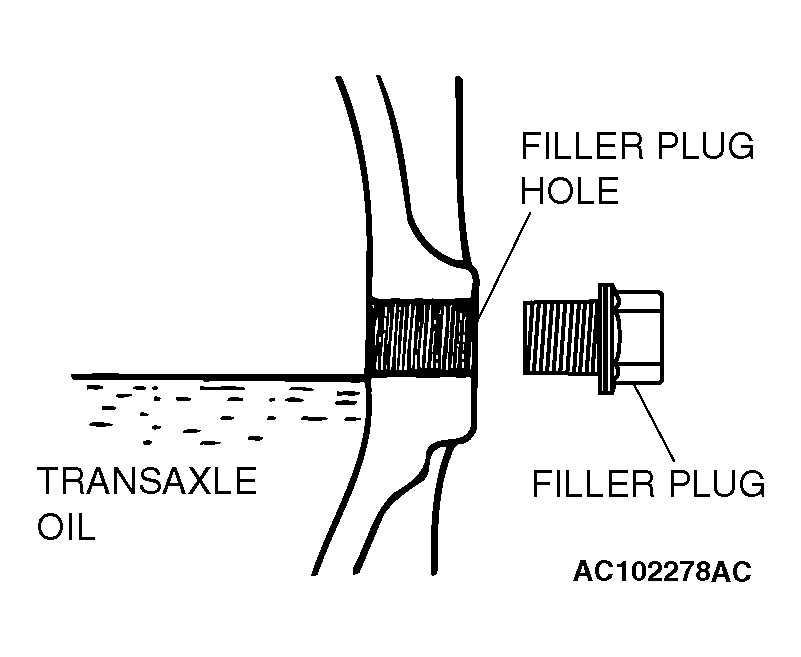

   Fig 1: Checking Oil Level Filler Plug Hole

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Tighten the filler plug to the specified torque.

   Tightening torque: 32 +/- 2 N. m (23 +/- 2 ft-lb)
