Transfer Oil Change

Remove the filler plug.
Remove the drain plug and drain the oil.
Tighten the drain plug to the specified torque.

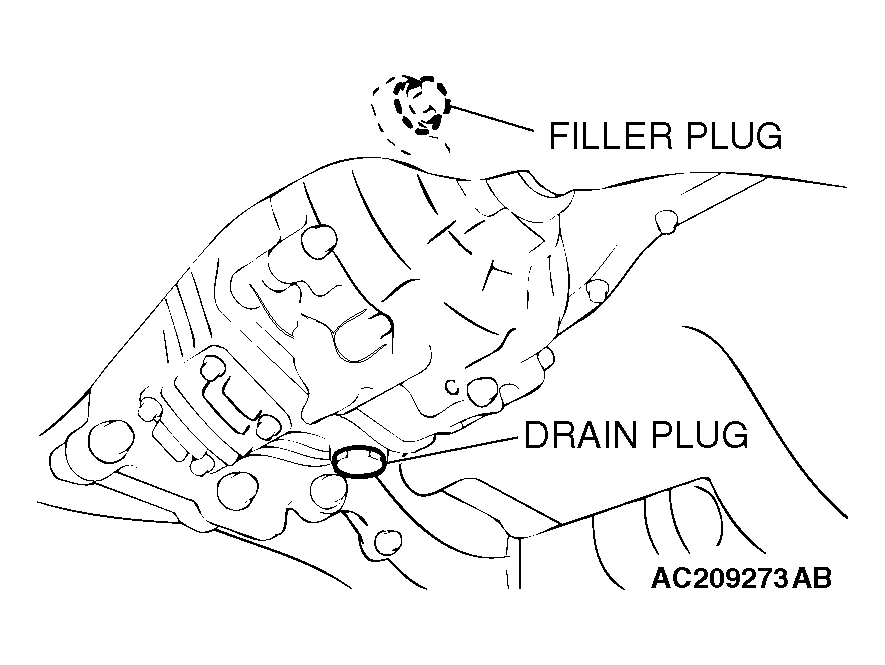

Fig 1: Removing Filler Plug
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Tightening torque: 32 +/- 2 N. m (23 +/- 2 ft-lb)

CAUTION: Cover the heat protector of the front exhaust pipe with cardboard or something similar when refilling transfer oil so that transfer oil does not enter the area between the front exhaust pipe and heat protector.
Fill with hypoid gear oil API classification GL-5 SAE90 until the level comes to the lower portion of filler plug hole.
Quantity: 0.6 dm ³ (0.63 quart)
Tighten the filler plug to the specified torque.
Tightening torque: 32 +/- 2 N. m (23 +/- 2 ft-lb)
