Floor Jack

CAUTION:
  • Never support any point other than the specified one, or that point will be damaged.
  • For lifting, put rubber or similar material between the side sill and rigid rack, or the side sill area will be damaged.

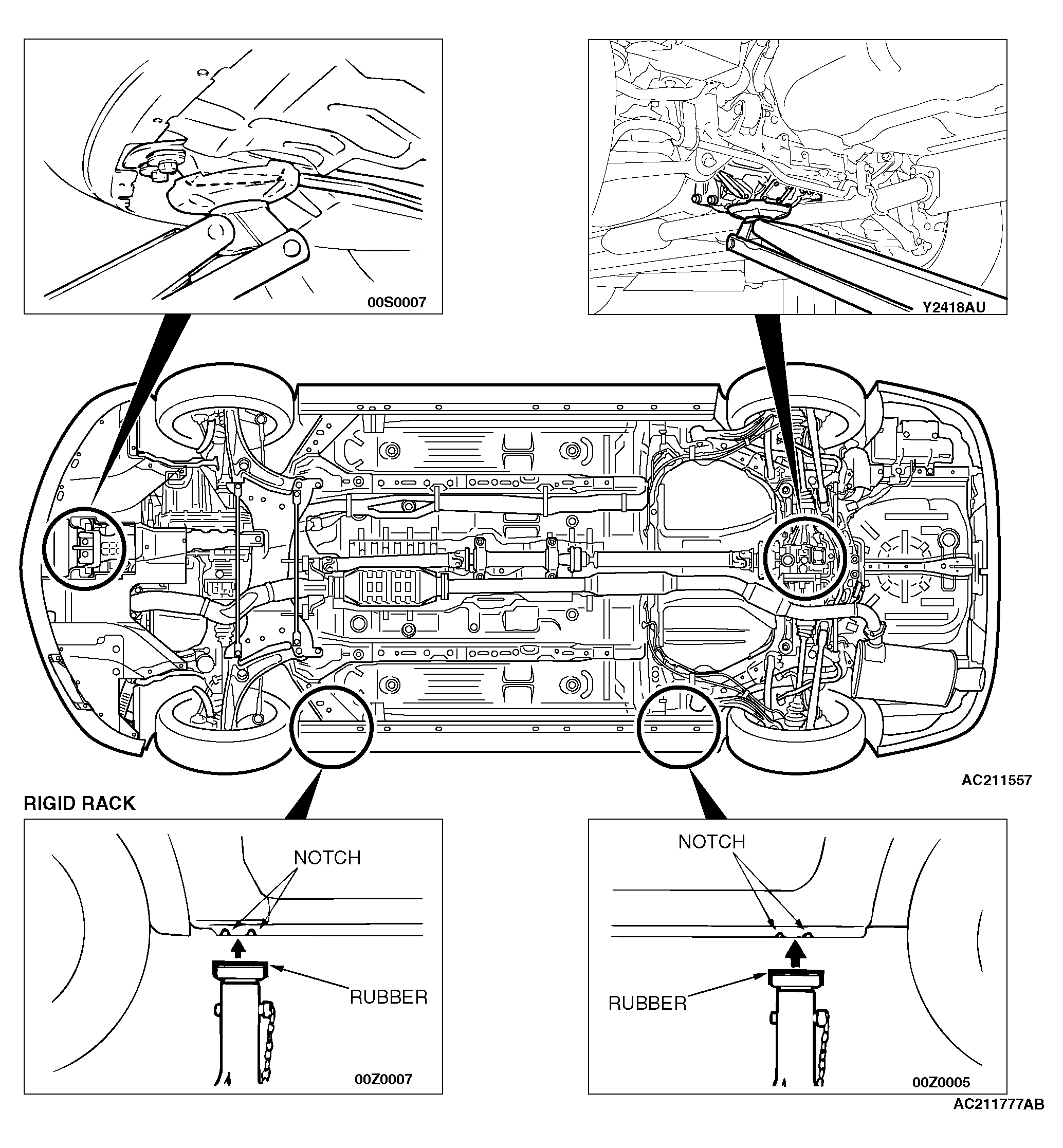

    Fig 1: Putting Rubber Similar Material Between Side Sill
    G04293863Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
