Removal And Installation: Notes

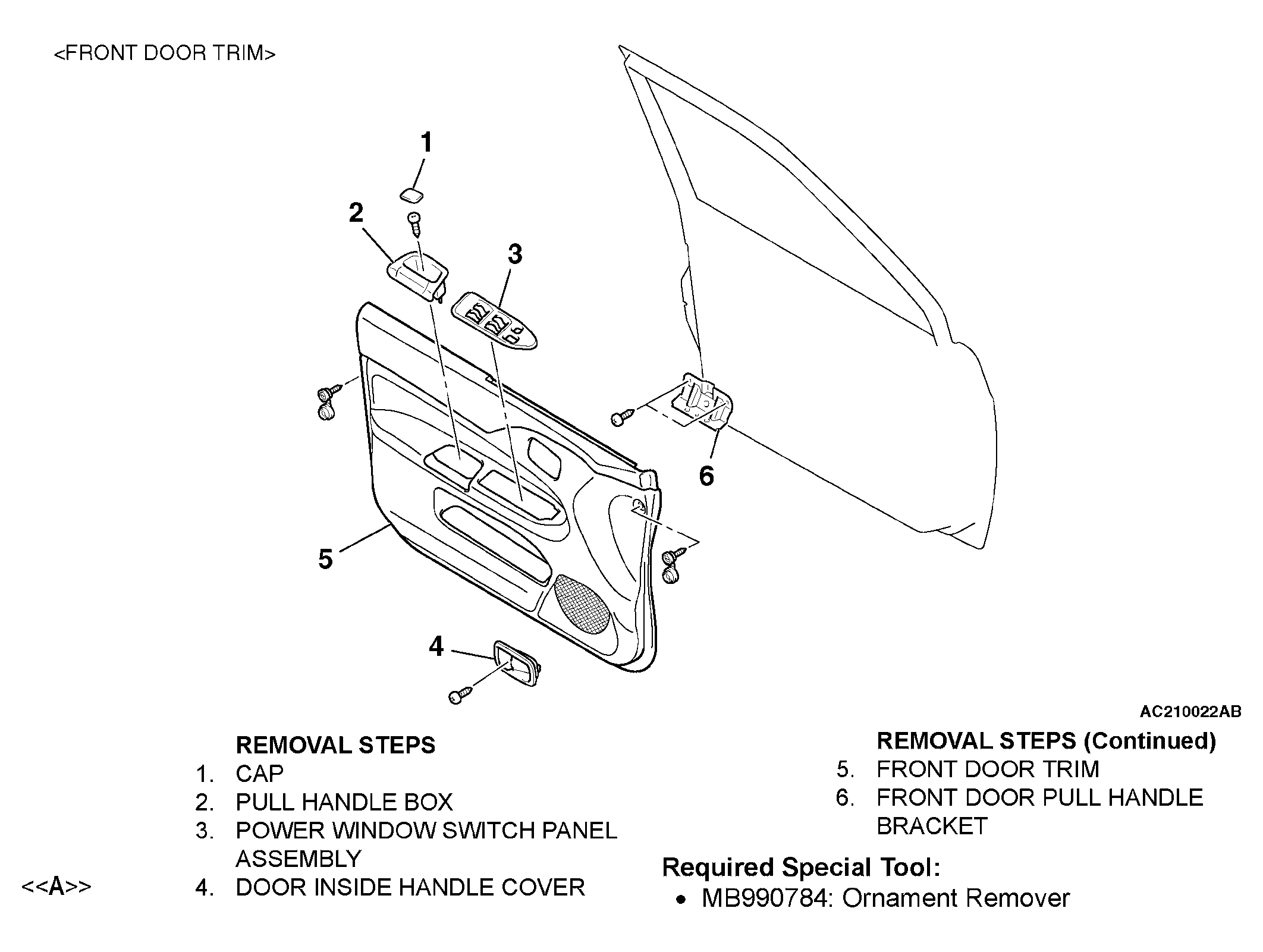

Fig 1: Removing/Installing Door Trim (Front Door Trim)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990784: Ornament Remover

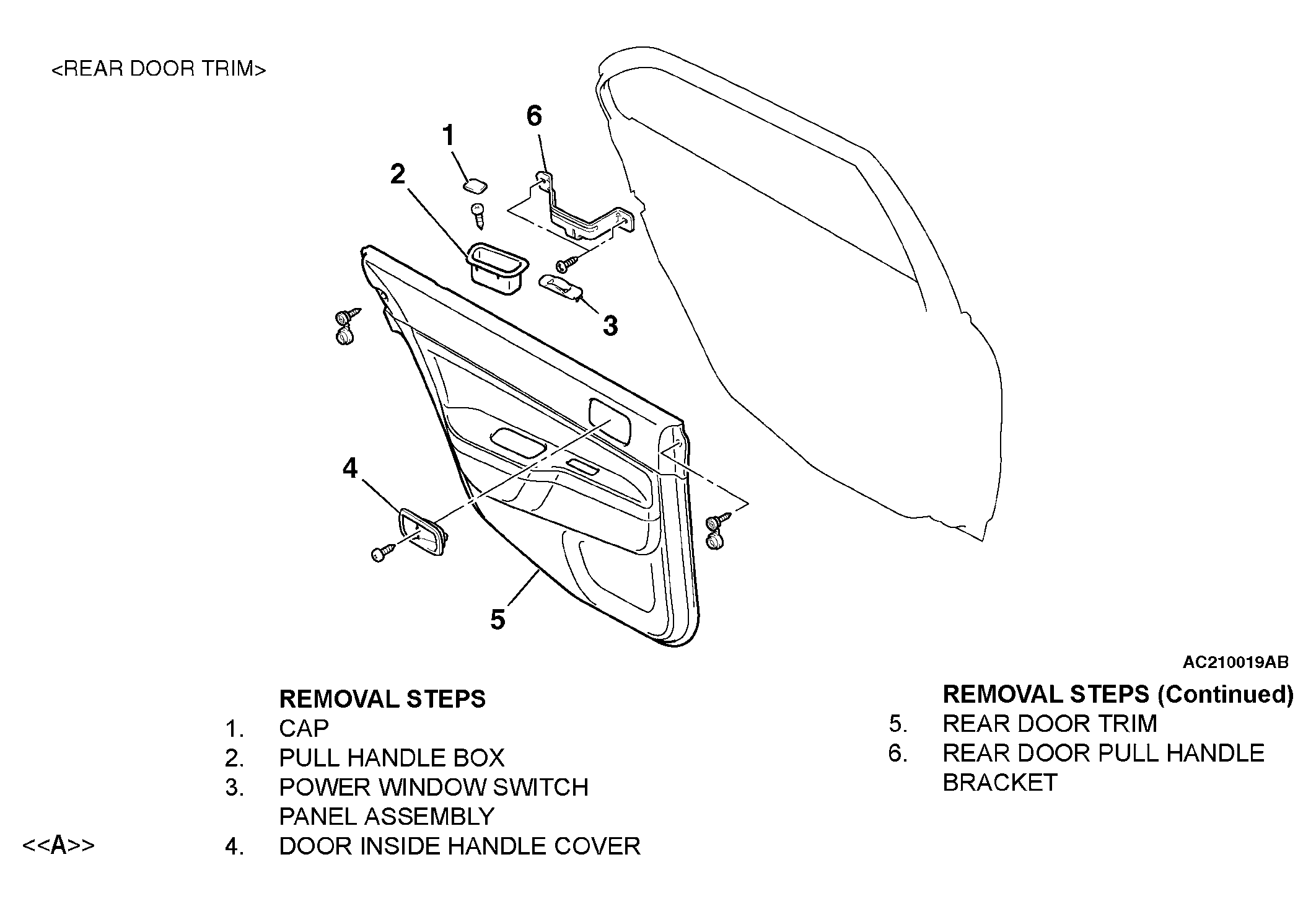

  Fig 2: Removing/Installing Door Trim (Rear Door Trim)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB991784: Ornament Remover
