Removal And Installation: Notes

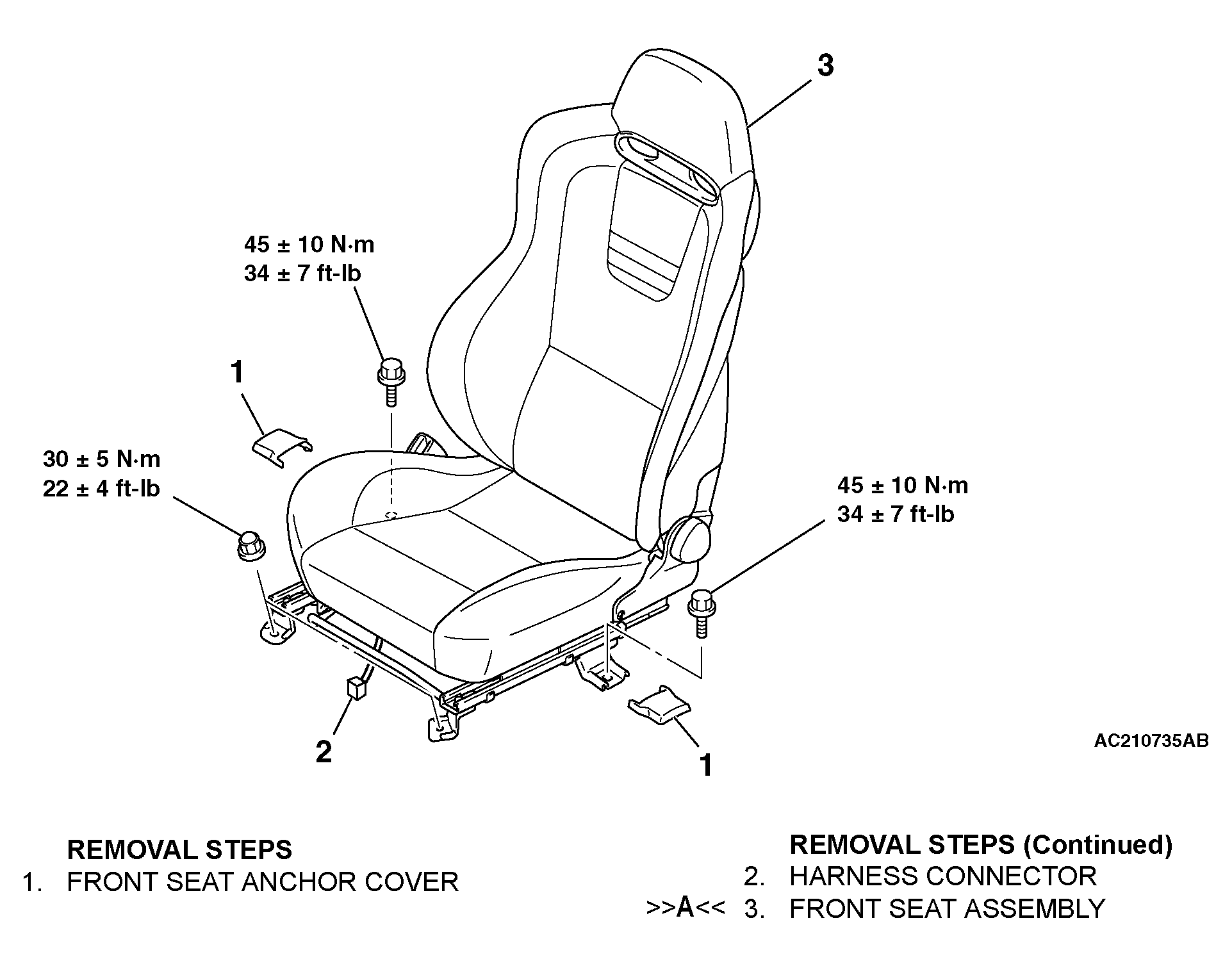

Fig 1: Removing/Installing Front Seat Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
