Removal And Installation: Notes

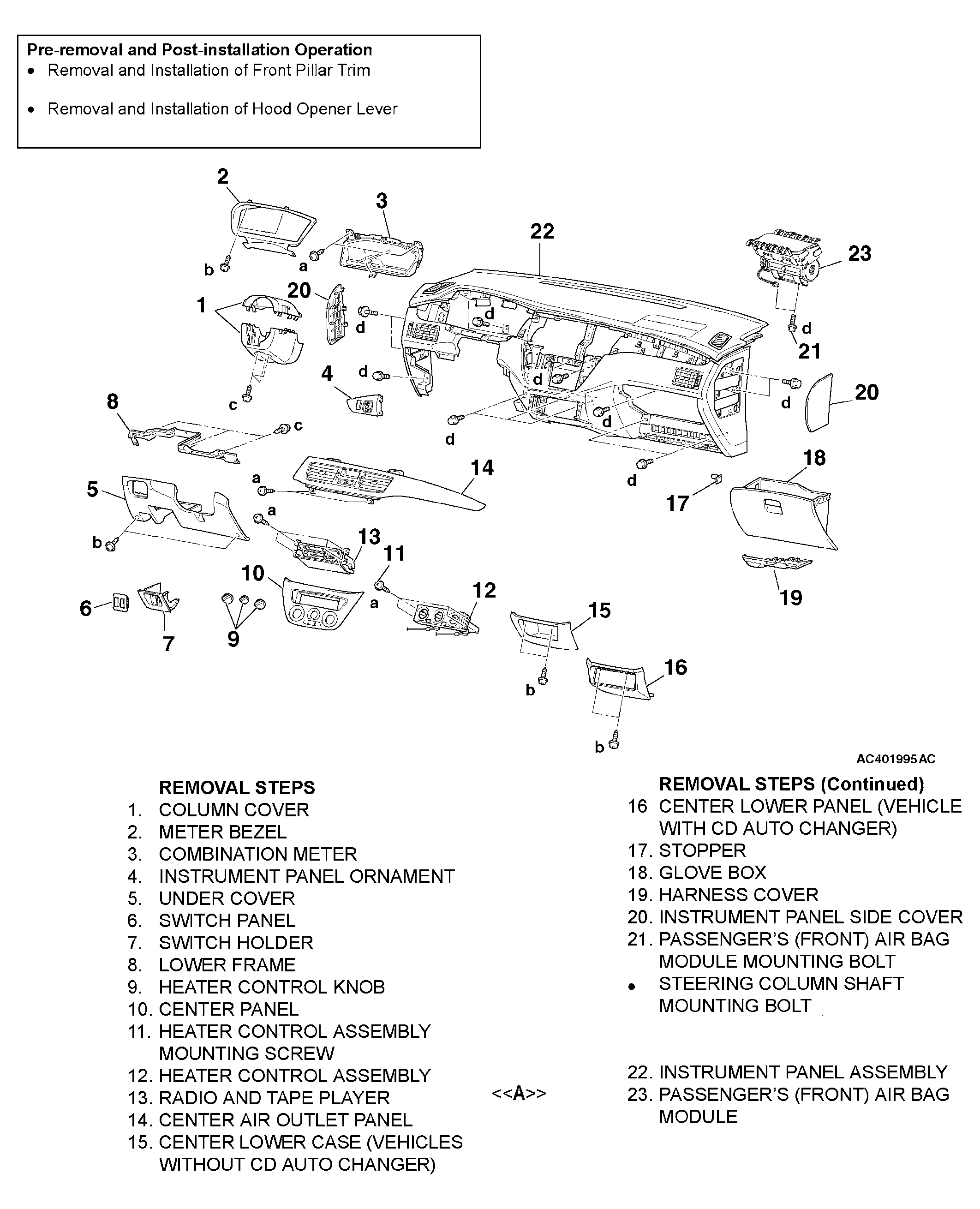

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."
BOLT AND SCREW SPECIFICATION

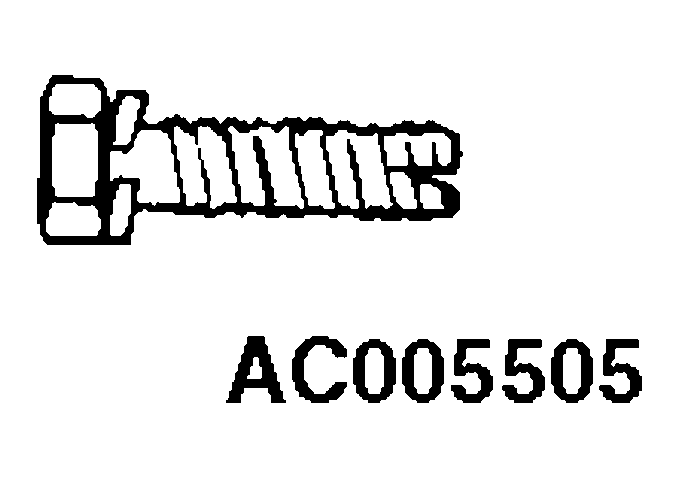

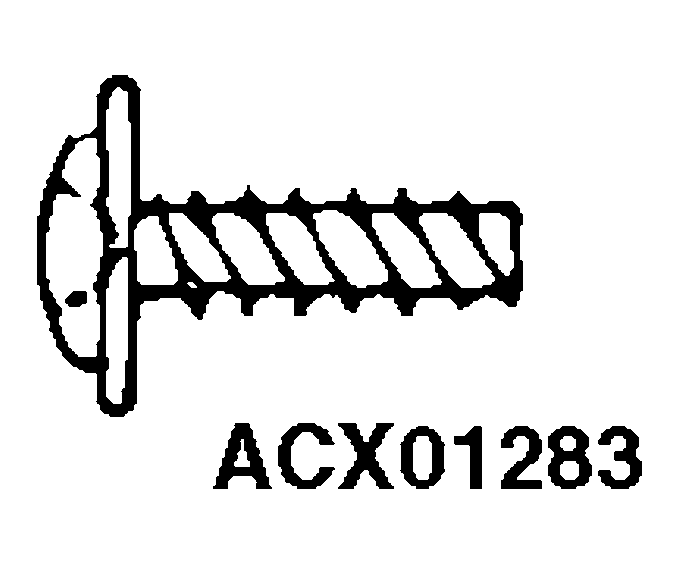

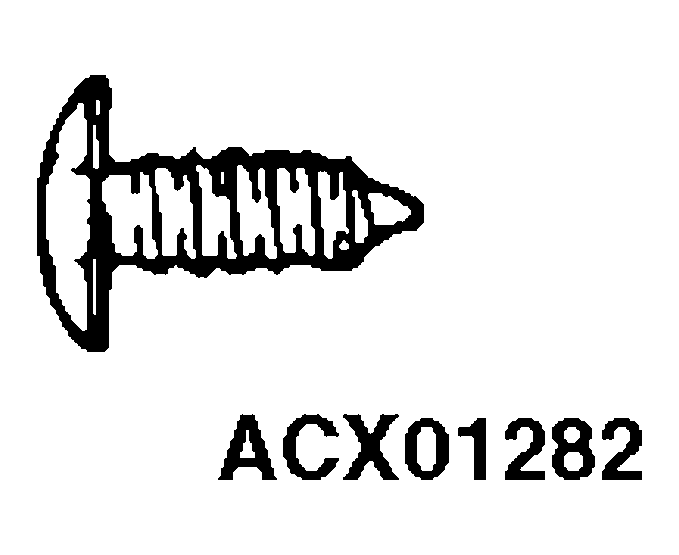

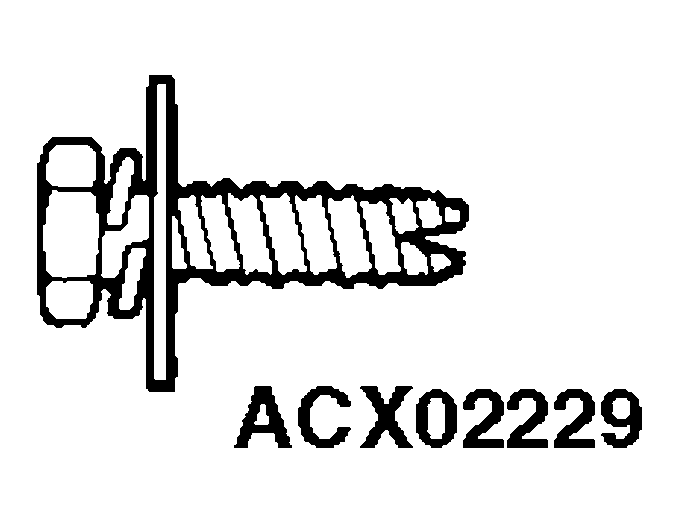

| NAME | SYMBOL | SIZE (D x L) mm | COLOR | SHAPE |
|---|---|---|---|---|
| Tapping screw | a | 5 x 16 | Black | |
| b | 5 x 16 | - | ||
| c | 5 x 12 | - | ||
| Bolt with washer | d | 6 x 12 | - | |
| e | 5 x 20 | - | ||
| D: Thread diameter L: Effective thread length | ||||
CAUTION:
- Refer to SRS SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING before removing the passenger side air bag module.
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
