Disassembly And Assembly: Notes

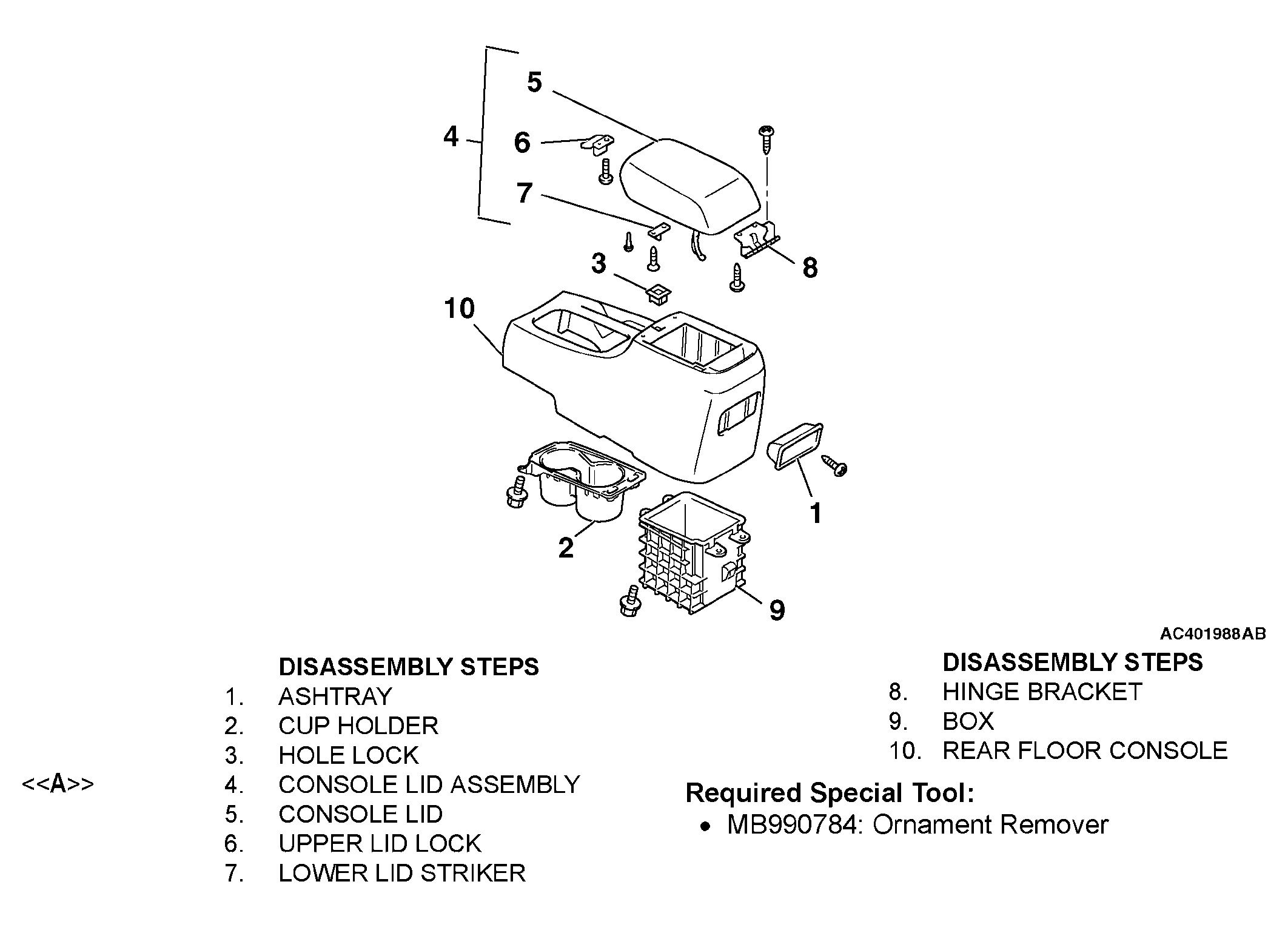

Fig 1: Disassembling And Assembling Rear Floor Console Assembly
G04297852Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
