Circuit Diagram

WARNING:
  • Do not repair, splice, or modify the SRS wiring (except for specific repairs to the instrument panel wiring harness and the floor wiring harness shown on SERVICE PRECAUTIONS  ): replace the wiring if necessary, after reading and following all precautions and procedures in this article.
  • Do not use an analog ohmmeter to check the SRS wiring or components; use only the special tools (refer to SPECIAL TOOLS  ) and a digital multi-meter (refer to TEST EQUIPMENT  ).

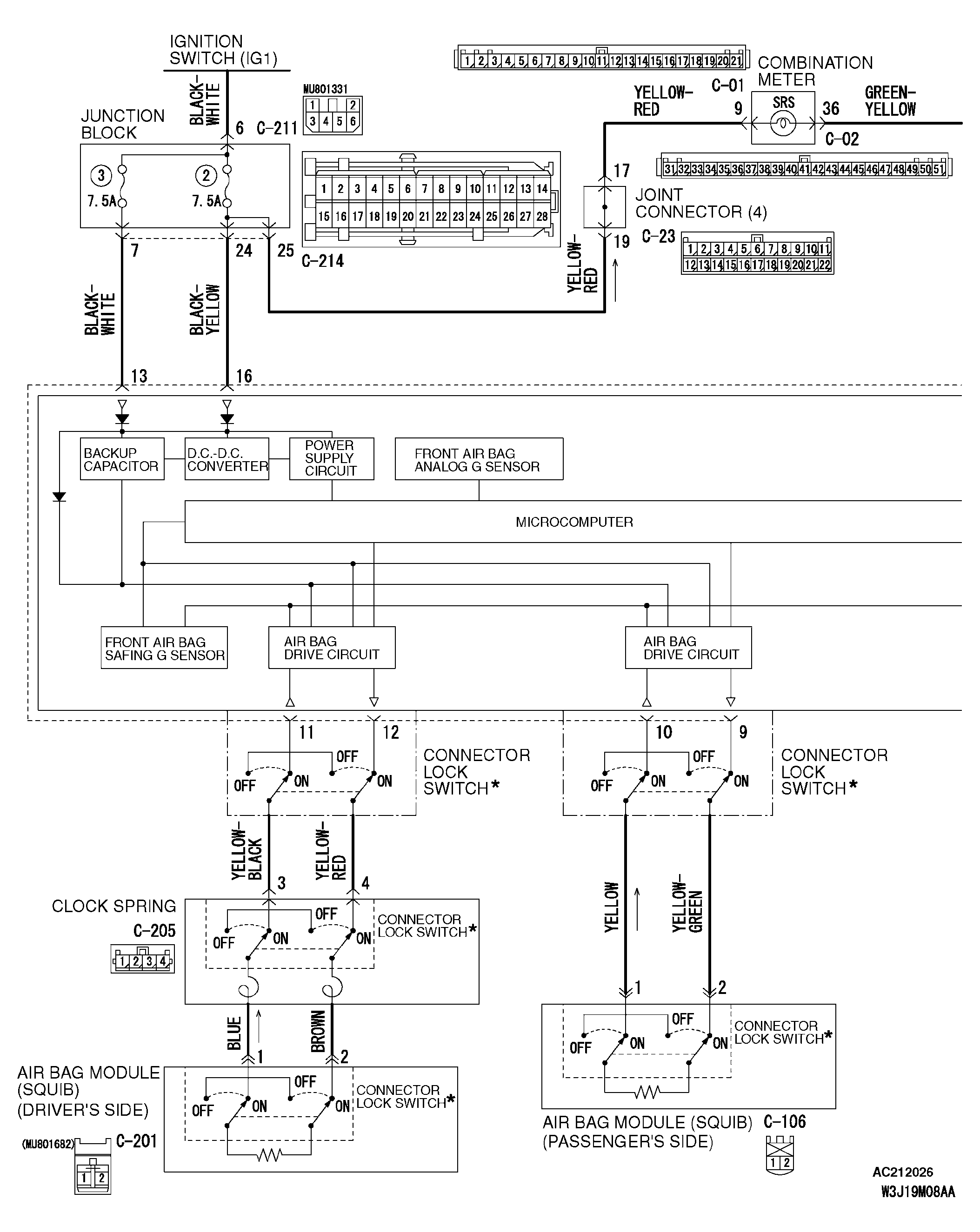

Fig 1: Circuit Diagram (1 Of 3)
G04297887Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

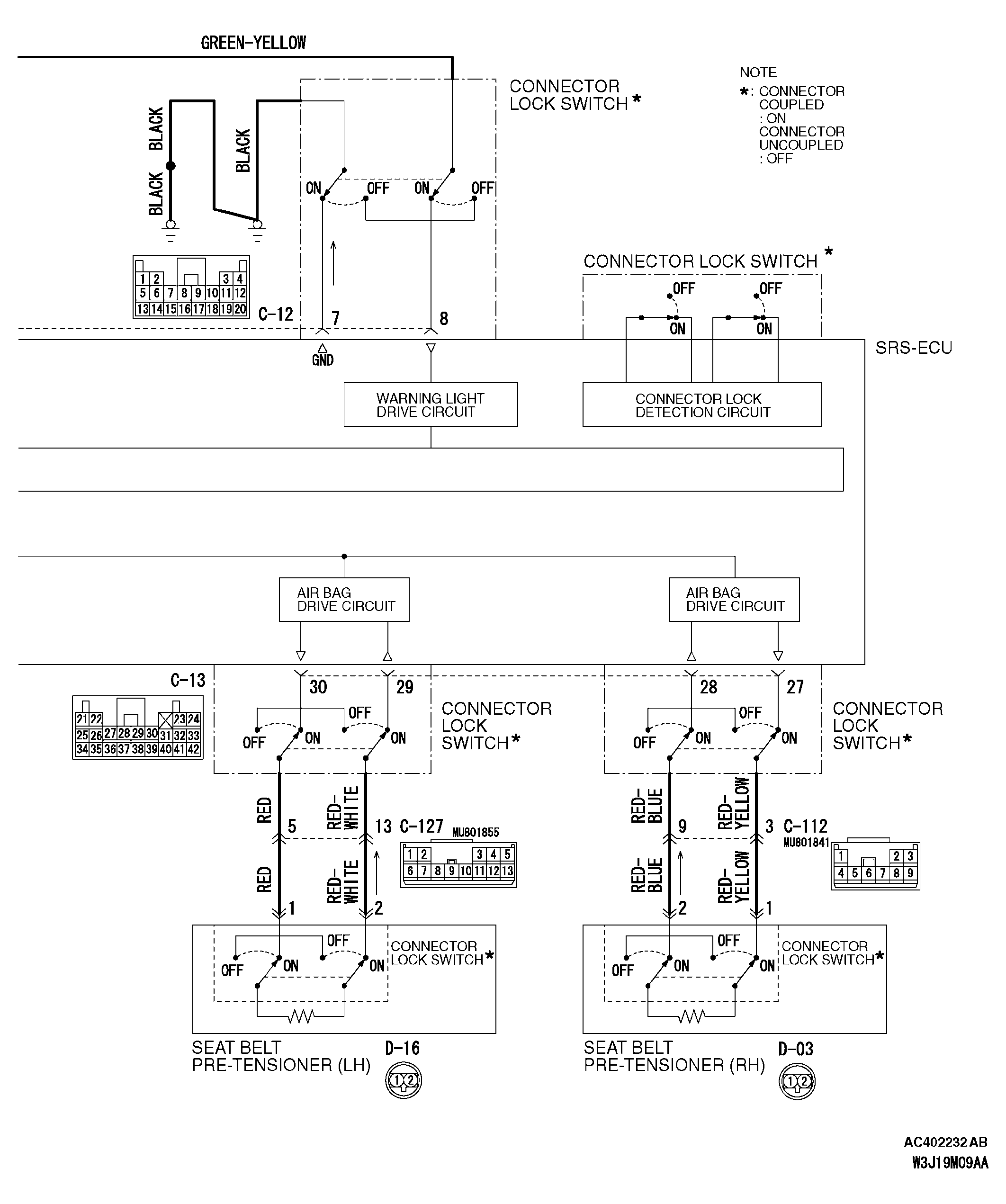

Fig 2: Circuit Diagram (2 Of 3)
G04297888Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

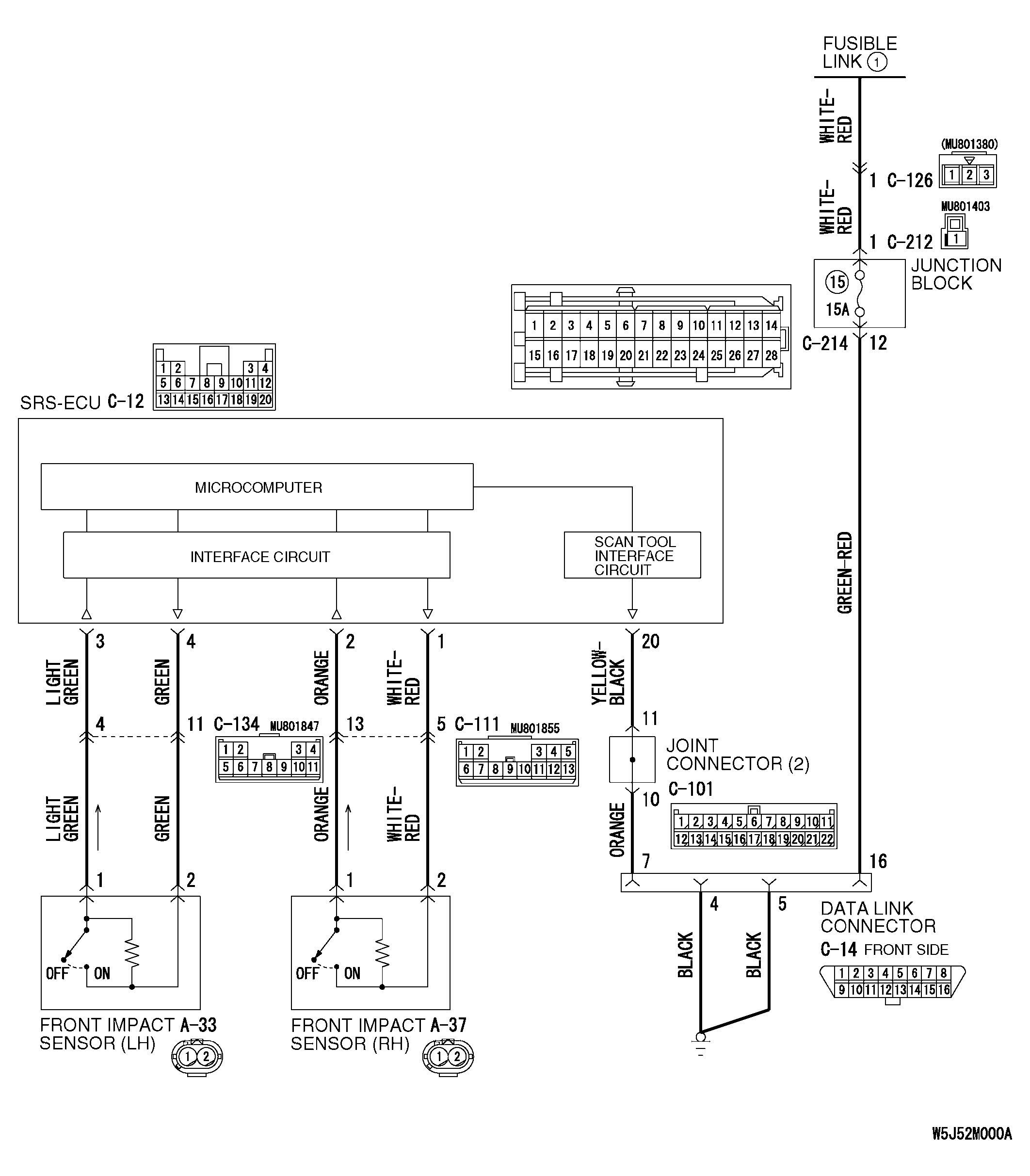

Fig 3: Circuit Diagram (3 Of 3)
G04297889Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
