Component Location

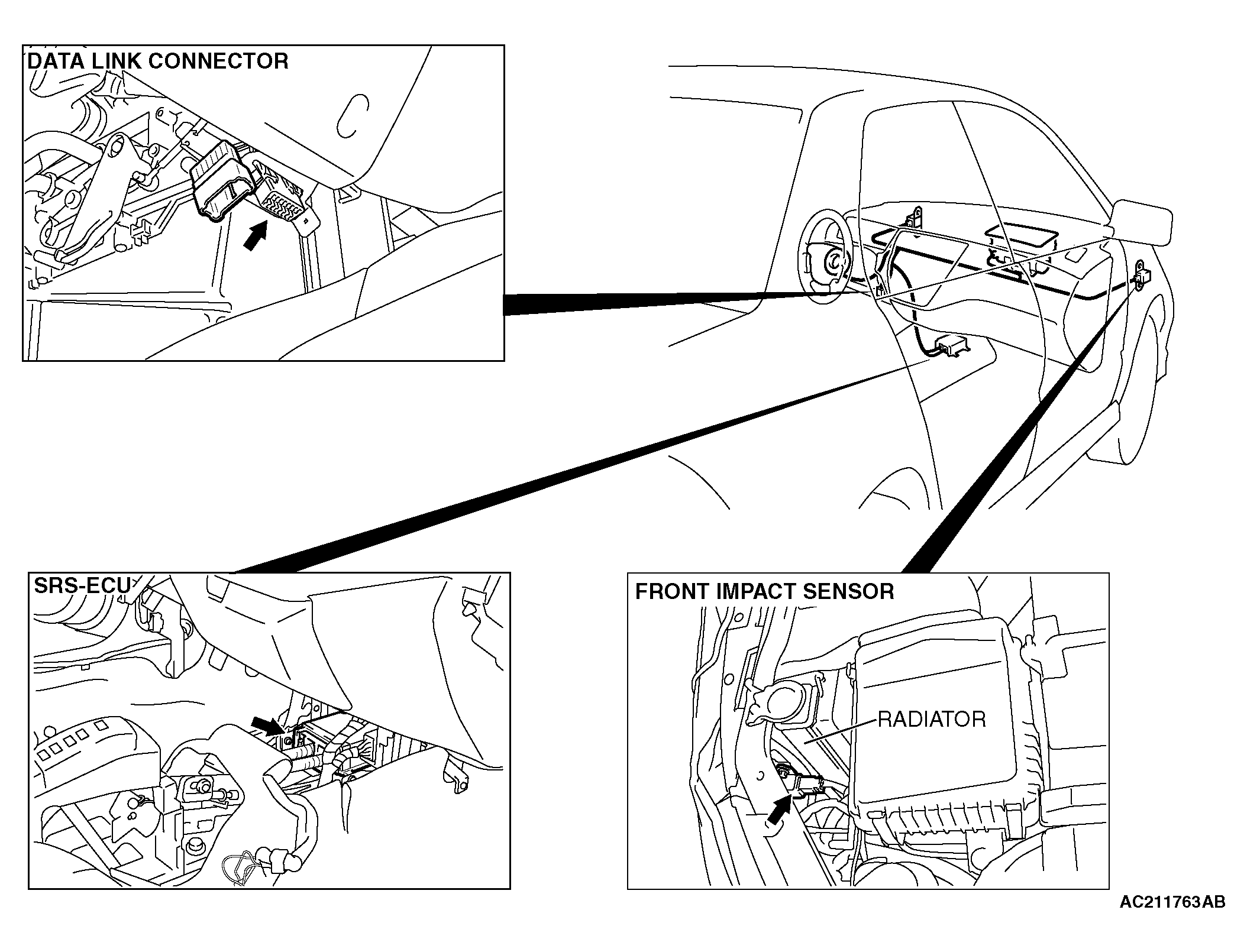

Fig 1: Identifying SRS Component Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The illustration above shows the front impact sensor (LH). The position of the side impact sensor (RH) is symmetrical to this.
