Supplemental Restraint System - Lancer Evolution: General Description: Schematic

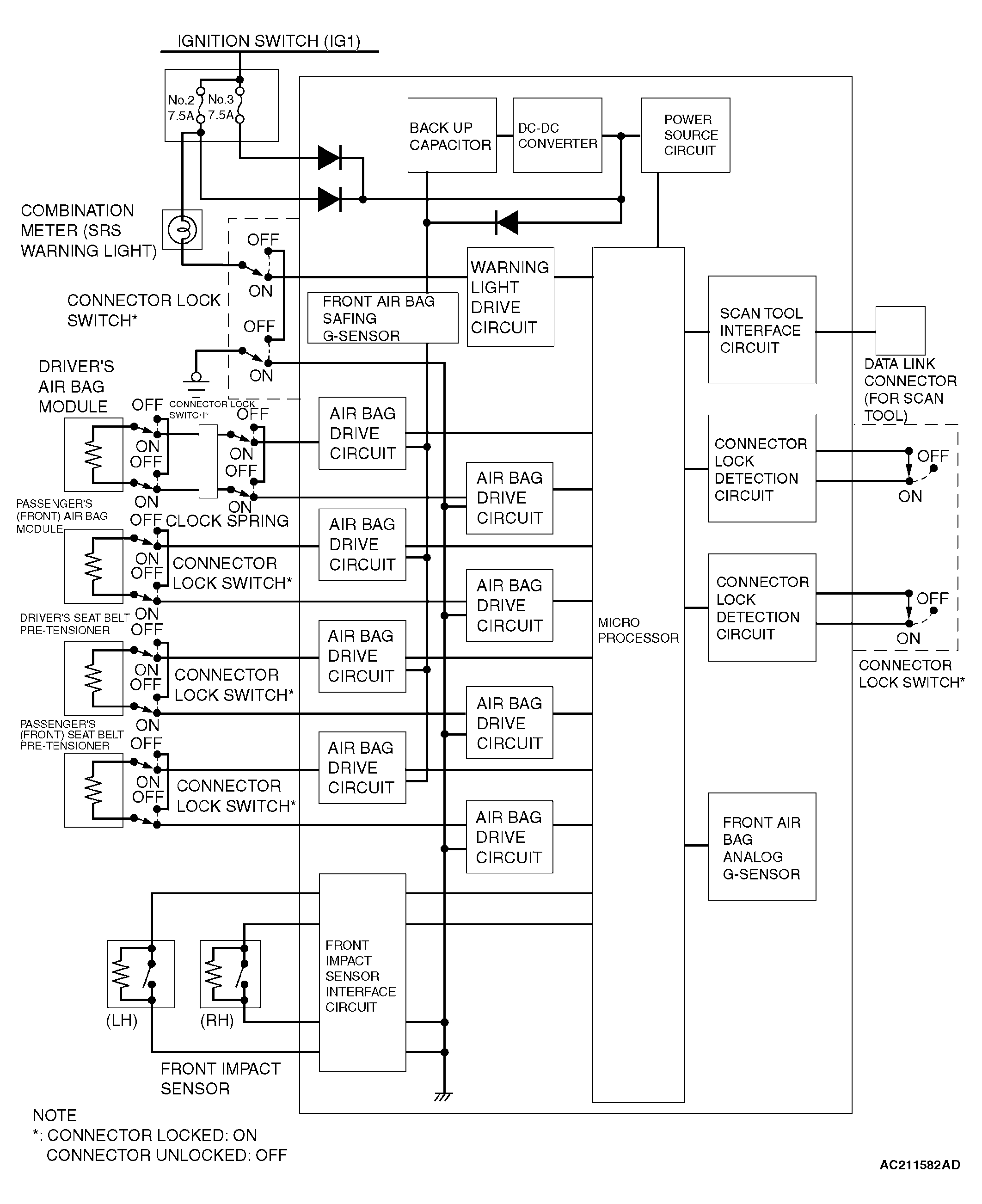

Fig 1: Schematic Diagram
G04297882Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
