Removal And Installation: Notes

WARNING:
  • Never attempt to disassemble or repair the SRS-ECU. If faulty, replace it.
  • Do not drop or subject the SRS-ECU to impact or vibration. If denting, cracking, deformation, or rust are discovered in the SRS-ECU, replace it with a new SRS-ECU. Discard the old one.
  • After deployment of an air bag, replace the SRS-ECU with a new one.
  • Never use an ohmmeter on or near the SRS-ECU, and use only the special test equipment described on TEST EQUIPMENT  .

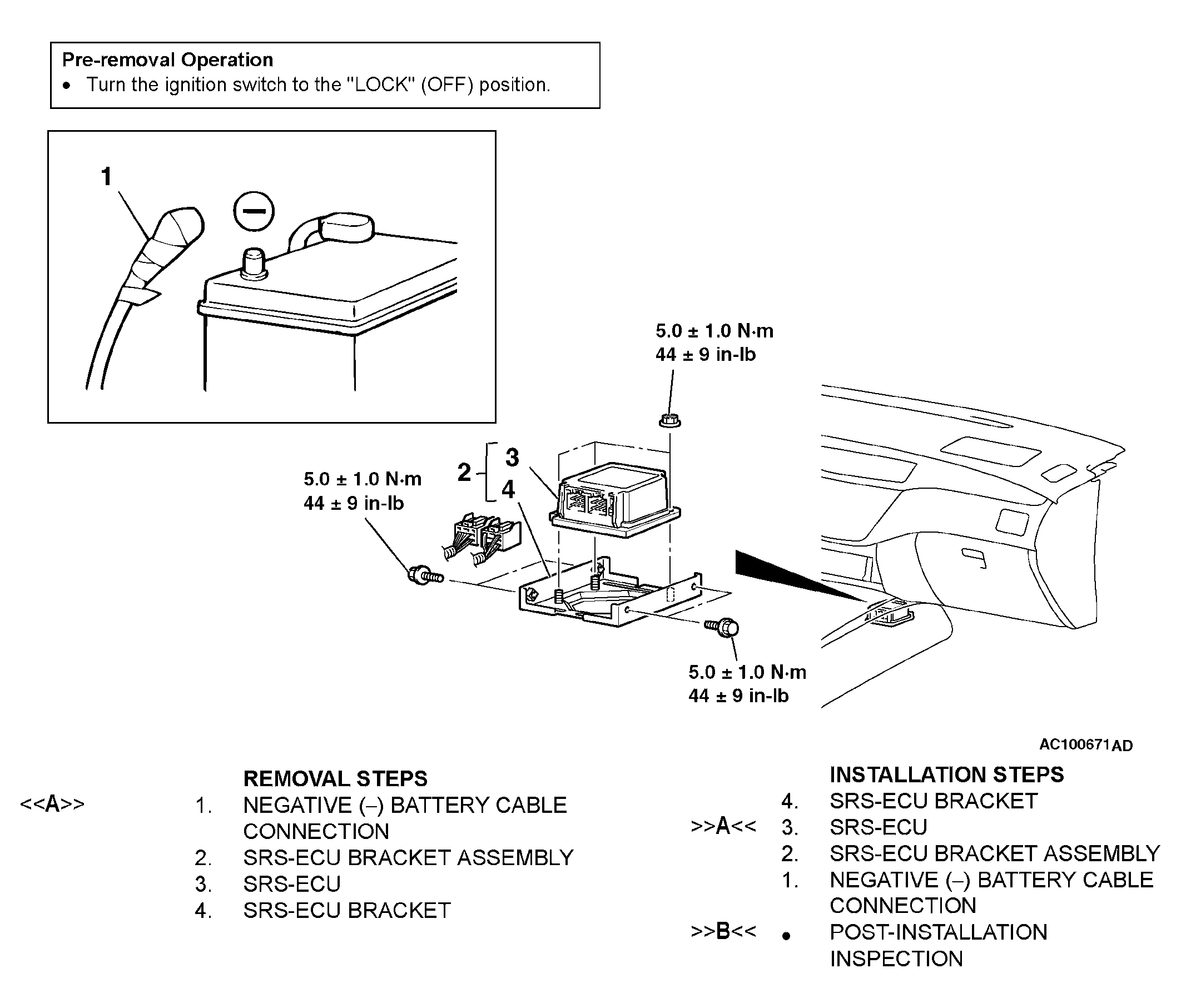

    Fig 1: Identifying SRS Control Unit (SRS-ECU)
    G04298196Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
