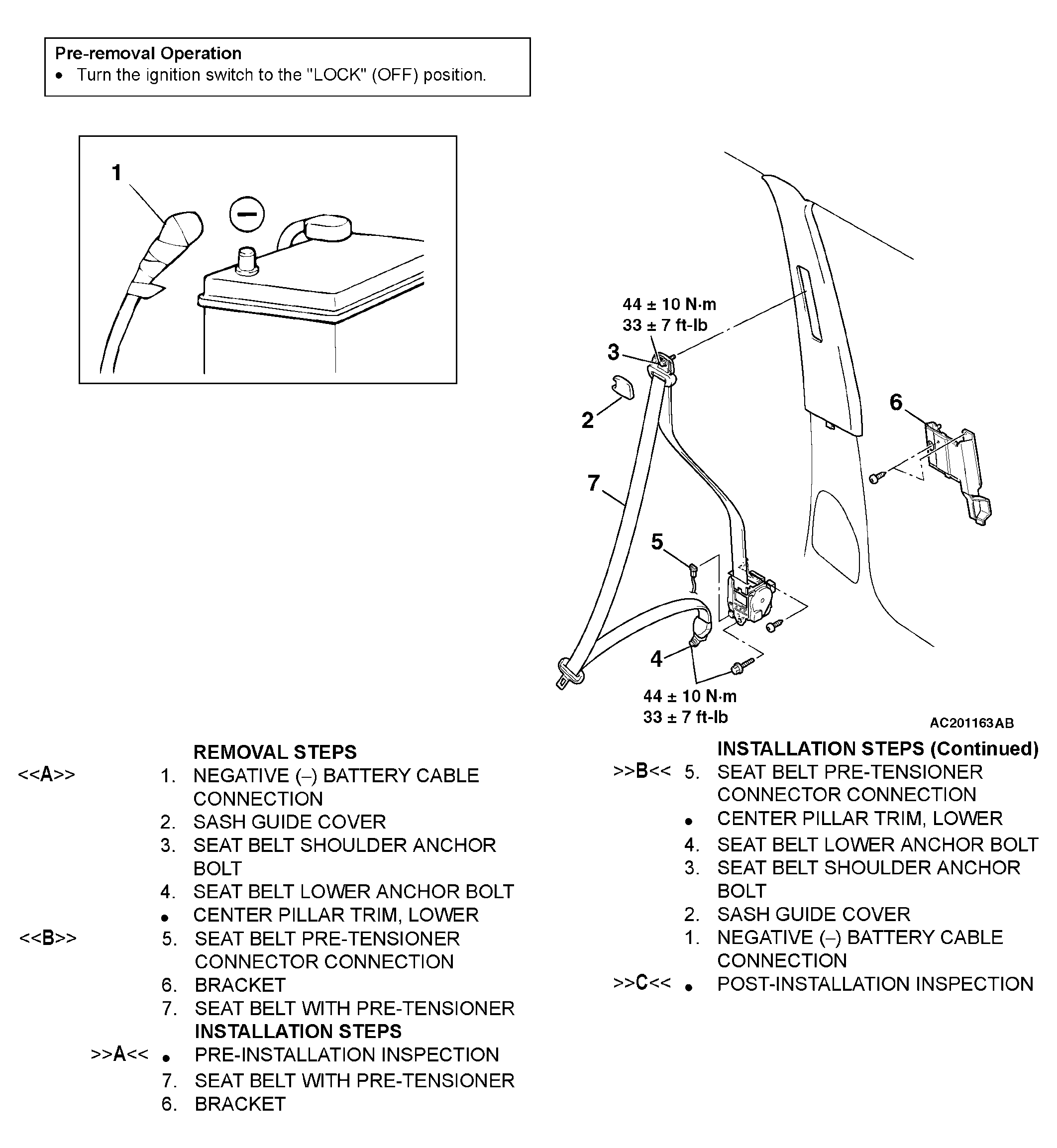

Removal And Installation: Notes
WARNING:
- Never attempt to disassemble or repair the seat belt with pre-tensioner. If faulty, replace it.
- Be extremely careful when handling the seat with pre-tensioner. Do not subject it to shocks, drop it, bring it close to strong magnets or allow contact with water, grease or oil. Always replace it with a new part if any dents, cracks or deformation is found.
- Do not place anything on top of the seat belt pre-tensioner.
- Do not expose the seat belt with pre-tensioner to temperatures over 90 ° C (194 °F).
- After operating the seat belt pre-tensioner, replace the seat belt with pre-tensioner with a new part.
- Wear gloves and safety glasses when handling seat belt pre-tensioners that have already deployed.
- If disposing of a seat belt with pre-tensioner which has not yet been used, its seat belt pre-tensioner should be operated first before disposal (Refer to AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES ).
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991911: M.U.T.-III Main Harness B
