Special Tools

SPECIAL TOOLS CHART

TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION

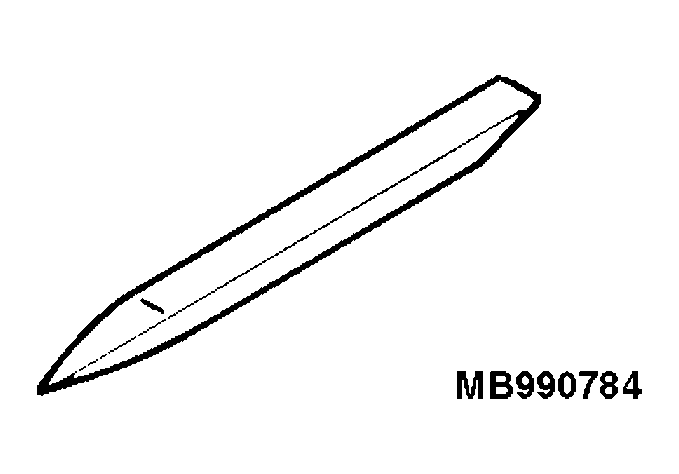

MB990784 Ornament remover	General service tool	Removal of cover.

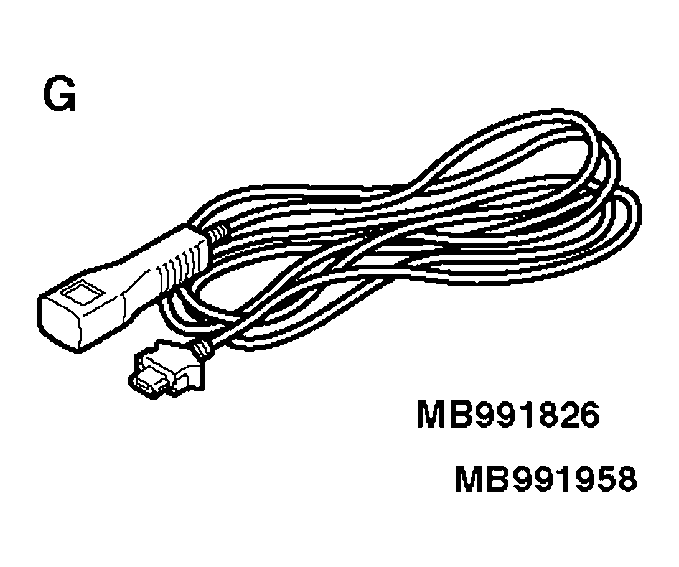

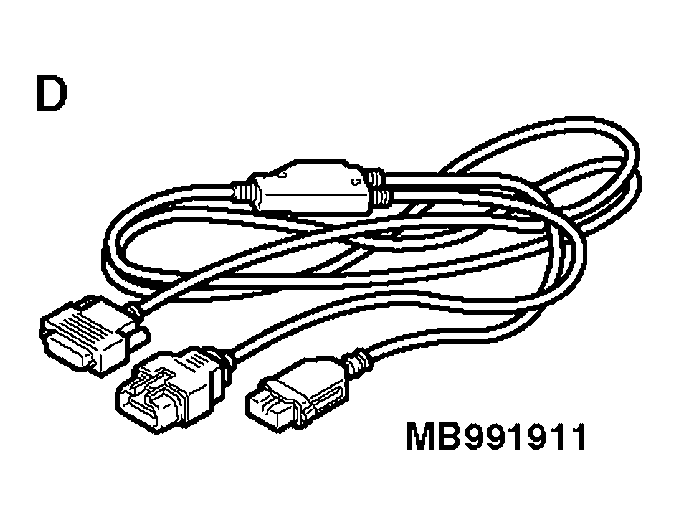

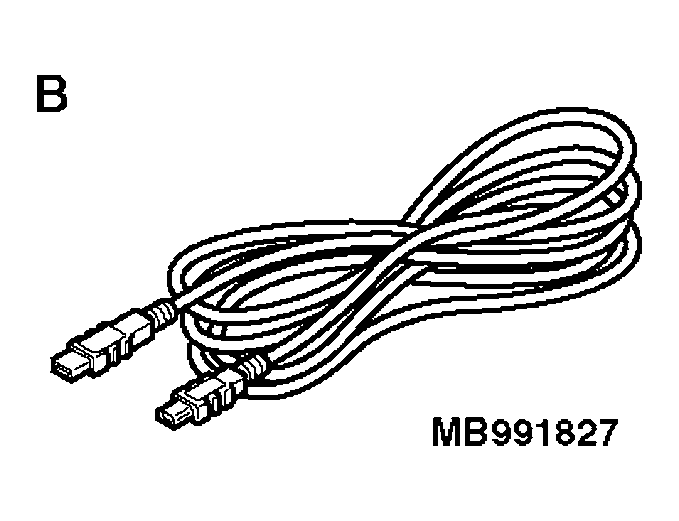

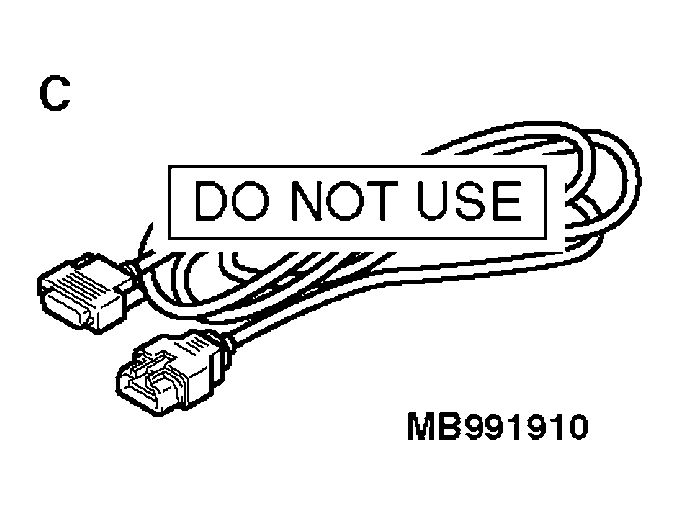

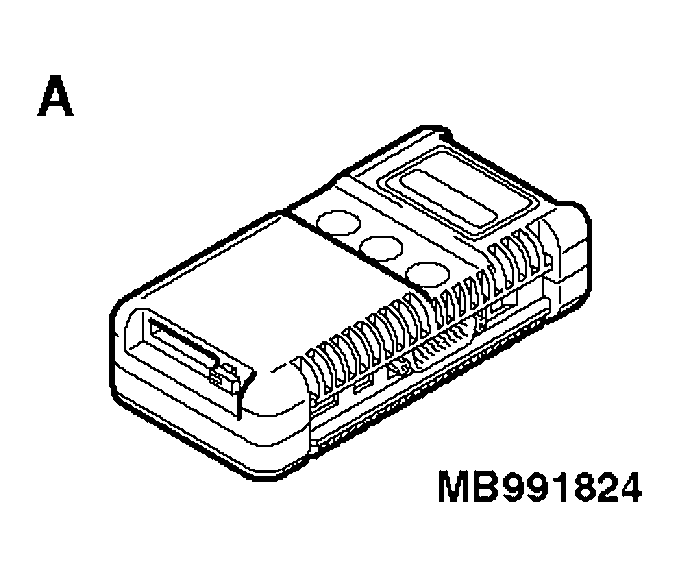

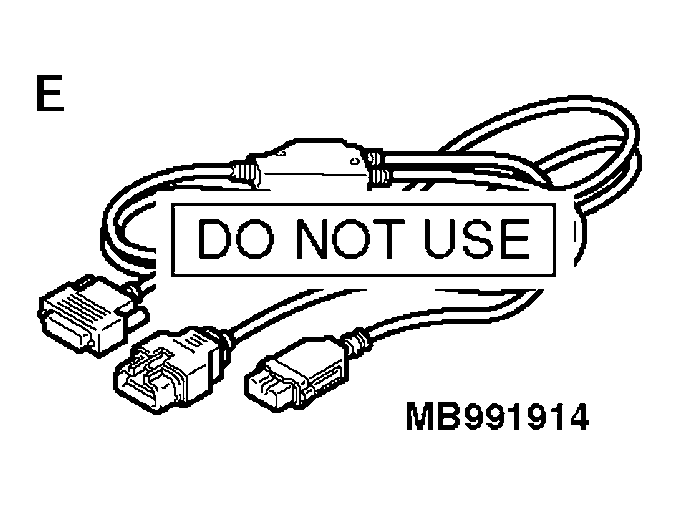

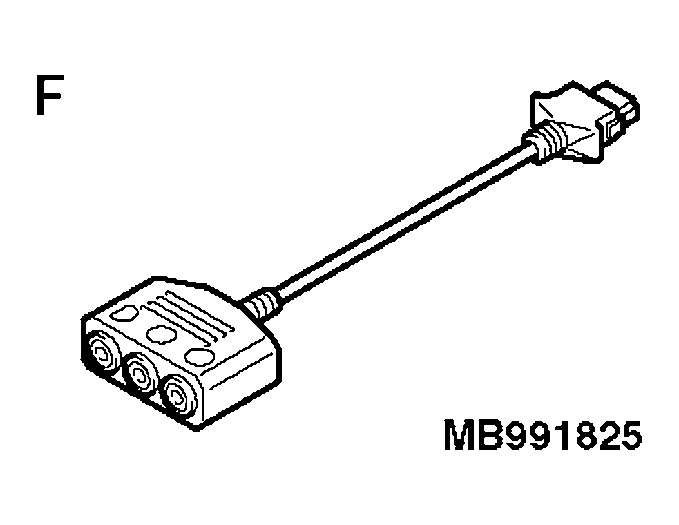

MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 Scan tool (M.U.T.-III sub assembly) Vehicle communication interface (V.C.I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Daimler Chrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.	Checking diagnostic trouble code CAUTION: M.U.T.-III main harness B (MB991911) should be used. M.U.T.-III main harness A and C should not be used for this vehicle.

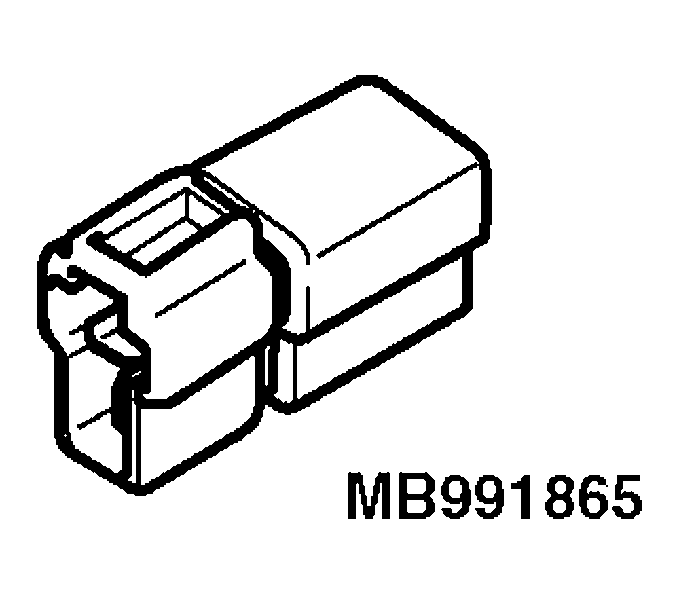

MB991865 Dummy resistor		SRS air bag circuit check

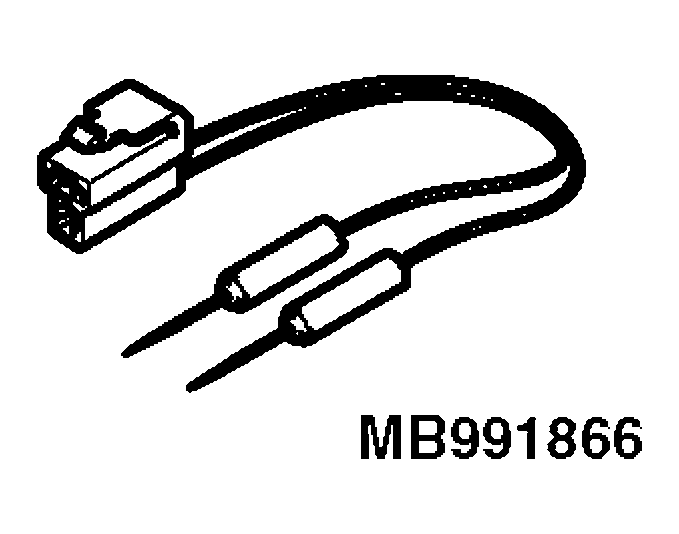

MB991866 Resistor harness		SRS air bag circuit check

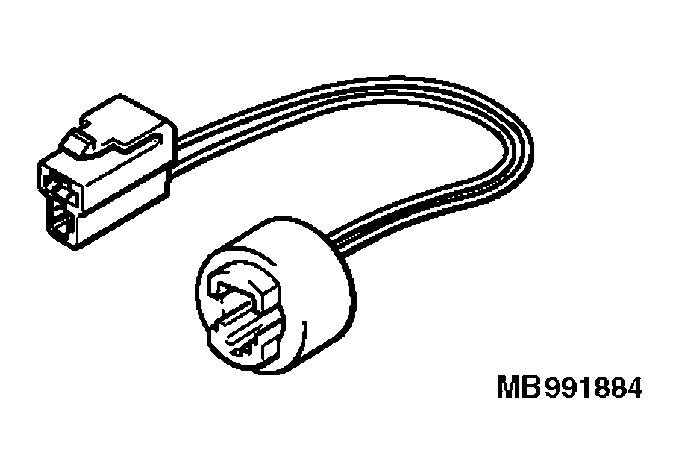

MB991884 Resistor harness	Resistor harness (For Pre-tensioner)	Seat belt with pre-tensioner circuit check

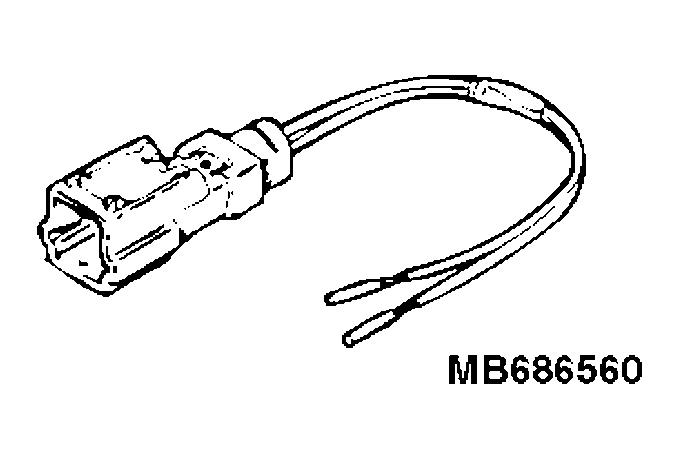

MB686560 SRS air bag adapter harness	General service tool	Deployment of passenger's (front) air bag module inside the vehicle Deployment of passenger's (front) air bag module

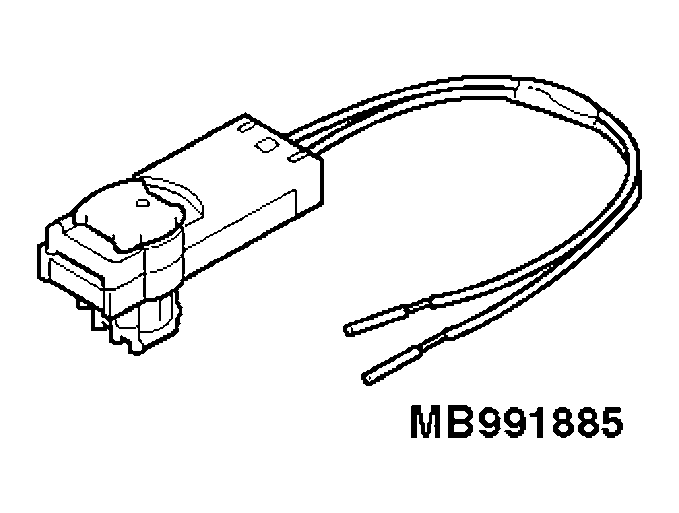

MB991885 Adapter harness	Pre-tensioner adapter harness	Deployment of seat belt with pre-tensioner inside the vehicle Deployment of seat belt with pre-tensioner outside the vehicle

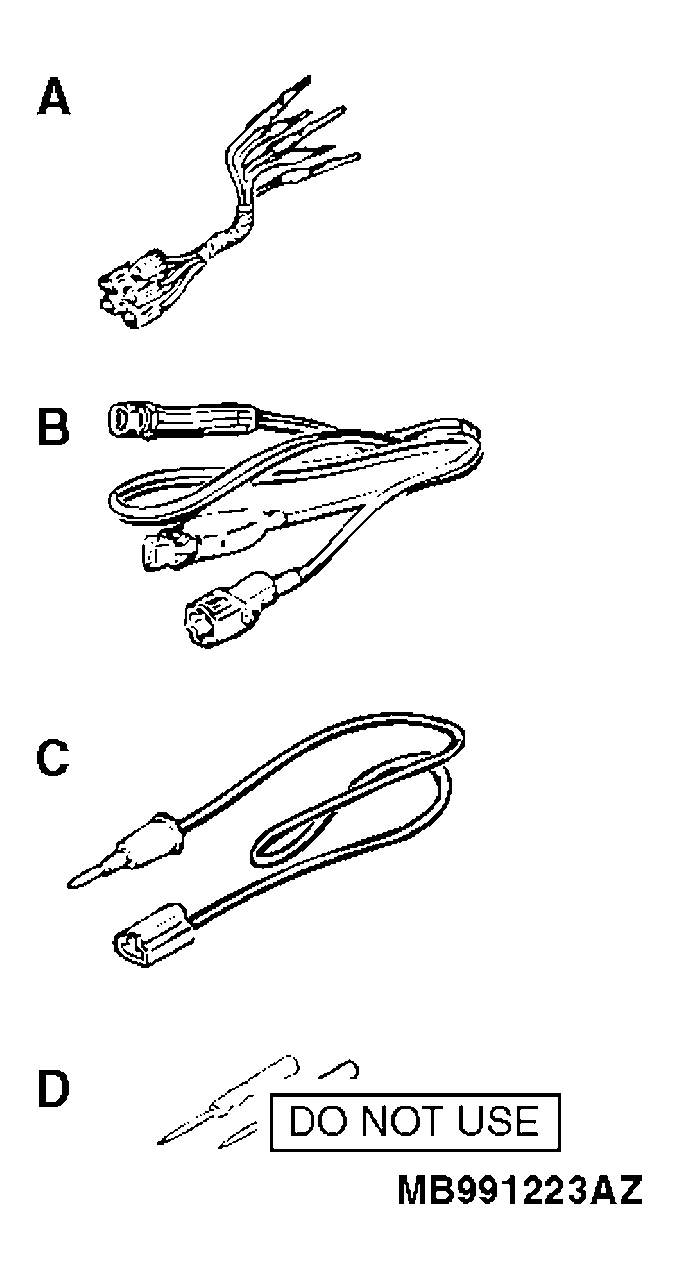

MB991223 MB991219 MB991220 MB991221 MB991222 Harness set Test harness LED harness LED harness adapter Probe	General service tools	Checking the continuity and measuring the voltage at the SRS-ECU harness connector

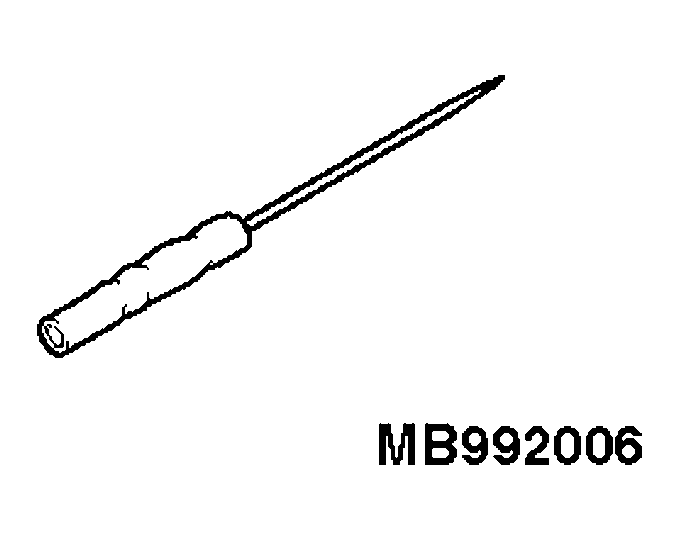

MB992006 Extra fine probe	General service tool	Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
