Special Tool

SPECIAL TOOL

TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION
	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 MUT-III sub assembly Vehicle communication interface (V.C.I.) MUT-III USB cable MUT-III main harness A (Vehicles with CAN communication system) MUT-III main harness B (Vehicles without CAN communication system) MUT-III main harness C (for Daimler Chrysler models only) MUT-III measurement adapter MUT-III trigger harness	MB991824-KIT NOTE: G: MB991826 MUT-III trigger harness is not necessary when pushing V.C.I. ENTER key.	Checking diagnostic trouble codes CAUTION: If you connect MUT-III main harness A to a vehicle without CAN communication system to use the MUT-III, a pulse signal may interfere with the simulated vehicle speed lines, thus causing the MUT-III inoperative. Therefore, use the MUT - III main harness B (MB991911) instead.

TOOL

TOOL NUMBER AND NAME

SUPERSESSION

APPLICATION

MB991958

MB991824
MB991827
MB991910
MB991911
MB991914
MB991825
MB991826

MUT-III sub assembly

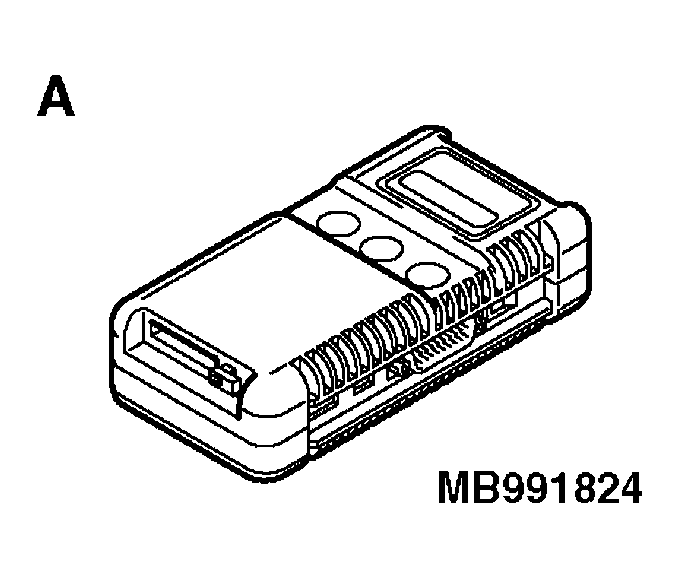

Vehicle communication interface (V.C.I.)

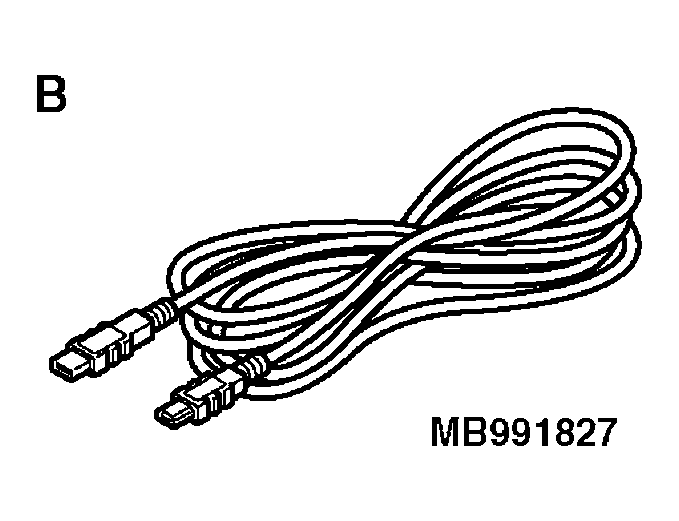

MUT-III USB cable
MUT-III main harness A (Vehicles with CAN communication system)

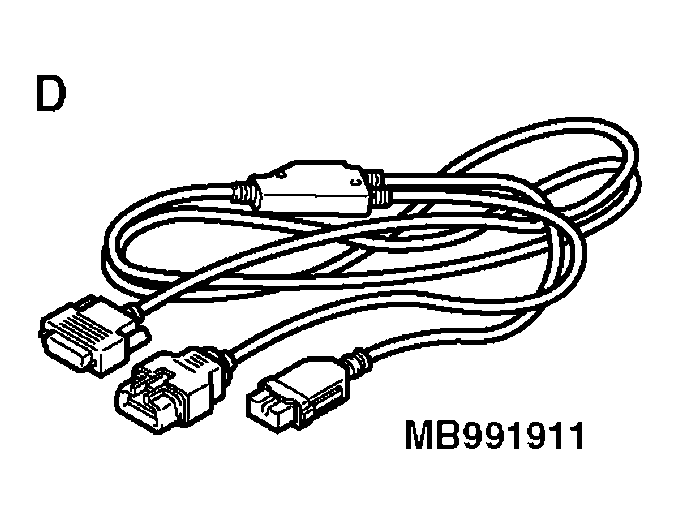

MUT-III main harness B (Vehicles without CAN communication system)
MUT-III main harness C (for Daimler Chrysler models only)

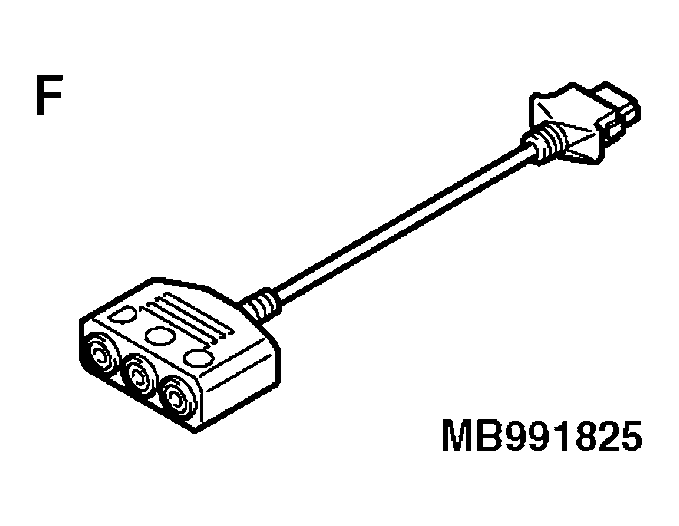

MUT-III measurement adapter

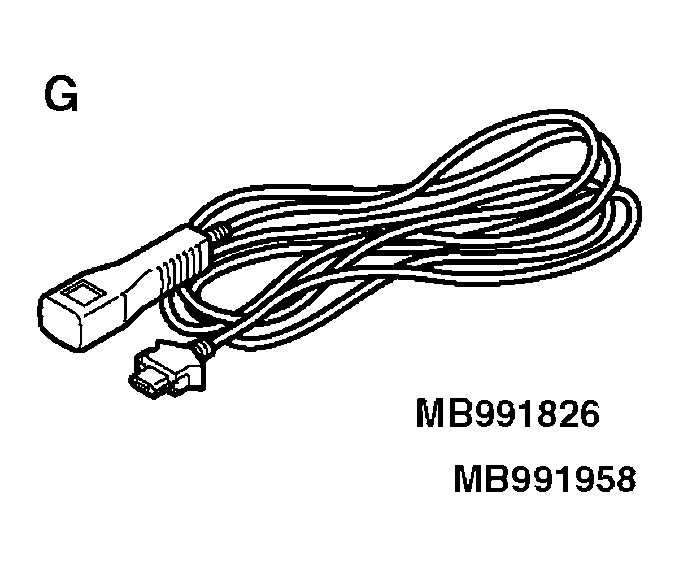

MUT-III trigger harness

MB991824-KIT

NOTE: G: MB991826 MUT-III trigger harness is not necessary when pushing V.C.I. ENTER key.

Checking diagnostic trouble codes

CAUTION: If you connect MUT-III main harness A to a vehicle without CAN communication system to use the MUT-III, a pulse signal may interfere with the simulated vehicle speed lines, thus causing the MUT-III inoperative. Therefore, use the MUT - III main harness B (MB991911) instead.
