Clock Spring Check

If any malfunction is found in the following inspections, replace the clock spring with a new one.

1. Check the connectors and protective tube for damage, and the terminals for deformation.
2. Visually check the case for damage.
3. Check to see that there is a change (continuity) between the D-205 clock spring connector terminal 1 and D-228 horn switch connector.

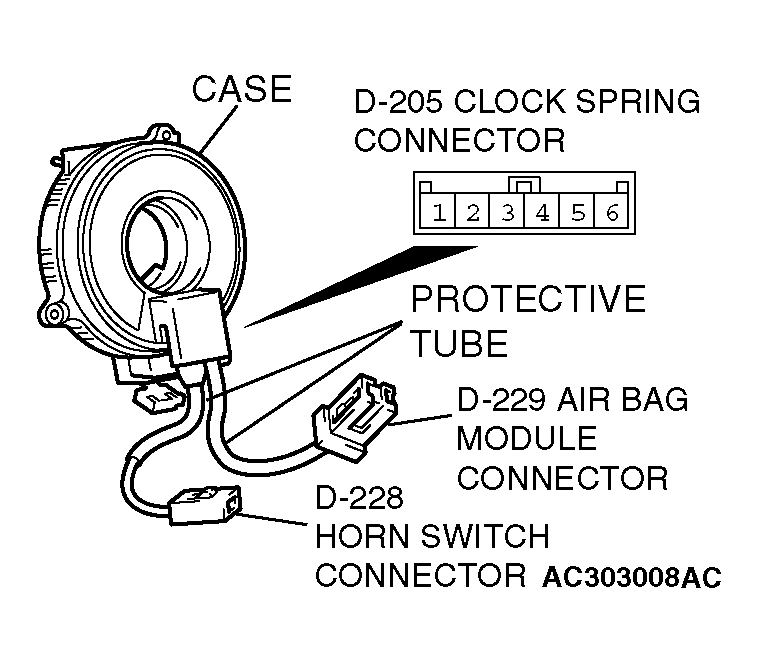

   Fig 1: Checking Between D-205 Clock Spring Connector Terminal 1 And D-228 Horn Switch Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   CAUTION: Do not insert the probe directly to the terminal from the front of the connector.
4. Insert special tool MB992006 from behind the air bag module connector of the D-229 driver's side.
5. As shown in the Figure, connect the circuit tester to special tool MB992006 and check to see that there is a charge between the terminals.

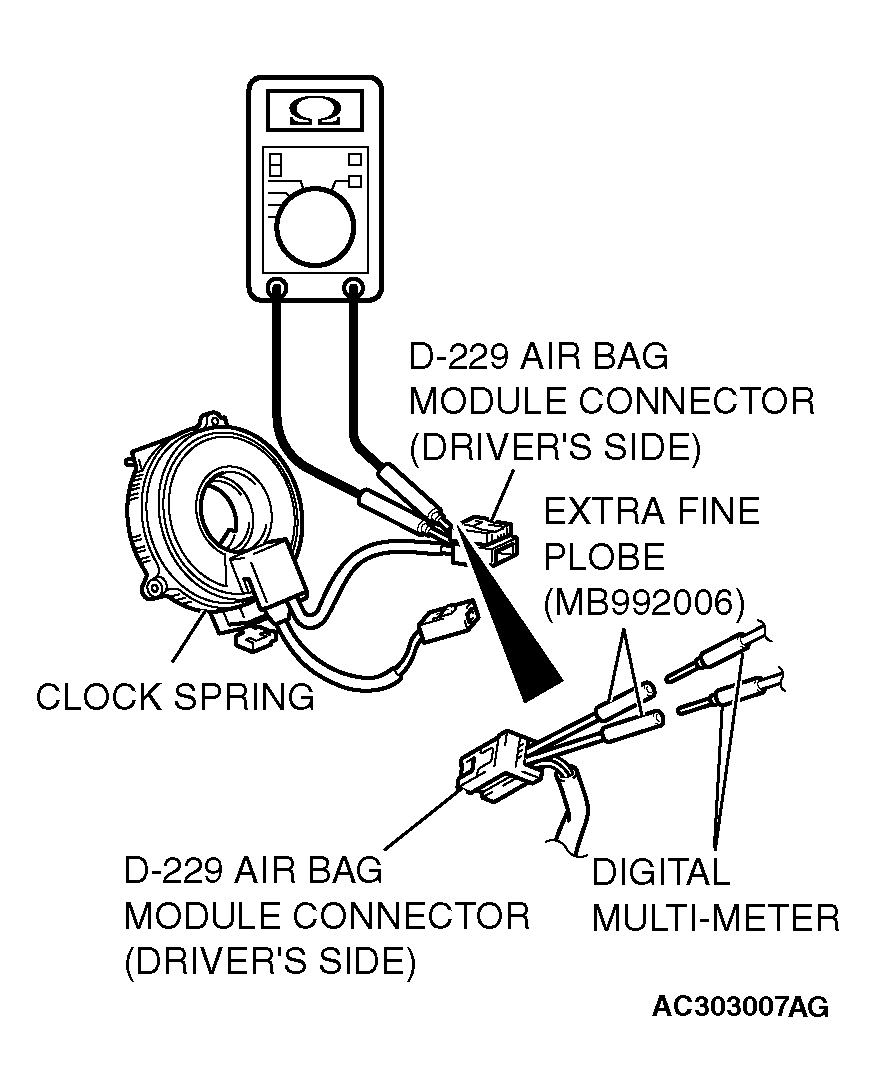

   Fig 2: Inserting Special Tool From Behind Air Bag Module Connector Of D-229 Driver's Side

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
