Front Seatback Assembly With Side-Airbag Module Check
WARNING:
Never attempt to measure the circuit resistance of the air bag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental air bag deployment will result in serious personal injury.
WARNING:
If any improper part is found during the following inspection, replace the front seatback assembly with a new one. Dispose of the old one according to the specified procedure (Refer to AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES
).

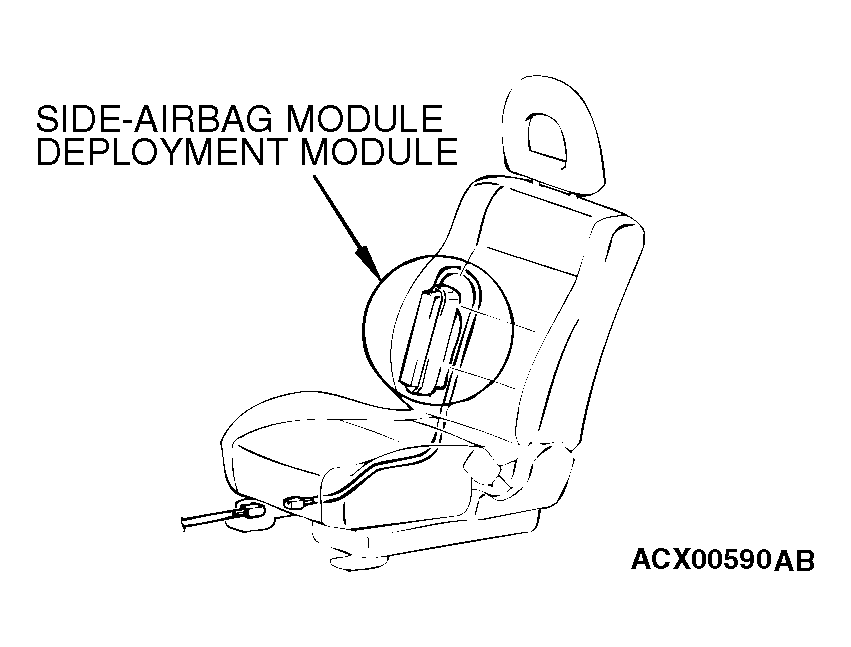

- Check the air bag module deployment section for dents or deformation.
- Check the connector for damage, the terminals for deformation, and the harness for binds.
