Front Impact Sensors: Inspection

WARNING: If a dent, crack, deformation or rust is detected, replace with a new sensor.

Check the front impact sensor for dents, cracks, deformation or rust.
WARNING: Always replace the sensor with a new one of the resistance is not within the standard value.
Measure the resistance between the terminals and check whether it is within the standard value.
Standard value: 820 +/- 82 Ω

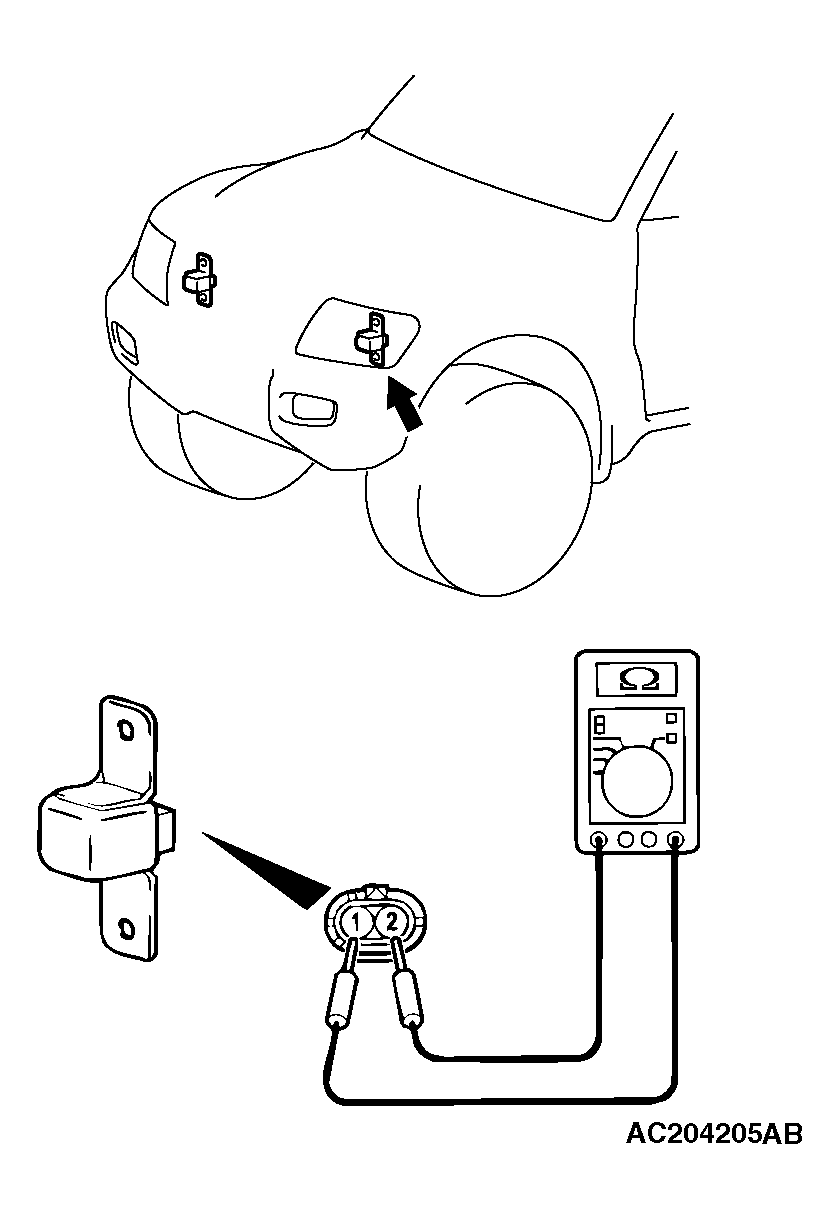

Fig 1: Measuring Resistance Between Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check for continuity between the terminal and the bracket.
When there is continuity, it shows insufficient insulation of the sensor. Replace the sensor with a new one.
Deformation and rust on the headlight support panel.

Fig 2: Checking Continuity Between Terminal And Bracket
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
