Supplemental Restraint System: General Description: Schematic

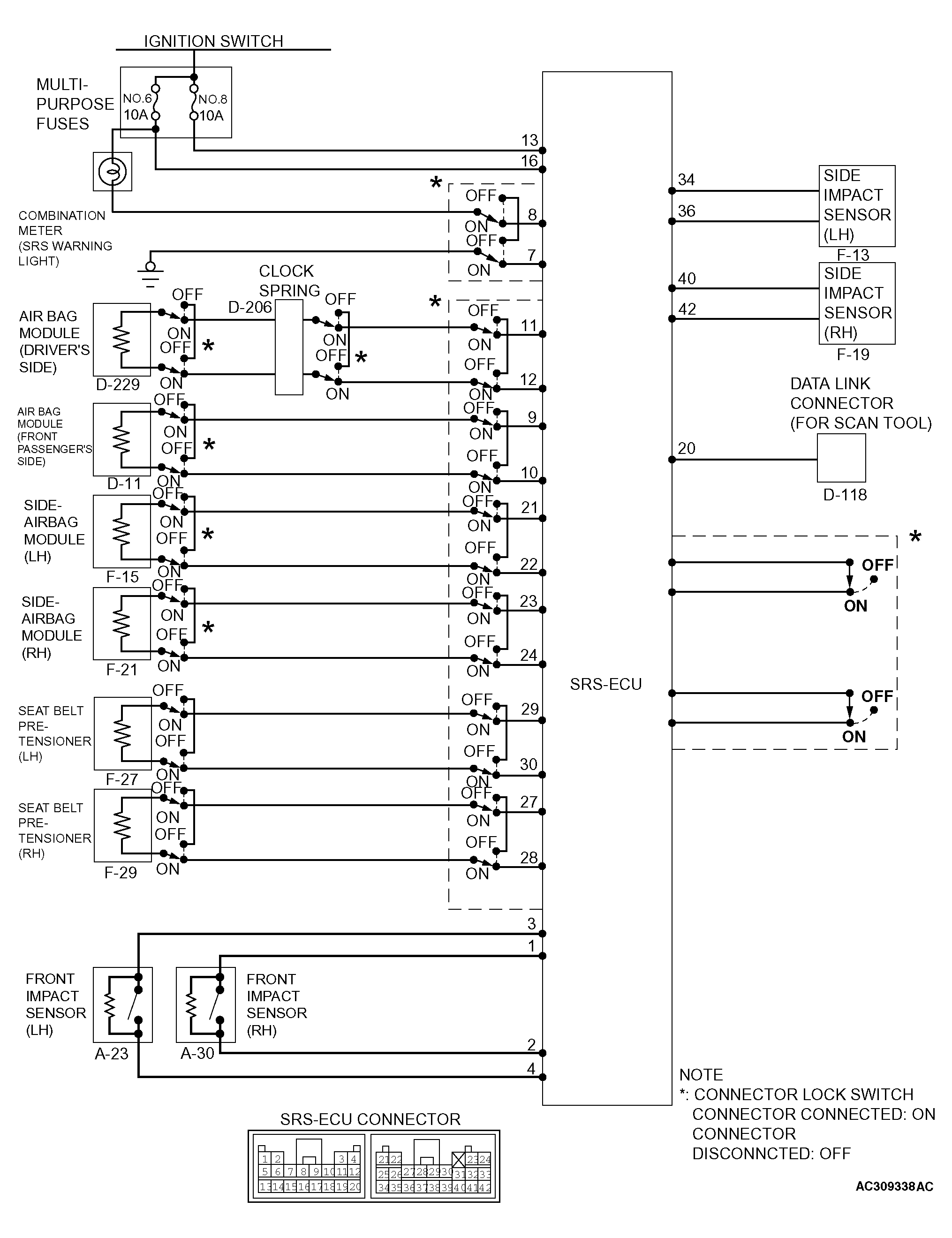

Fig 1: Schematic Diagram

G04267882

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
