Warning/Caution Labels

A number of caution labels related to the SRS are found in the vehicle, as shown in the following illustration. Follow label instructions when servicing SRS. The label K is not to be removed except by owner. If the other labels are dirty or damaged, replace them.

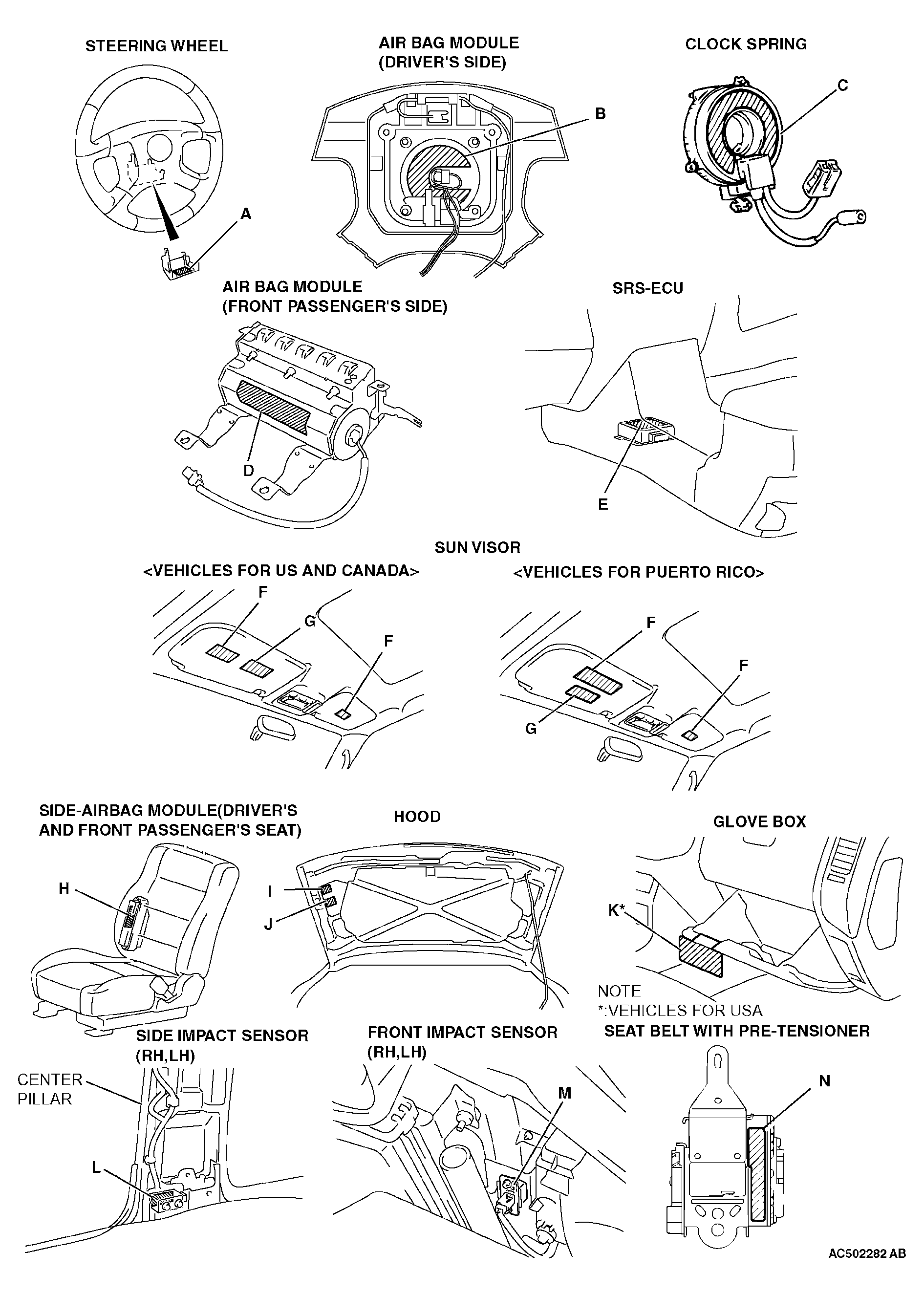

Fig 1: Identifying Warning/Caution Labels Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

LABEL CONTENTS REFERENCE

LABEL CONTENTS
A	CAUTION: SRS BEFORE REPLACING STEERING WHEEL, READ SERVICE INFORMATION. THIS AIR BAG MODULE CANNOT BE REPAIRED. DO NOT DISASSEMBLE OR TAMPER.
B	WARNING: FLAMMABLE MATERIAL TO PREVENT PERSONAL INJURY. DO NOT DISMANTLE. INCINERATE OR BRING INTO CONTACT WITH ELECTRICITY, STORE BELOW 200°F (93°C). READ SERVICE INFORMATION FOR DETAIL.
C	CAUTION: SRS CLOCKSPRING THIS IS NOT A REPAIRABLE PART. IF DEFECTIVE REPLACE ENTIRE UNIT ACCORDING TO THE SERVICE INFORMATION INSTRUCTIONS. TO RE-CENTER: ROTATE CLOCKWISE UNTIL TIGHT. THEN ROTATE IN OPPOSITE DIRECTION ROUGHLY 3 3/4 TURNS AND ALIGN ARROWS ><.
D, H	WARNING: FLAMMABLE/EXPLOSIVE SRS AIR BAG MODULE TO AVOID SERIOUS INJURY: DO NOT REPAIR, DISASSEMBLE OR TAMPER. AVOID CONTACT WITH FLAME OR ELECTRICITY. DO NOT DIAGNOSIS/USE NO TEST EQUIPMENT OR PROBES. STORE BELOW 200°F (93°C). BEFORE DOING ANY WORK INVOLVING MODULE, READ SERVICE INFORMATION FOR IMPORTANT FURTHER DATA.
E, L	CAUTION: DO NOT DISASSEMBLE OR DROP. IF DEFECT REFER TO SERVICE INFORMATION .
F	WARNING: DEATH or SERIOUS INJURY can occur Children 12 and under can be killed by the air bag. The BACK SEAT is the SAFEST place for children. NEVER put a rear-facing child seat in the front. Sit as far back as possible from the air bag. ALWAYS use SEAT BELTS and CHILD RESTRAINTS.
G	WARNING: HIGHER ROLLOVER RISK Avoid Abrupt Maneuvers and Excessive Speed. Always Buckle Up. See Owner's Manual for Further Information.
I	< VEHICLES FOR CANADA > ATTENTION CE VEHICULE EST EQUIPE D.UN SYSTEME A COUSSIN A AIR DU COTE DU CONDUCTEUR. CONSULTER LE MANUEL D.ENTRETIEN AVANT TOUT TRAVALL OU DEMONTAGE SOUS LE CAPOT. IL EST EGALEMENT IMPORTANT DE LIRE LA PRESENTATION DE CET EQUIPEMENT DANS LE MANUEL (SECTION SYSTEME DE RETENUE SUPPLEMENTAIRE). TOUTE MANIPULATION ERRONEE PENDANT LES TRAVAUX D.ENTRETIEN PEUT PRODUIRE LE GONFLEMENT INOPINE DU COUSSIN A AIR OU DE RENDRE LE SRS INEFFICACE, AVEC RISQUE DE BLESSURE.
J	WARNING: THIS VEHICLE HAS AN AIR BAG SYSTEM. REFER TO SERVICE INFORMATION BEFORE SERVICING OR DISASSEMBLING UNDERHOOD COMPONENTS. READ THE "SRS" SECTION OF SERVICE INFORMATION FOR IMPORTANT INSTRUCTIONS. IMPROPER SERVICE PROCEDURES CAN RESULT IN THE AIR BAG FIRING OR BECOMING INOPERATIVE, POSSIBLY LEADING TO INJURY.
K	WARNING: Children Can Be KILLED or INJURED by Passenger Air Bag. The back seat is the safest place for children 12 and under. Make sure all children use seat belts or child seats. Not to be removed except by owner.
M	CAUTION: DO NOT DISASSEMBLE OR DROP.
N	WARNING: SEAT BELT PRETENSIONER DO NOT IMPACT. DISMANTLE OR INSTALL IT INTO ANOTHER VEHICLE. SERVICE DISPOSE OF IT AS DIRECTED IN THE SERVICE INFORMATION.
