Side Impact Sensor

  1. Check that there is no bending or corrosion in the center pillar.
  2. Check that there is no denting, breakage or bending of the side impact sensor.
  3. Check that there is no clamping of the harness, connector damage or bent terminals.

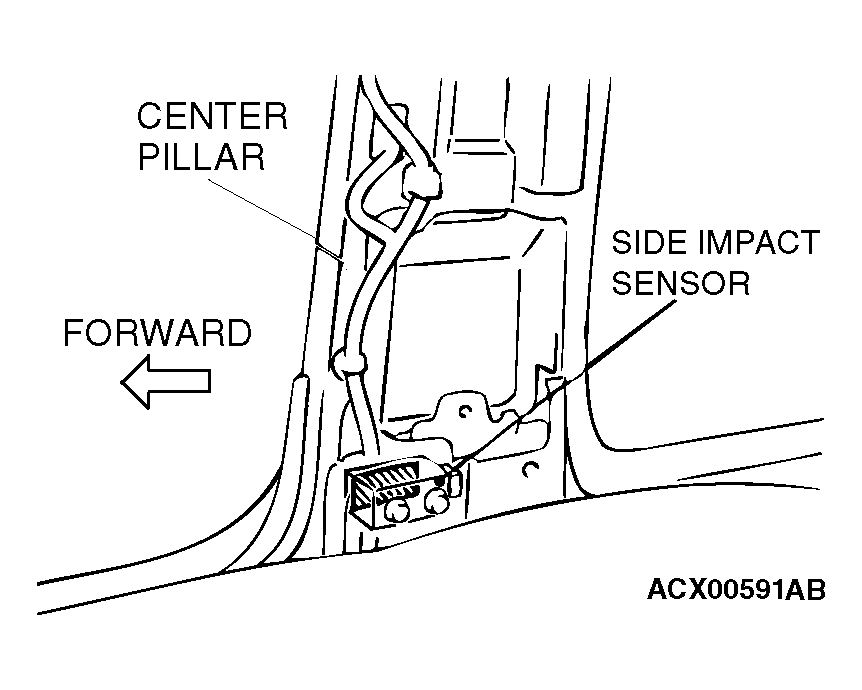

    NOTE: The illustration shows the side impact sensor (RH). The position of the side impact sensor (LH) is symmetrical to this.
    Fig 1: Checking Denting, Breakage Or Bending Of Side Impact Sensor
    G04268245Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
