Removal And Installation: Notes

A side impact sensor is installed behind the center pillar trim on both driver and passenger sides of the vehicle.

WARNING:
  • Never attempt to disassemble or repair the side impact sensor. If faulty, replace it.
  • Do not drop or subject the side impact sensor to impact or vibration. Replace the side impact sensor, if dents, cracking, deformation, or rust are present.
  • Replace the side impact sensor after the air bag has deployed.

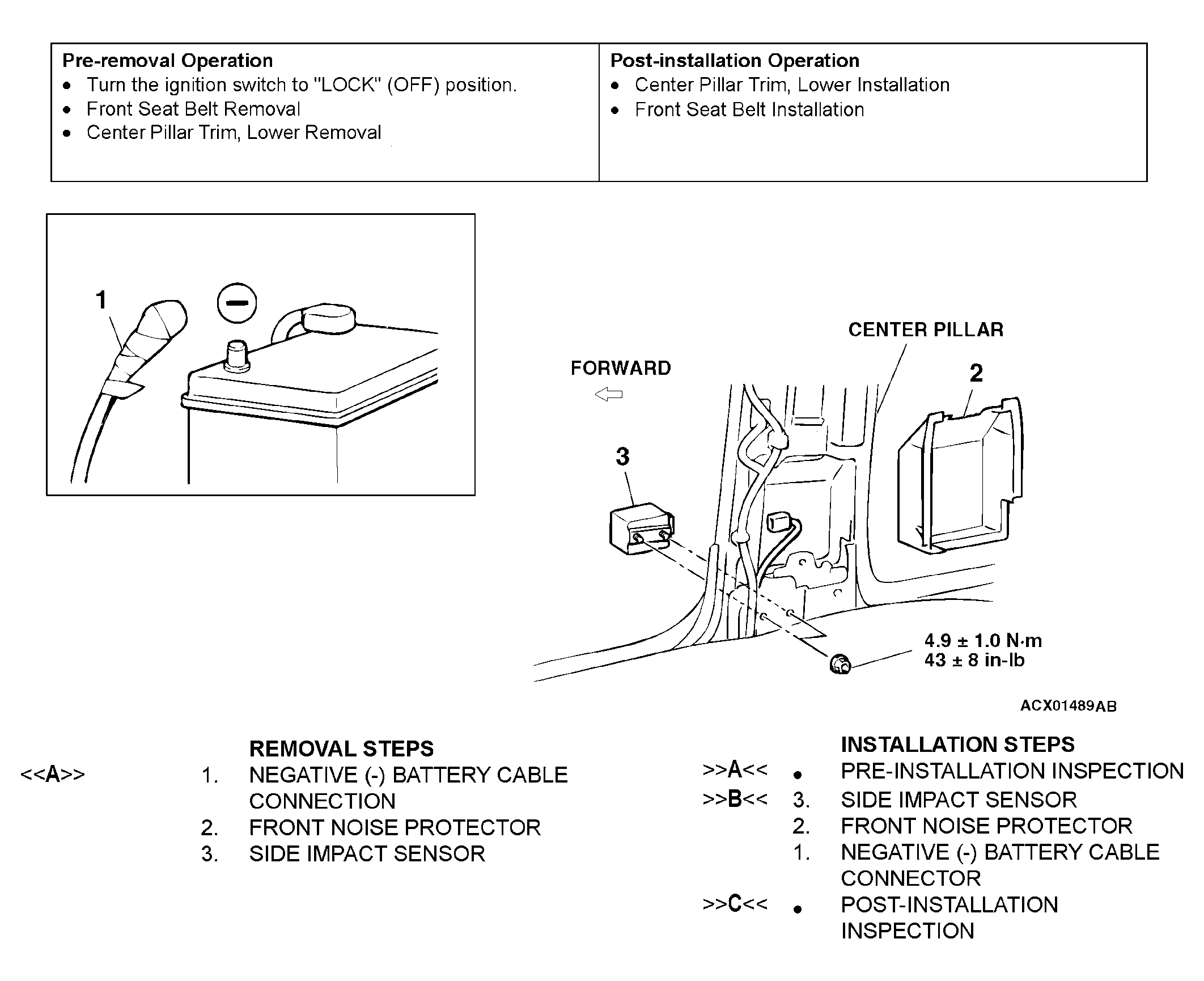

    Fig 1: Removal And Installation Of Side Impact Sensor
    G04268271Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The illustration above shows the side impact sensor (RH). The position of the side impact sensor (LH) is symmetrical to this.
