Special Tools

SPECIAL TOOLS DESCRIPTION

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION

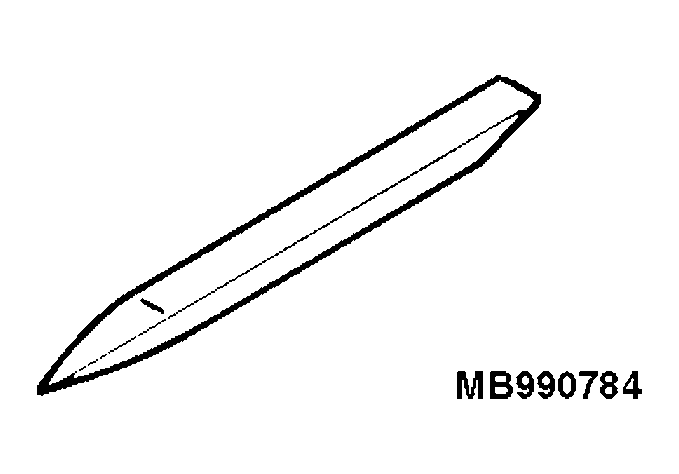

G04268225
 MB990784 Ornament remover General service tool Removal of cover.
G04268226G04268227G04268228G04268229G04268230G04268231G04268232
G04268226G04268227G04268228G04268229G04268230G04268231G04268232
G04268226G04268227G04268228G04268229G04268230G04268231G04268232
G04268226G04268227G04268228G04268229G04268230G04268231G04268232
G04268226G04268227G04268228G04268229G04268230G04268231G04268232
G04268226G04268227G04268228G04268229G04268230G04268231G04268232
G04268226G04268227G04268228G04268229G04268230G04268231G04268232
 MB991958

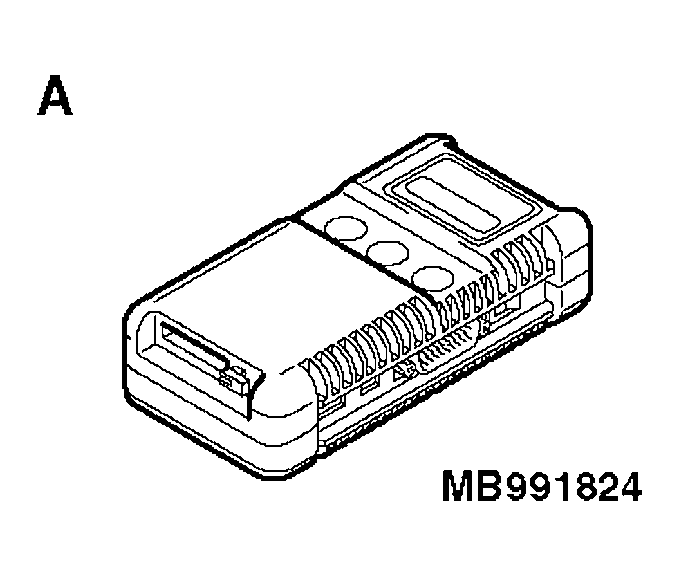

  1. : MB991824

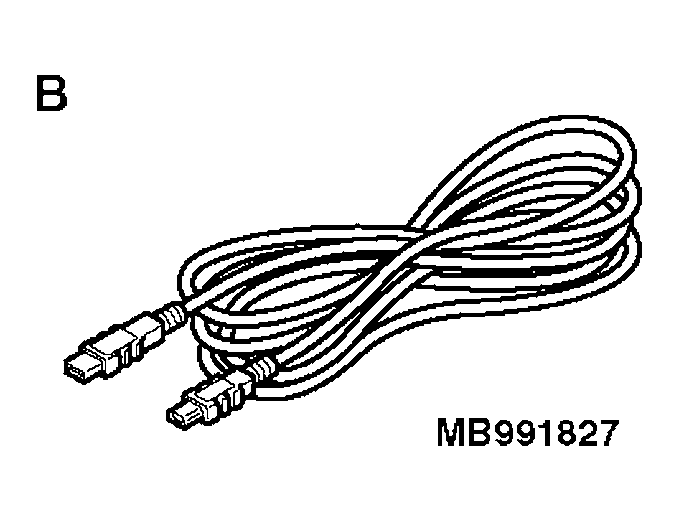

  2. : MB991827

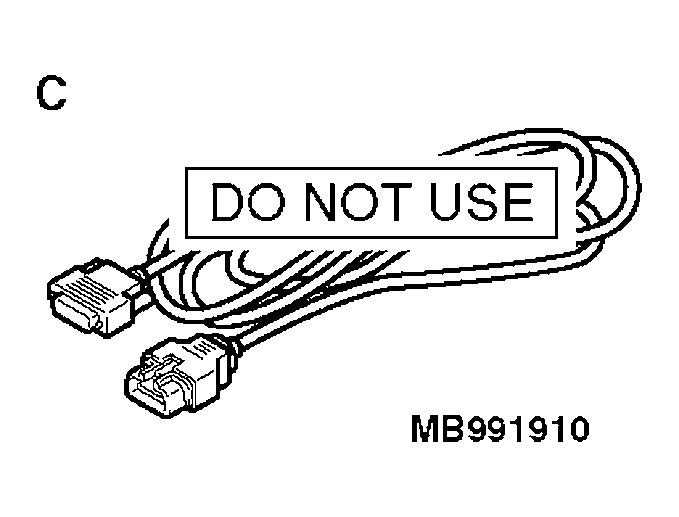

  3. : MB991910

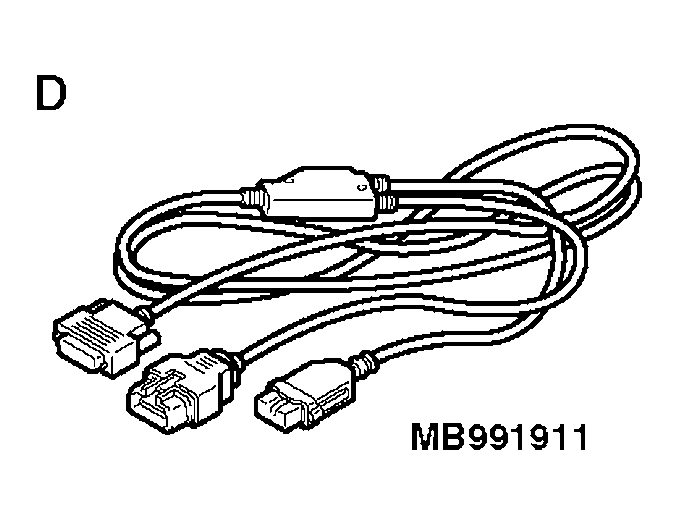

  4. : MB991911

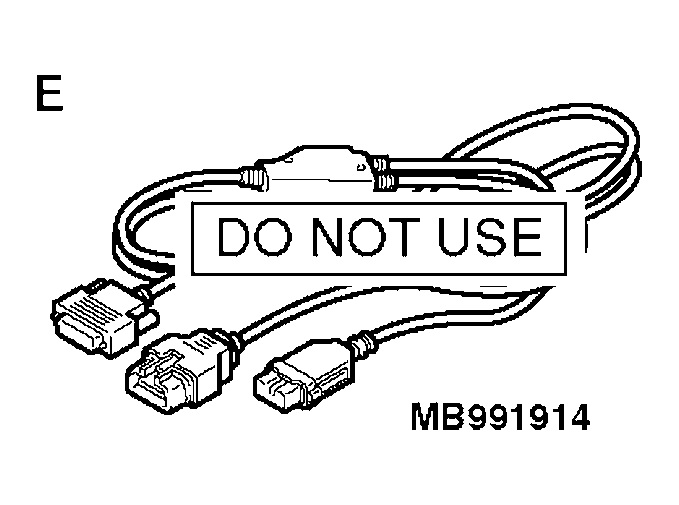

  5. : MB991914

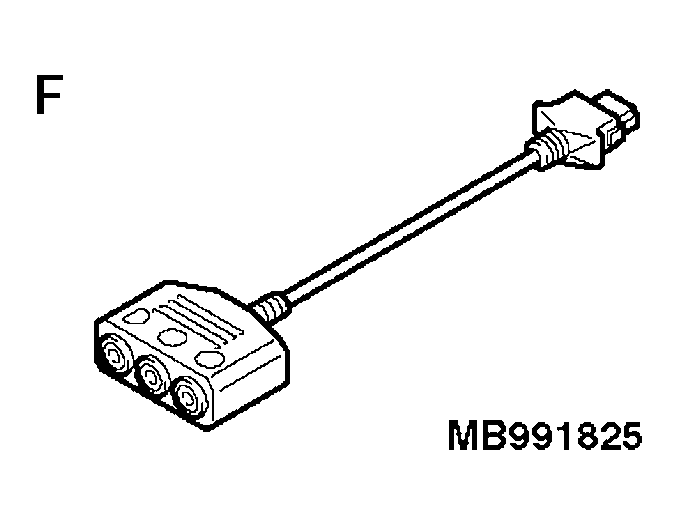

  6. : MB991825

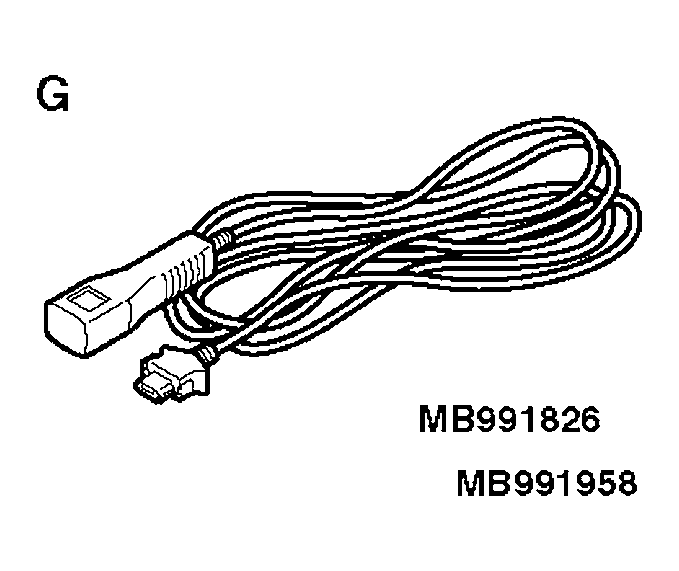

  7. : MB991826

MUT-III sub assembly
  1. : Vehicle communication interface (V.C.I.)
  2. : MUT-III USB cable
  3. : MUT-III main harness A (Vehicles with CAN communication system)
  4. : MUT-III main harness B (Vehicles without CAN communication system)
  5. : MUT-III main harness C (for Daimler Chrysler models only)
  6. : MUT-III measurement adapter
  7. : MUT-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 MUT-III trigger harness is not necessary when pushing V.C.I. ENTER key.
 SWS communication line check (ECU check and service data)
CAUTION: MUT-III main harness B (MB991911) should be used. MUT-III main harness A and C should not be used for this vehicle.
G04268233

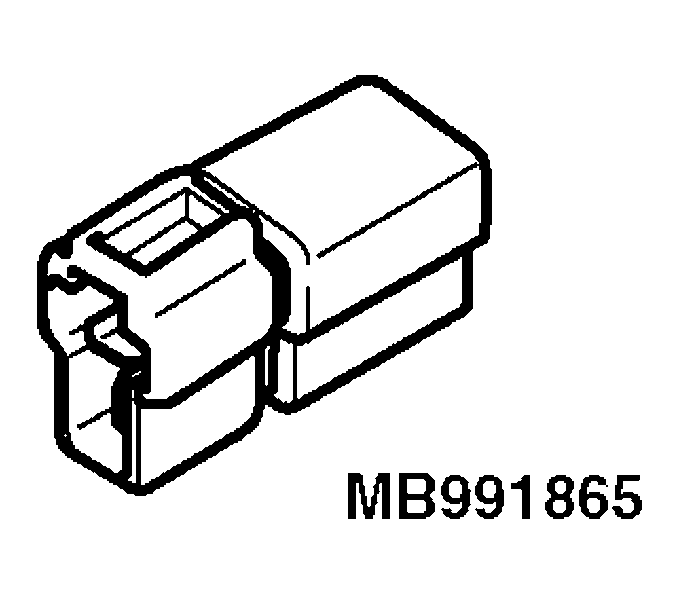

 MB991865 Dummy resistor   SRS air bag circuit check
G04268234

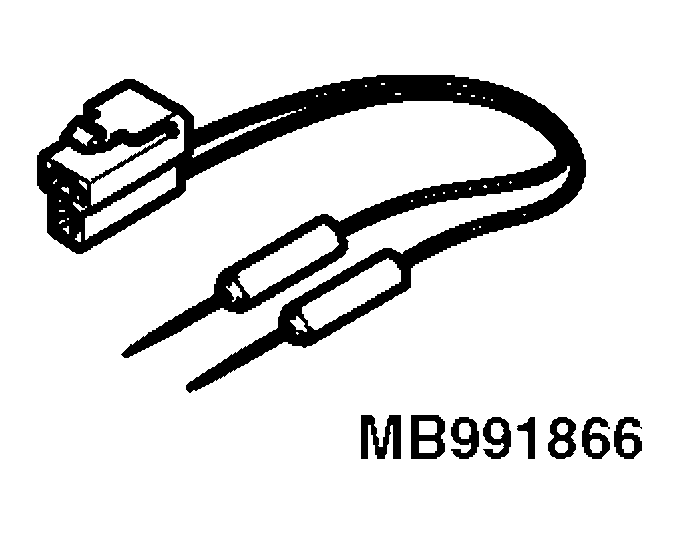

 MB991866 Resistor harness

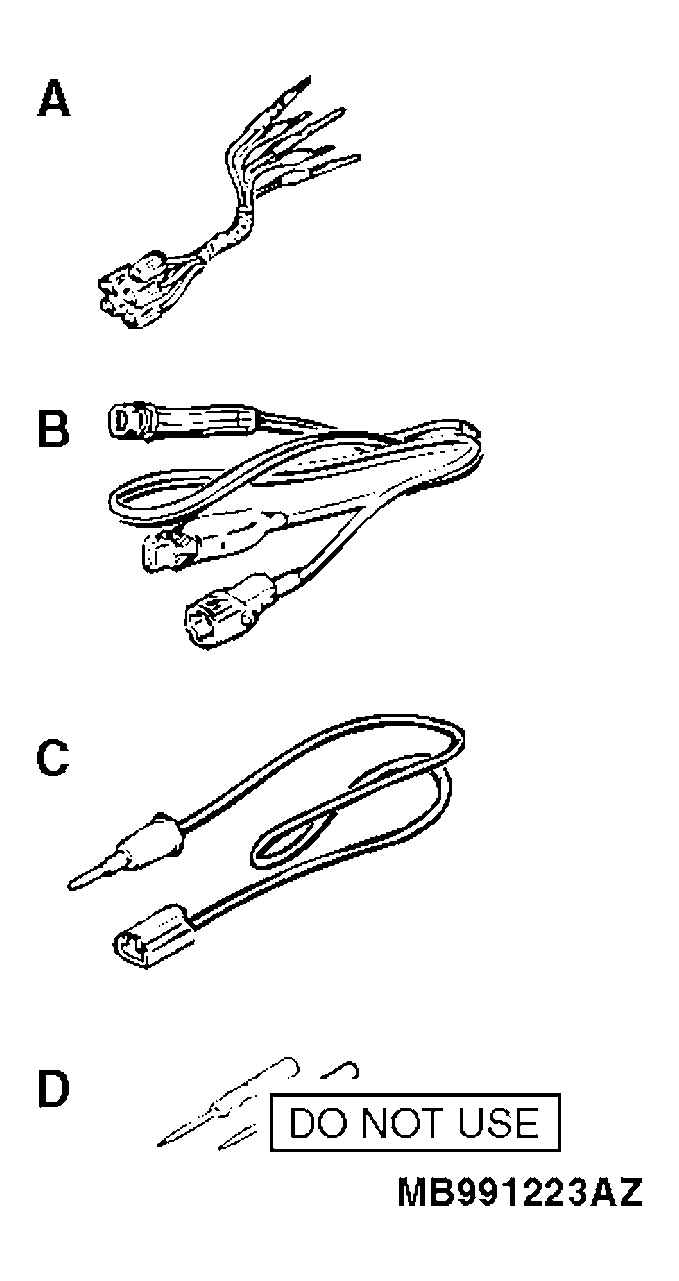

G04268235
 MB991223
  1. : MB991219
  2. : MB991220
  3. : MB991221
  4. : MB991222

Harness set
  1. : Test harness
  2. : LED harness
  3. : LED harness adapter
  4. : Probe
 General service tools Checking the continuity and measuring the voltage at the SRS-ECU harness connector
G04268236

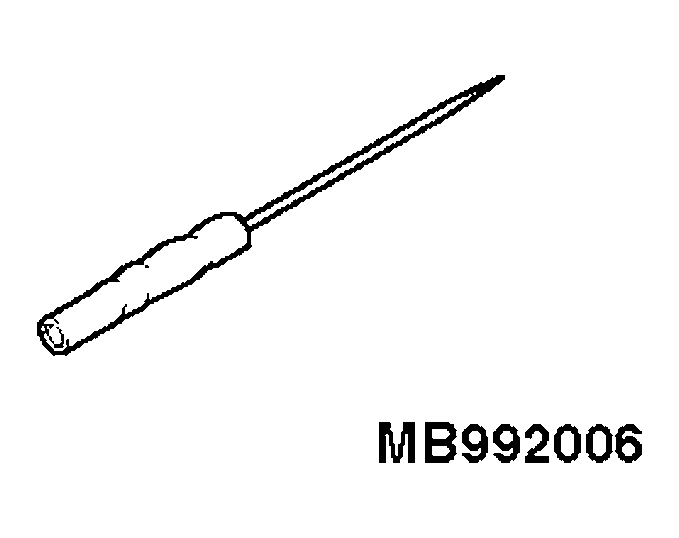

 MB992006 Extra fine probe   Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.

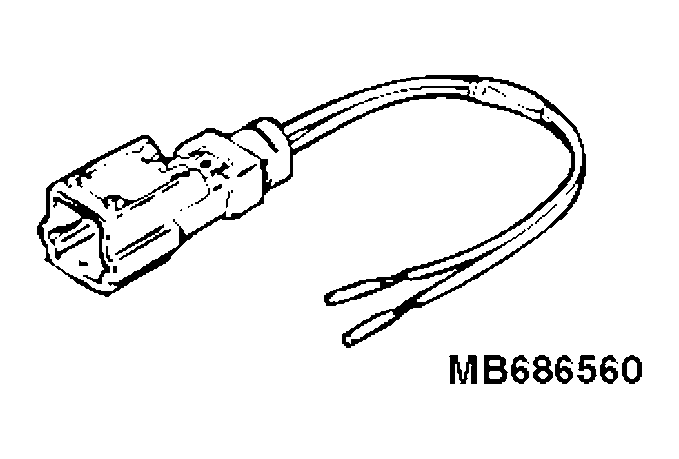

G04268237
 MB686560 SRS air bag adapter harness General service tool
  • Deployment of air bag module (Front passenger's side) inside the vehicle
  • Deployment of air bag module (Front passenger's side), seat belt with pre-tensioner outside the vehicle
