Removal And Installation: Notes

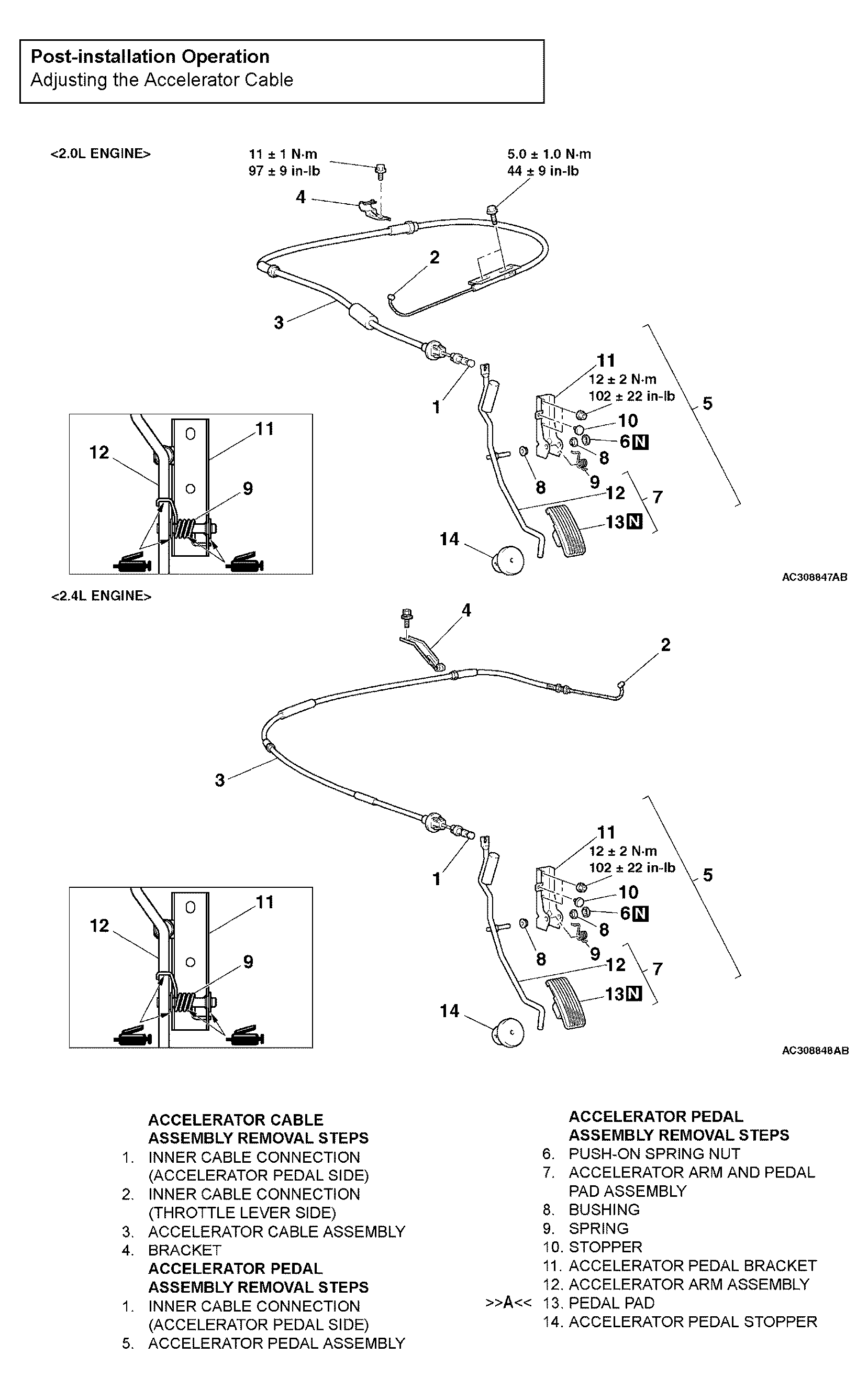

Fig 1: Removing/Installing Accelerator Cable And Pedal With Torque Specifications
G04273377Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
