Special Tools
SPECIAL TOOLS SPECIFICATIONS
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

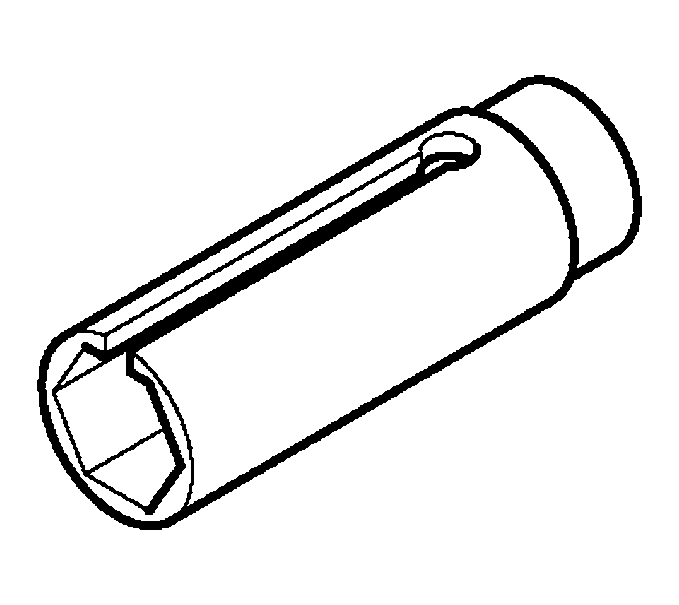

| MD998770 Oxygen sensor wrench |
MD998770-01 or General service tool | Removal/installation of heated oxygen sensor | |
| MB995061 Purge flow indicator |
MLR6890A Part of MIT280220 | Inspection of purge control system | |

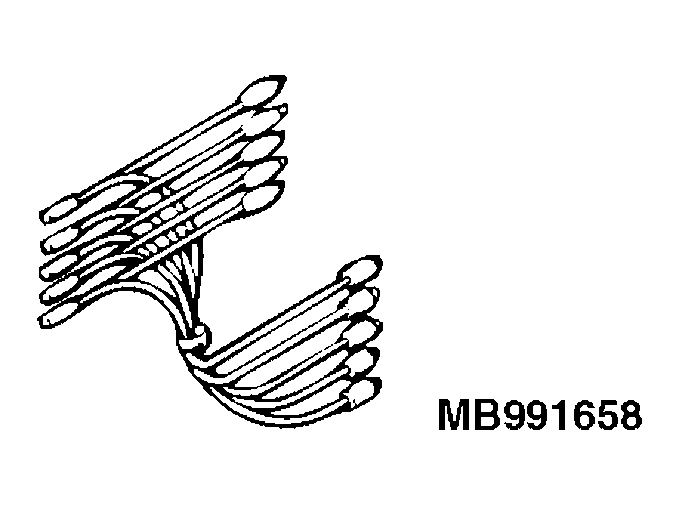

| MB991658 Test harness set |
Tool not available | Inspection of EGR valve (Stepper Motor) |
