Removal And Installation

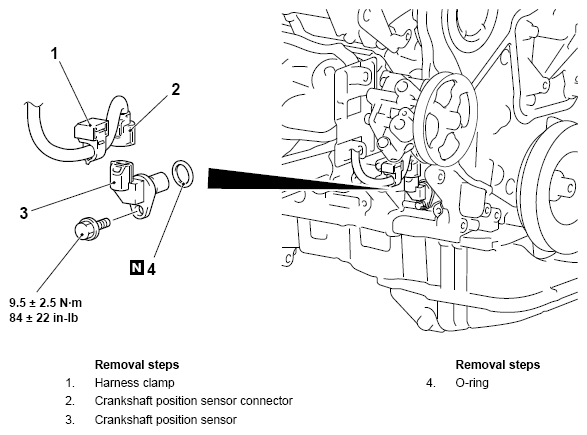

Fig 1: Identifying Crankshaft Position Sensor Removal / Installation Components
G04870976Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
