Removal And Installation

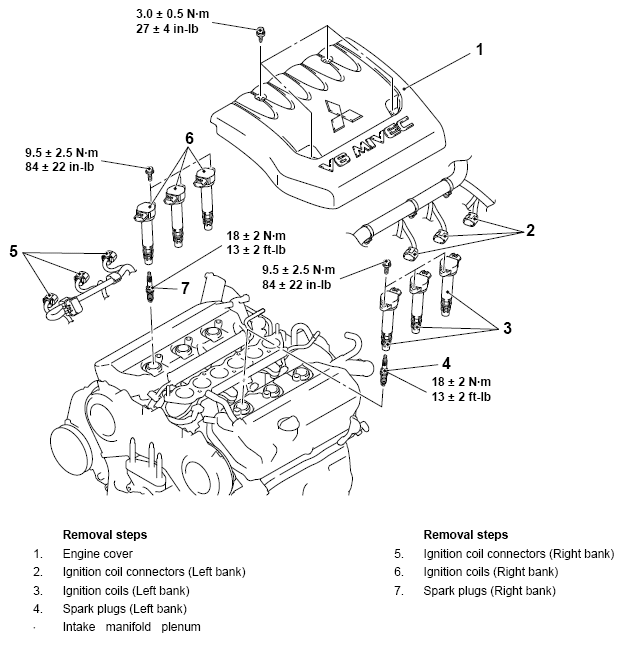

Fig 1: Identifying Ignition Coil Removal / Installation Components
G04870974Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
