Removal And Installation

CAUTION:
  • When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).
  • Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.

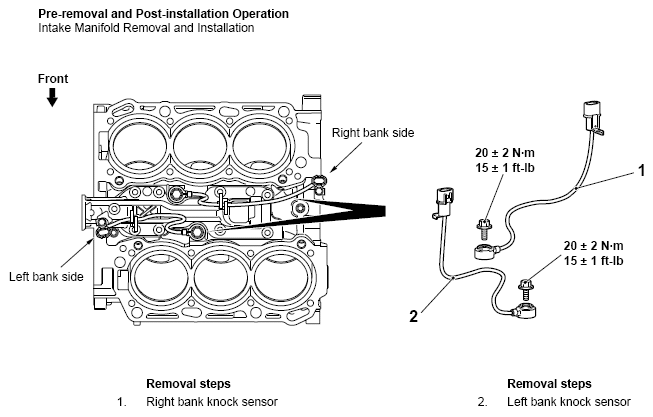

    Fig 1: Identifying Knock Sensor Removal / Installation Components
    G04870977Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
