Removal And Installation

Pre-removal and post-installation operation

• Bottom Cover (driver's side) Removal and Installation (Refer to INSTRUMENT LOWER PANEL ).

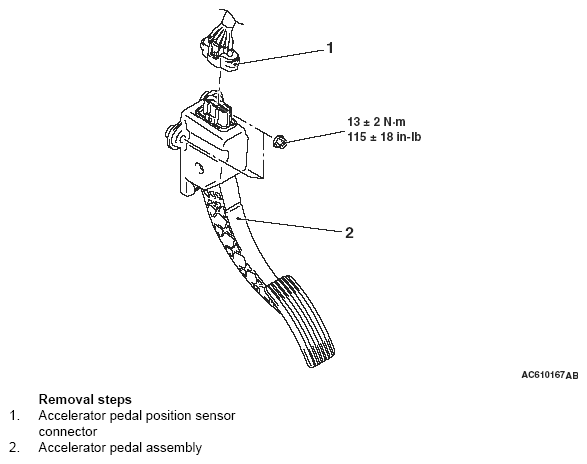

Fig 1: Accelerator Pedal And Accelerator Pedal Position Sensor Connector With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
