Ignition System - Lancer Evolution
>>
Ignition System
>>
General Information
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

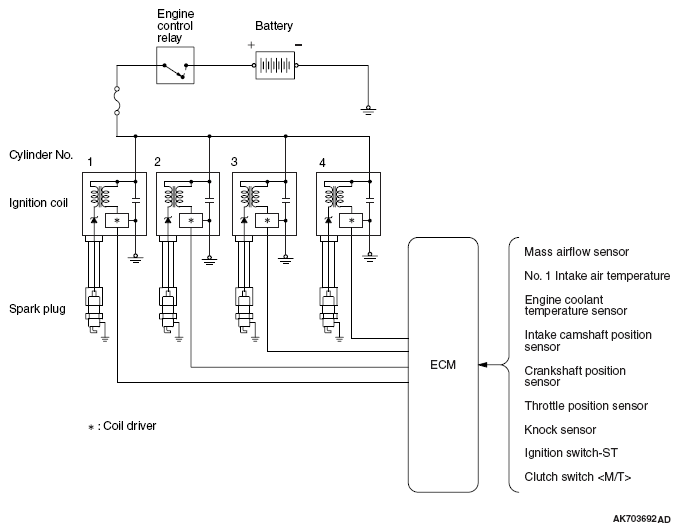

Fig 1: Ignition System Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
