Removal And Installation: Notes

CAUTION: When the knock sensor is replaced, initialize the learned value using scan tool (Refer to INITIALIZATION PROCEDURE ).

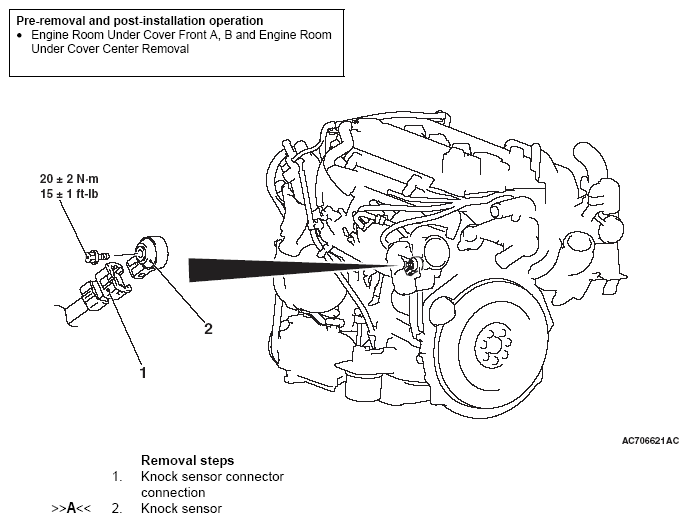

Fig 1: Knock Sensor Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
