Removal And Installation

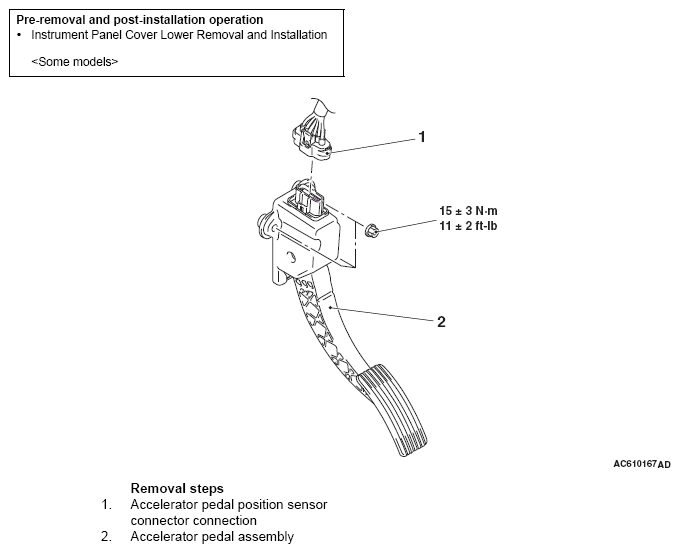

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
G05903717Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
