Downshift Pattern <5A/T>

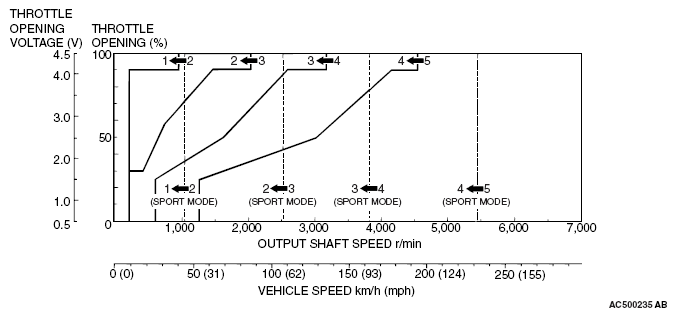

Fig 1: Downshift Pattern - 5A/T
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
